Changing Front Final Drive Oil: Filling

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the filler plug and gasket. Fill with new gear oil until the oil level reaches the specified level near the filler plug hole.

    Oil grade and Capacity : Refer to " FLUIDS AND LUBRICANTS  ".

  2. After refilling oil, check the oil level. Install the filler plug with a new gasket on it to the final drive assembly. Tighten to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse gasket.

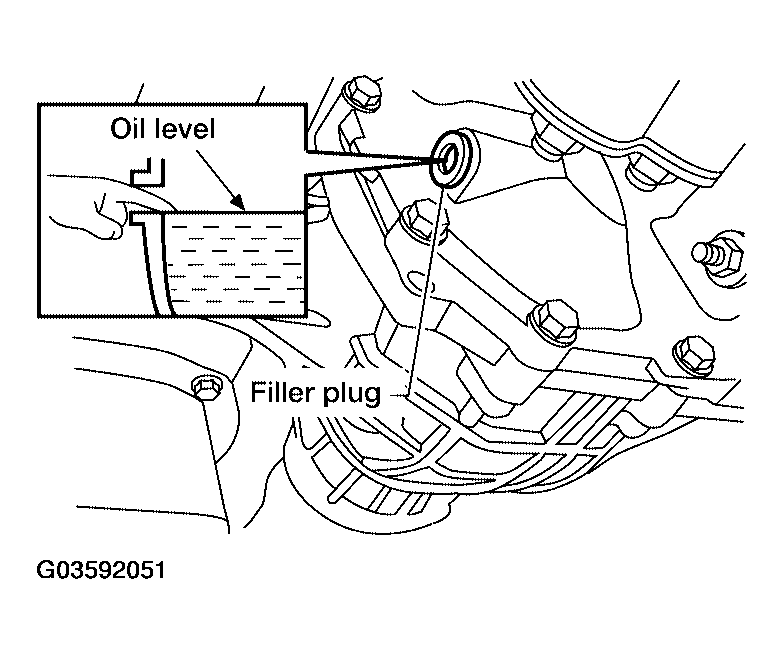

    Fig 1: Checking Front Final Drive Oil Level Through Filler Plug
    G03592051Courtesy of NISSAN MOTOR CO., U.S.A.
