Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column cover.
  2. Disconnect the lighting and turn signal switch connector.
  3. While pressing tabs, pull lighting and turn signal switch toward driver door and release from the steering column.

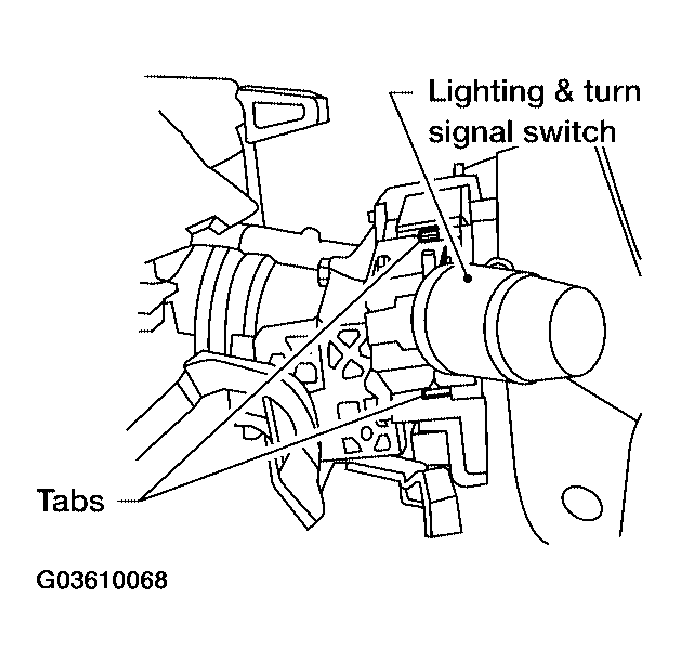

    Fig 1: Disconnecting Lighting And Turn Signal Switch Connector
    G03610068Courtesy of NISSAN MOTOR CO., U.S.A.
