WARNING: This page is about a different car, the 2003 Nissan Pathfinder and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

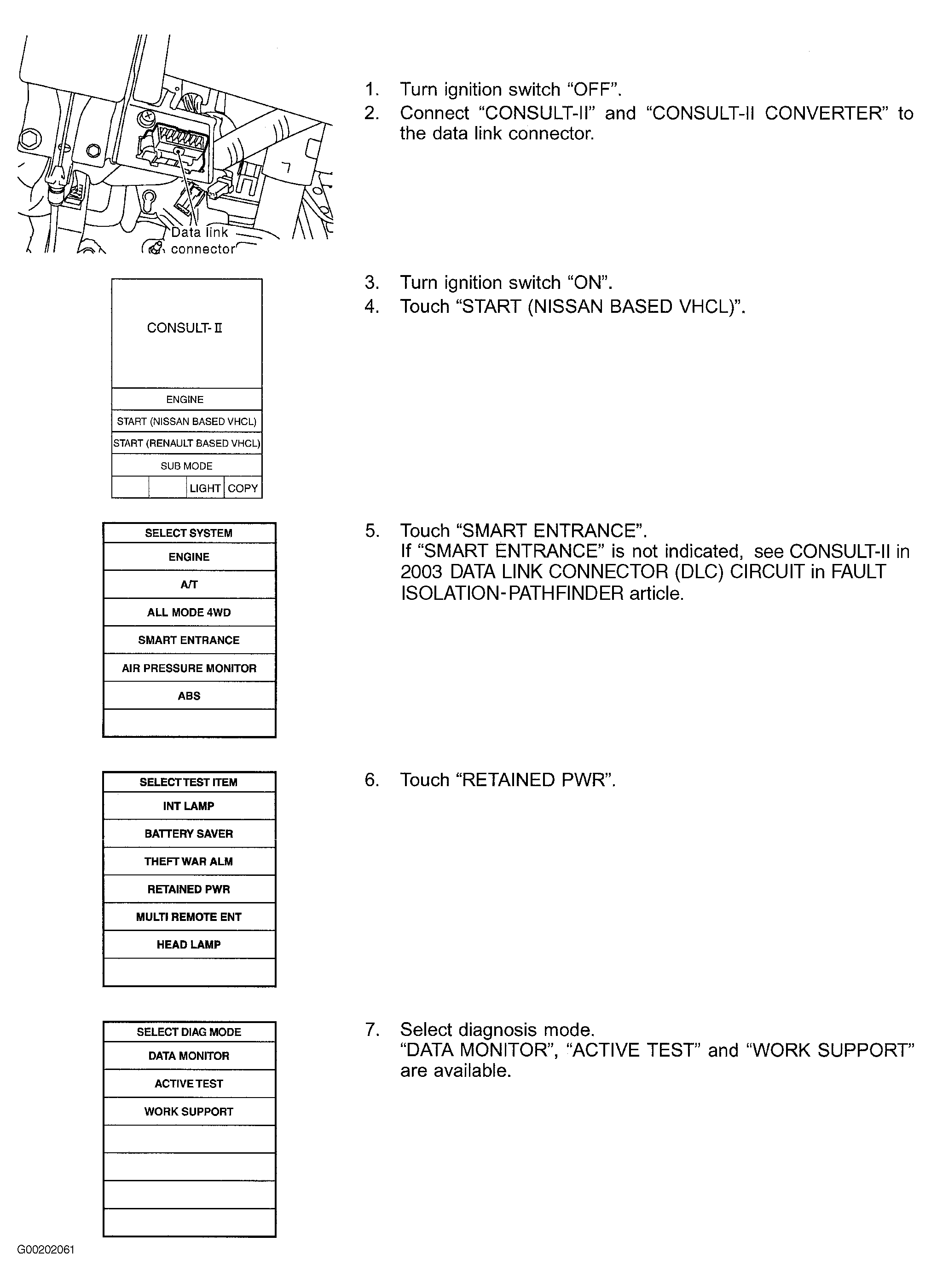

Fig 1: Performing CONSULT-II Inspection Procedure Retained Power (2002 Model)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Performing CONSULT-II Inspection Procedure Retained Power (2003 Model)
