Inspection and Adjustment: Inspection
WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

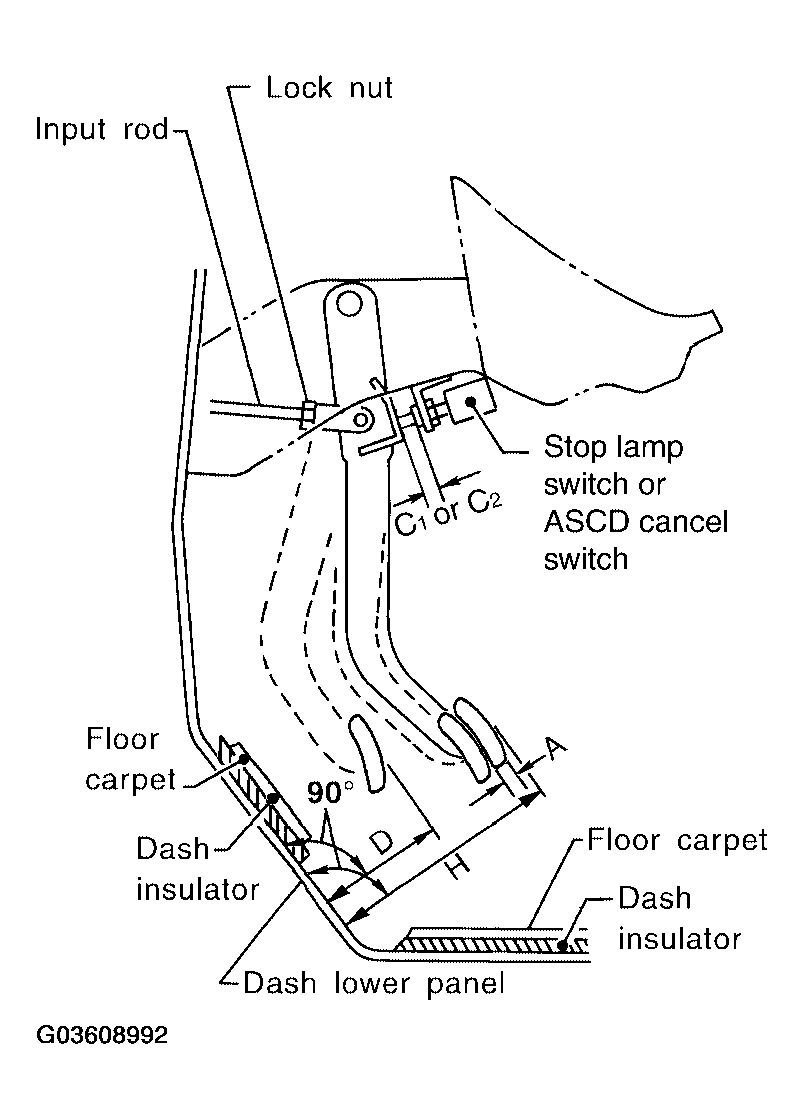

- Inspect the brake pedal free height "H" from dash lower panel using Tool.
Tool: - (J-46532)
- Adjust the height referring to the following specifications.CAUTION: The adjustable pedal must be in the frontmost (closest to the floor) position for pedal height measurement.
Unit: mm (in)
BRAKE PEDAL FREE HEIGHT
| Free height "H" | : 182.1 - 192.1 (7.17 - 7.56) |
| Depressed pedal height ("D" [under a force of 490 N (50 kg, 110 lb) with engine running] | : 105 - 115 (4.13 - 4.53) |
| Clearance between pedal stopper and threaded end of stop lamp switch and ASCD switch "C1" or "C2" | : 0.74 - 1.96 (0.029 - 0.077) |
| Pedal play "A" | : 3 - 11 (0.12 - 0.43) |
