All Items, Main Items, Selection From Menu

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

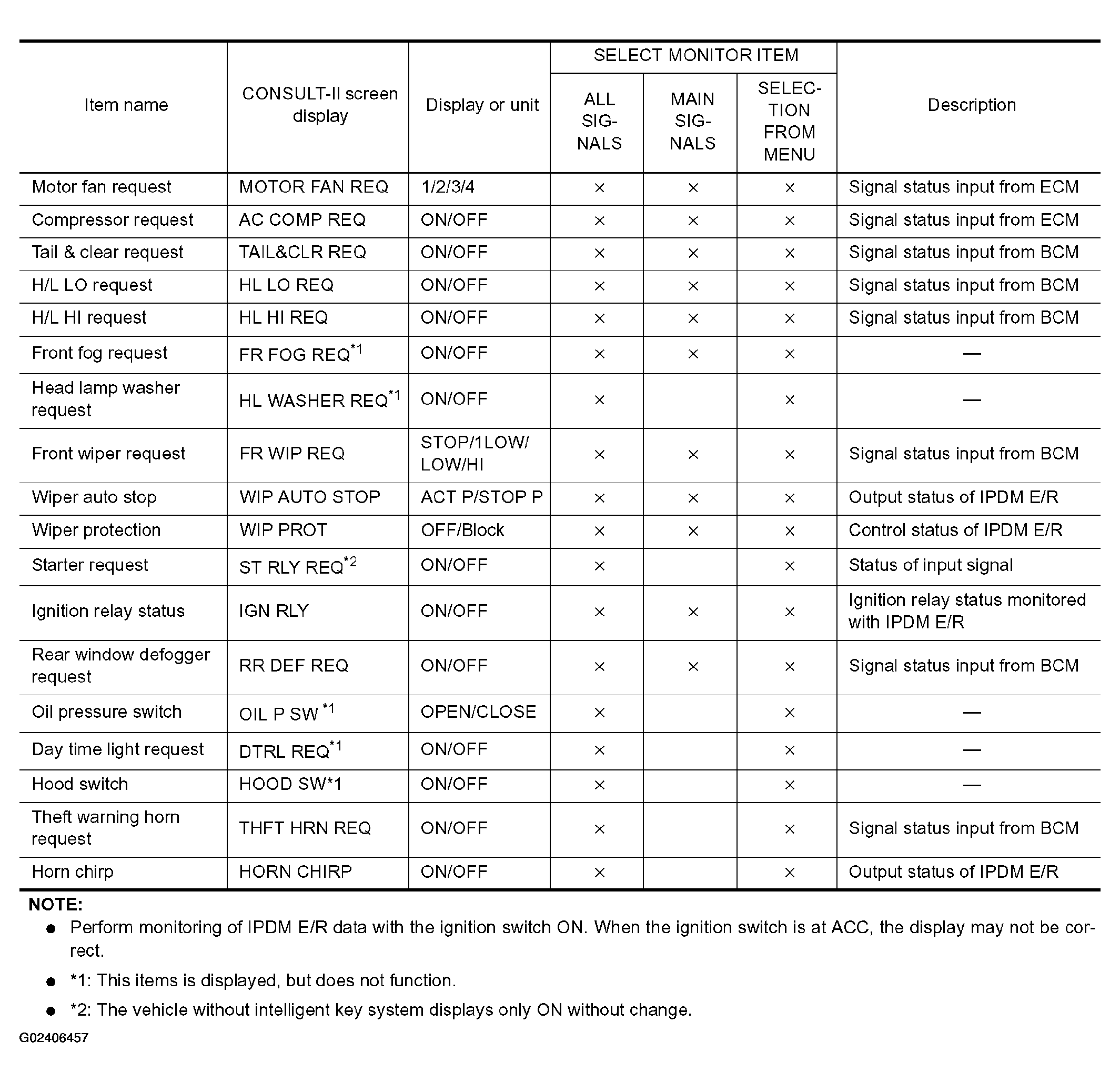

Fig 1: All Items, Main Items, Selection Menu
G02406457Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is at ACC, the display may not be correct.
  • *1: This items is displayed, but does not function.
  • *2: The vehicle without intelligent key system displays only ON without change.
