How To Read Harness Layout: Notes

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

The following Harness Layouts use a map style grid to help locate connectors on the figures:

Main Harness
Engine Room Harness (Engine Compartment)
Engine Control Harness
Body Harness
Tail Harness

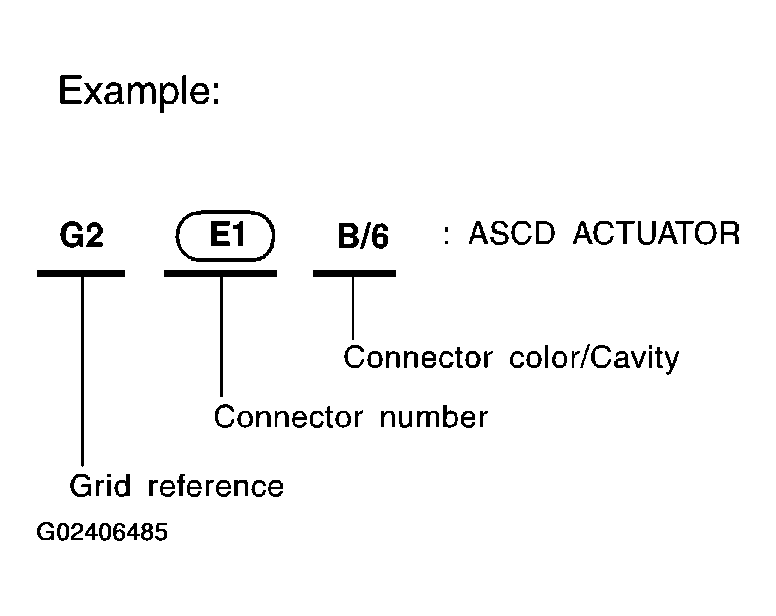

Fig 1: Example How To Read Harness Layout
Courtesy of NISSAN MOTOR CO., U.S.A.
