Removal and Installation of Hood Lock Control: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fender protector (LH). Refer to "FENDER PROTECTOR ".
  2. Remove the hood lock assembly.
    Fig 1: Removing Fender Protector (LH)
    G02402252Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the dash side finisher. Refer to "COMPONENT PARTS DRAWING ".
  4. Remove hood lock cable and unclip it from portion of radiator core support.
  5. While pulling the hood lock cable, remove hood lock cable connected to hood opener handle.
  6. Remove grommet on dash board, and pull hood lock cable toward passenger compartment.
    CAUTION: While pulling, be careful not to damage (peeling) the outside of the hood lock cable.

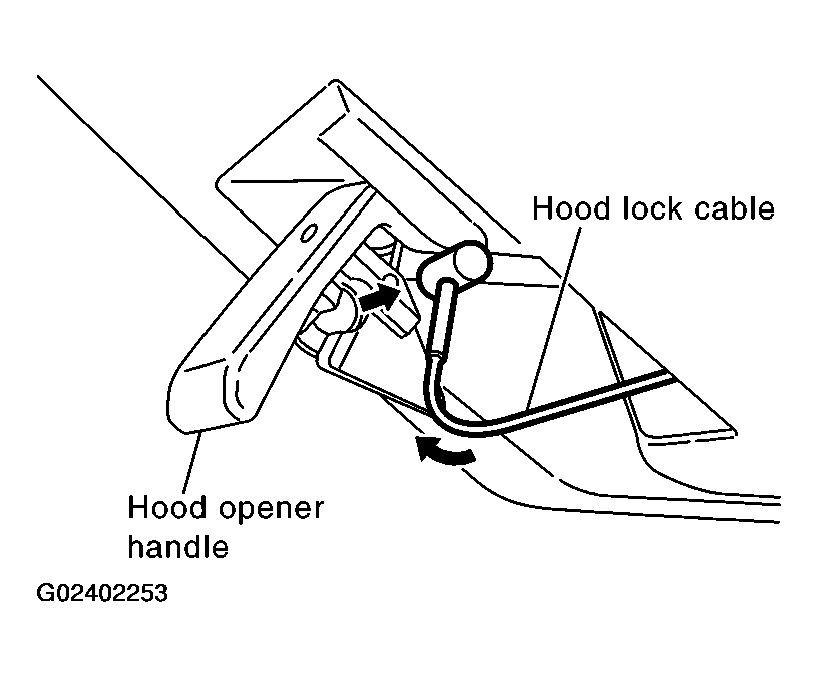

    Fig 2: Removing Hood Lock Cable Connected To Hood Opener Handle
    G02402253Courtesy of NISSAN MOTOR CO., U.S.A.
