HOODLEDGE (Roadster)

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

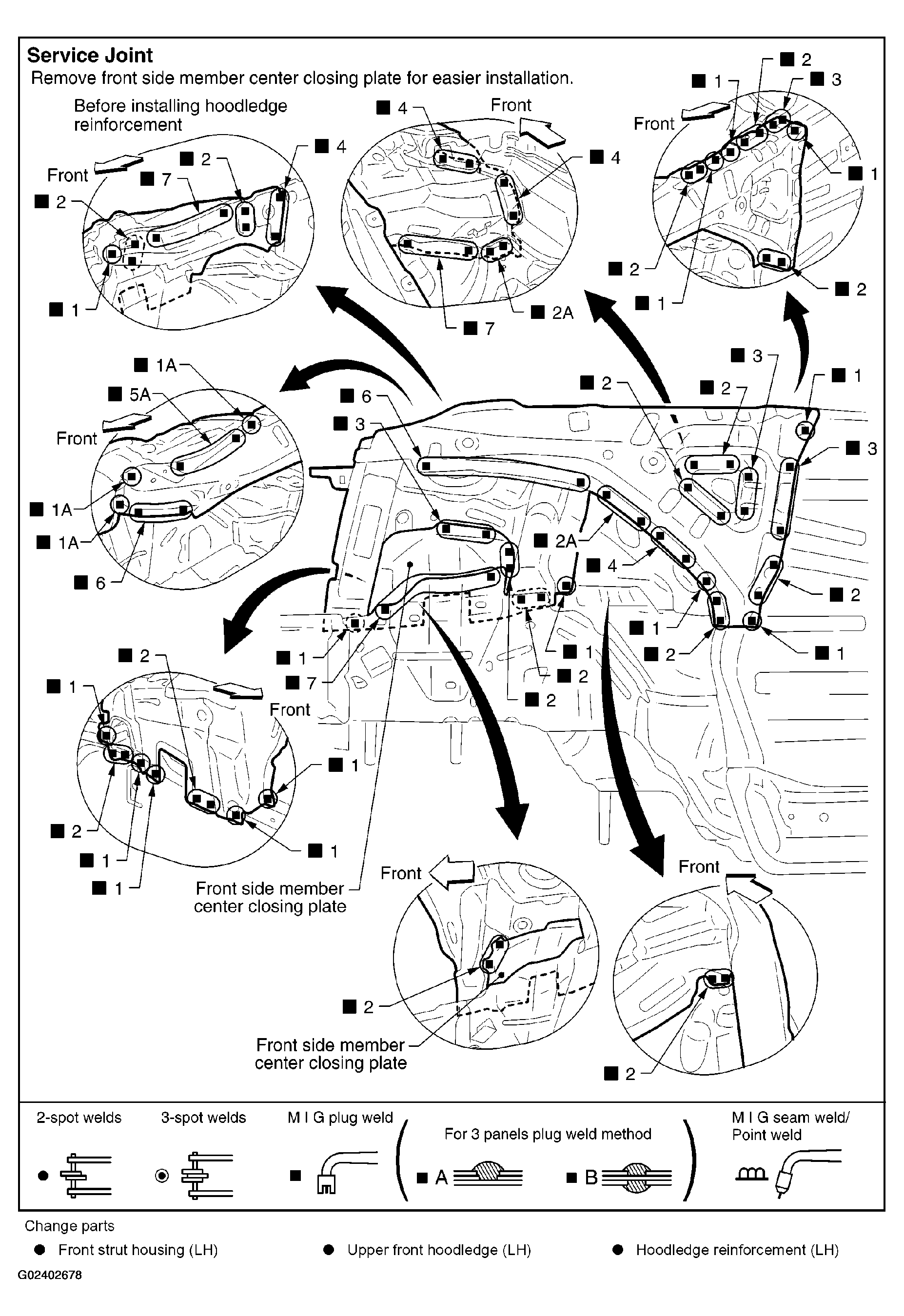

Fig 1: Hoodledge Service Joint (Roadster)
G02402678Courtesy of NISSAN MOTOR CO., U.S.A.
