All Signals, Main Signals, Selection From Menu

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

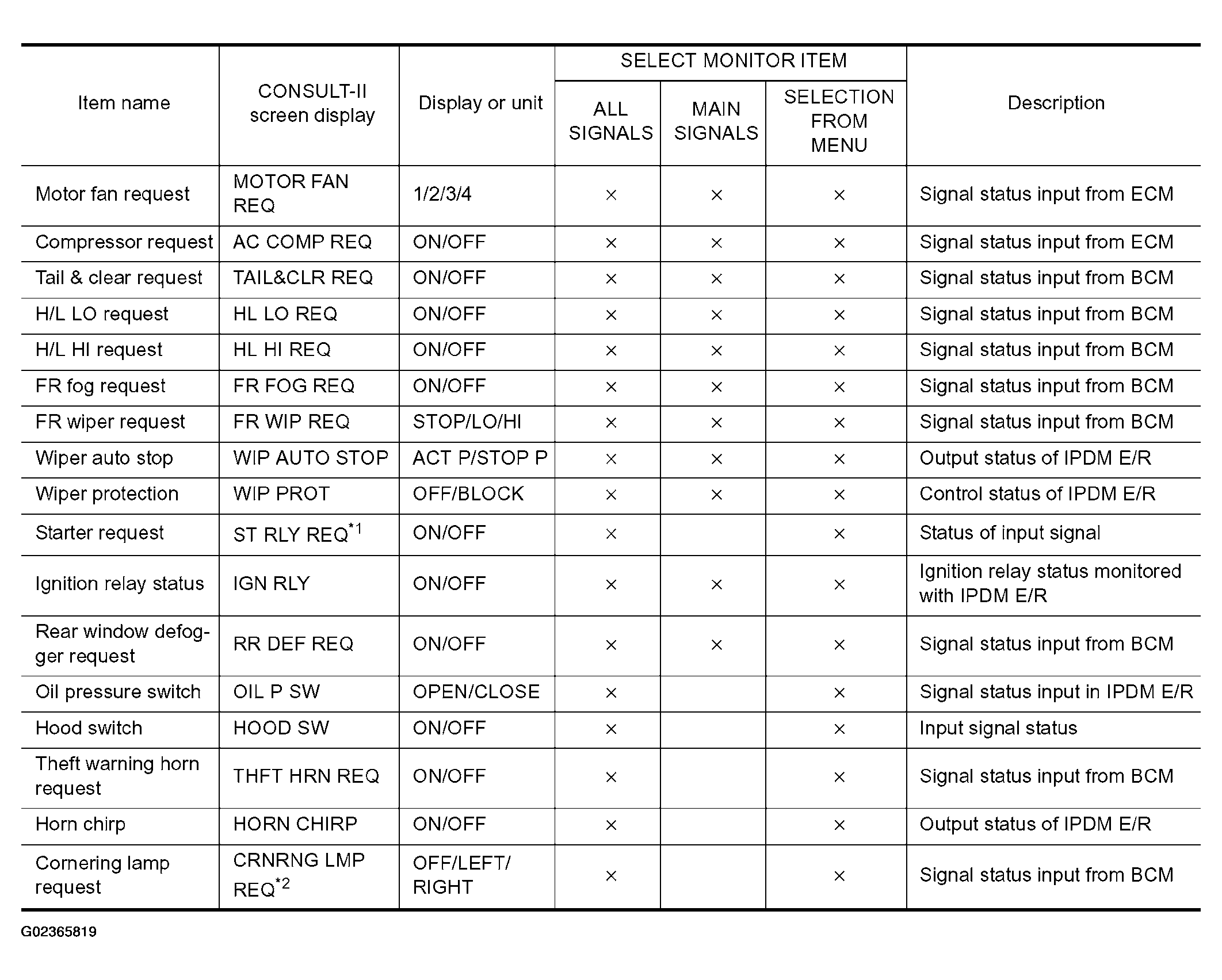

Fig 1: All Signals, Main Signals, Selection From Menu Description
G02365819Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is at ACC, the display may not be correct.
  • *1: The vehicle without the Intelligent Key system displays only ON without change.
  • *2:The cornering lamp item is displayed, but it cannot be monitored.
