Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove hoodledge cover (right).

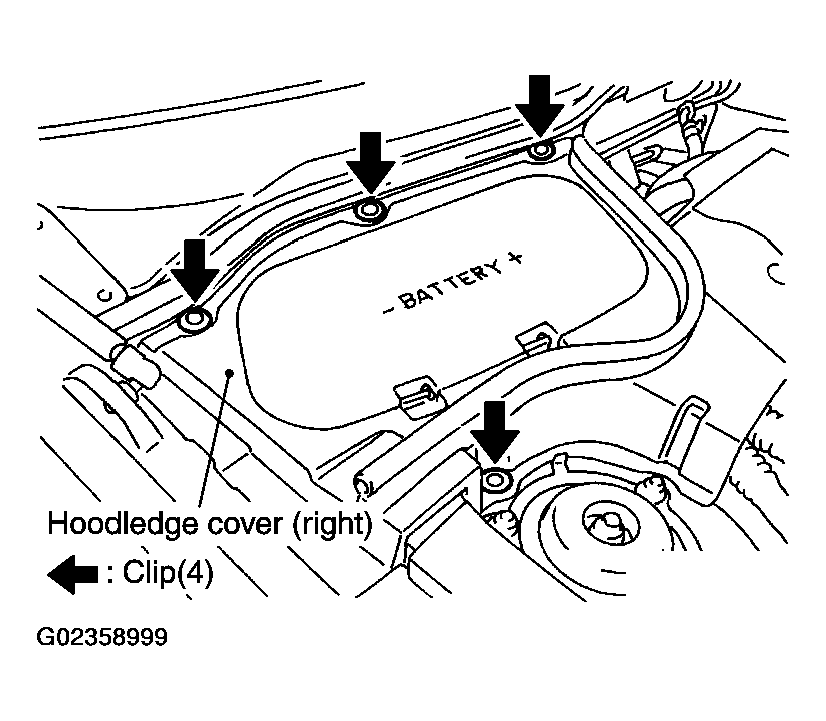

    Fig 1: Removing Hoodledge Cover
    G02358999Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Disconnect both battery cables from terminals.
    CAUTION: When disconnecting, disconnect the battery cable from the negative terminal first.
  3. Remove battery fix frame mounting nuts and battery fix frame.
  4. Remove relay box from bracket.
  5. Remove battery.

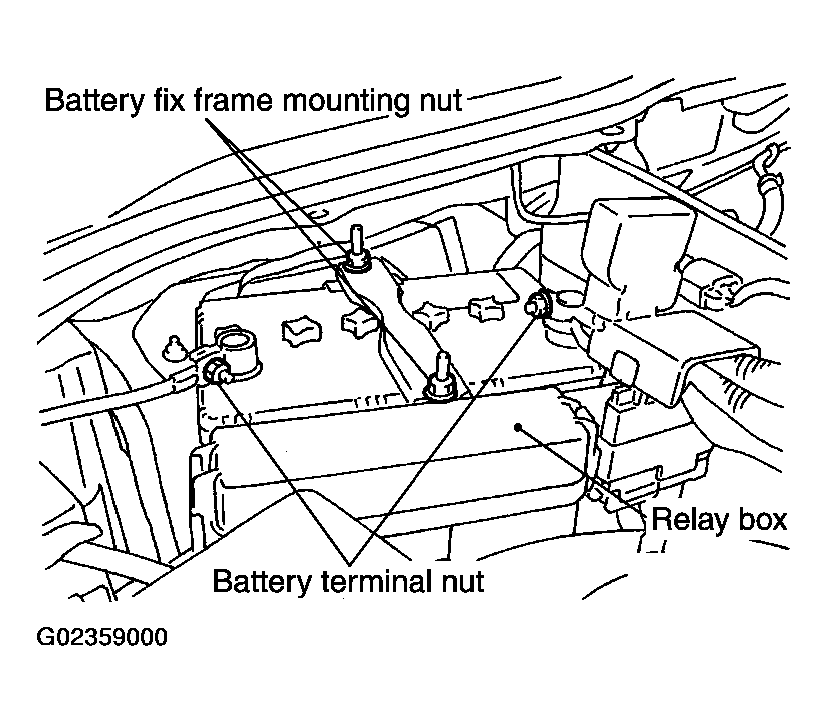

    Fig 2: Removing Battery Fix Frame Mounting Nuts
    G02359000Courtesy of NISSAN MOTOR CO., U.S.A.
