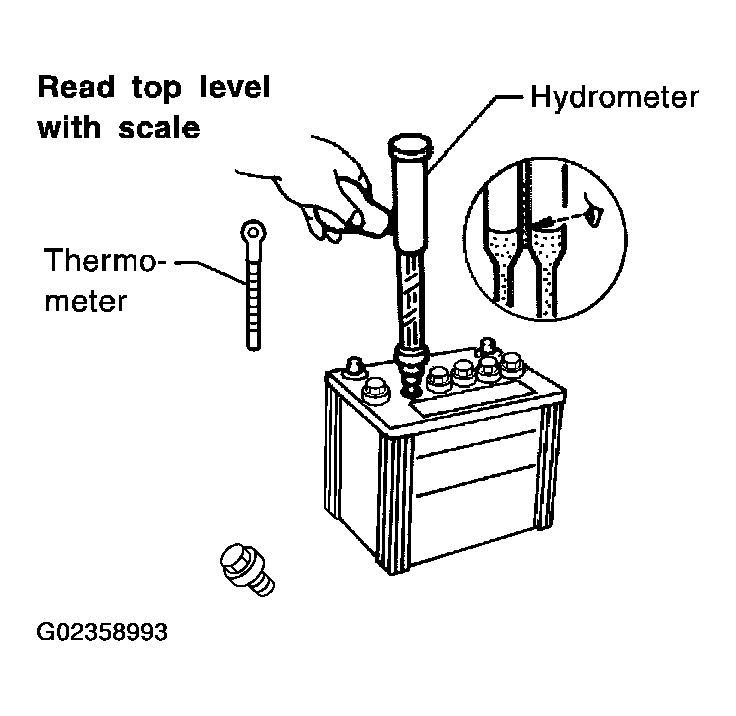

Hydrometer Temperature Correction
WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
BATTERY ELECTROLYTE TEMPERATURE CHART
| Battery electrolyte temperature °C (°F) | Add to specific gravity reading |
|---|---|
| 71 (160) | 0.032 |
| 66 (150) | 0.028 |
| 60 (140) | 0.024 |
| 54 (130) | 0.020 |
| 49 (120) | 0.016 |
| 43 (110) | 0.012 |
| 38 (100) | 0.008 |
| 32 (90) | 0.004 |
| 27 (80) | 0 |
| 21 (70) | -0.004 |
| 16 (60) | -0.008 |
| 10 (50) | -0.012 |
| 4 (40) | -0.016 |
| -1 (30) | -0.020 |
| -7 (20) | -0.024 |
| -12 (10) | -0.028 |
| -18 (0) | -0.032 |
SPECIFIC GRAVITY CHART
| Corrected specific gravity | Approximate charge condition |
|---|---|
| 1.260-1.280 | Fully charged |
| 1.230-1.250 | 3/4 charged |
| 1.200-1.220 | 1/2 charged |
| 1.170-1.190 | 1/4 charged |
| 1.140-1.160 | Almost discharged |
| 1.110-1.130 | Completely discharged |
