Checking Temperature Decrease

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press temperature (DOWN) switch (driver side) until 18°C (60°F) is displayed.
  2. Check for cold air at discharge air outlets.

If NG, go to trouble diagnosis procedure for "INSUFFICIENT COOLING ".

If OK, continue the check.

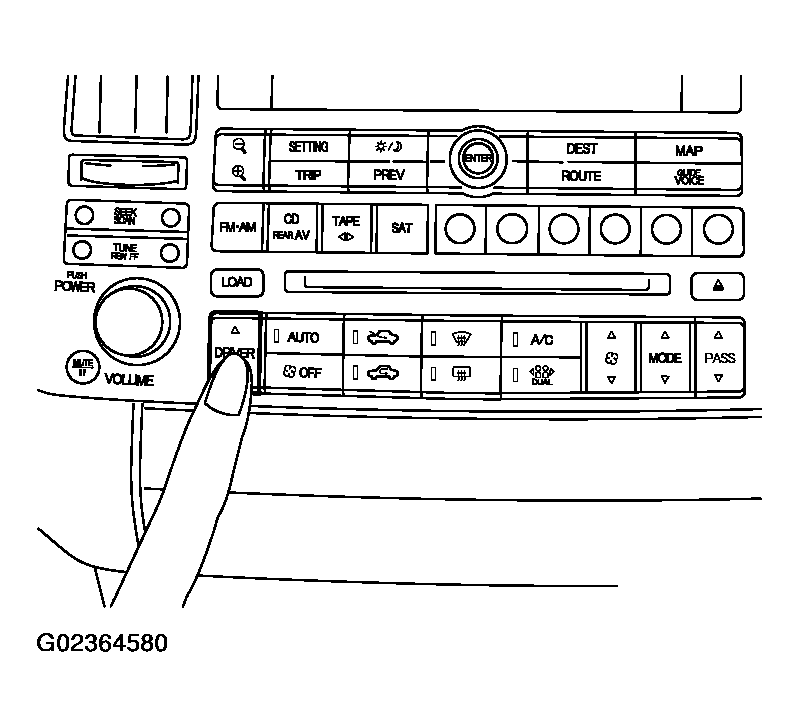

Fig 1: Pressing Temperature (Down) Switch (Driver Side)
G02364580Courtesy of NISSAN MOTOR CO., U.S.A.
