Check A/C Switch

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press AUTO switch and A/C switch.
  2. A/C switch indicator will turn ON.
    • Confirm that the compressor clutch engages (sound or visual inspection).

If NG, go to trouble diagnosis procedure for "MAGNET CLUTCH CIRCUIT ".

If OK, continue the check.

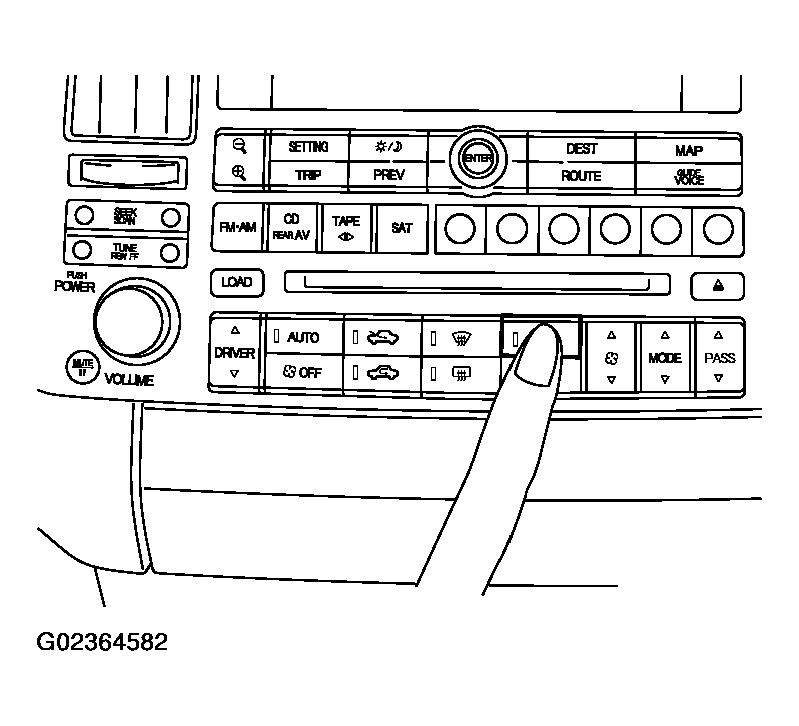

Fig 1: Pressing AUTO Switch
G02364582Courtesy of NISSAN MOTOR CO., U.S.A.
