In-Vehicle Sensor
WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

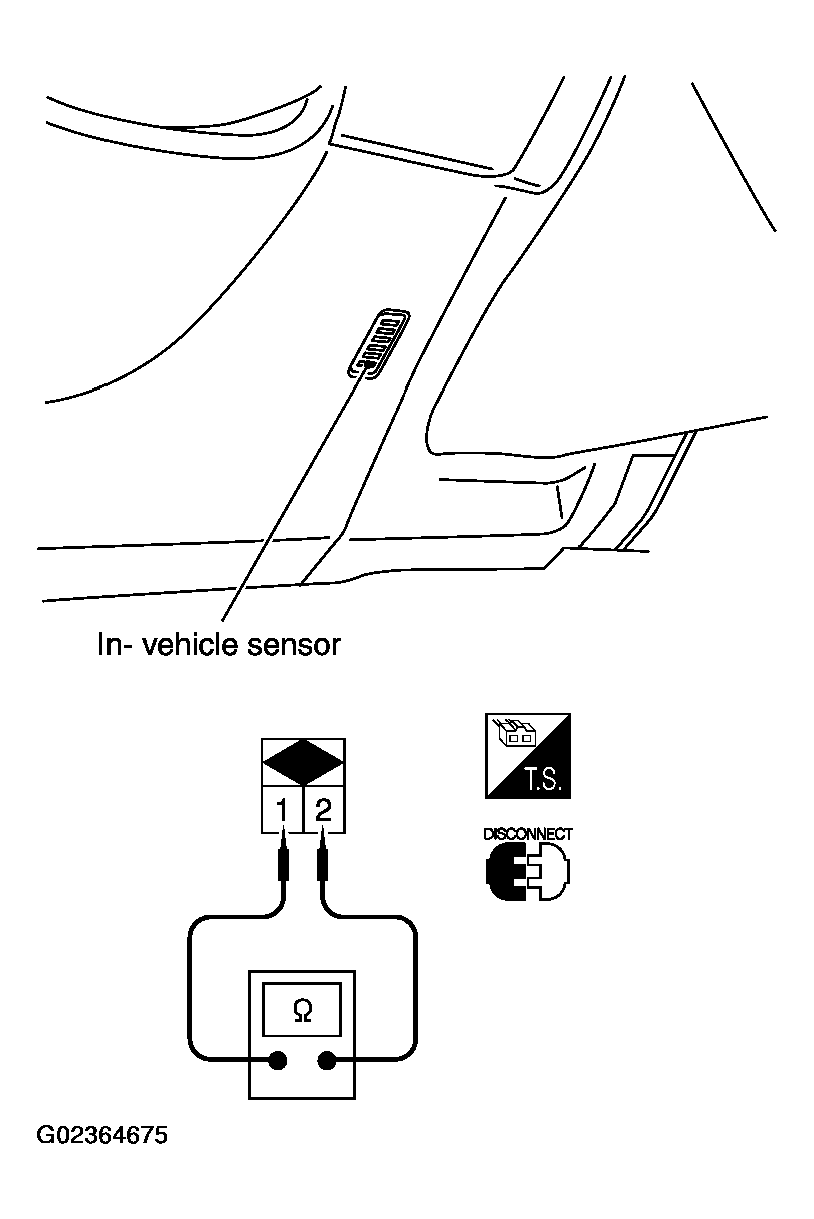

After disconnecting in-vehicle sensor connector M46, measure resistance between terminals 1 (BR/W) and 2 (W/G) at sensor side, using the table below.
TEMPERATURE CHART
| Temperature °C (°F) | Resistance kΩ |
|---|---|
| -15 (5) | 12.73 |
| -10 (14) | 9.92 |
| -5 (23) | 7.80 |
| 0 (32) | 6.19 |
| 5 (41) | 4.95 |
| 10 (50) | 3.99 |
| 15 (59) | 3.24 |
| 20 (68) | 2.65 |
| 25 (77) | 2.19 |
| 30 (86) | 1.81 |
| 35 (95) | 1.51 |
| 40 (104) | 1.27 |
| 45 (113) | 1.07 |
If NG, replace in-vehicle sensor.
