Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "AIR CONDITIONER" on "SELECT TEST ITEM" screen.

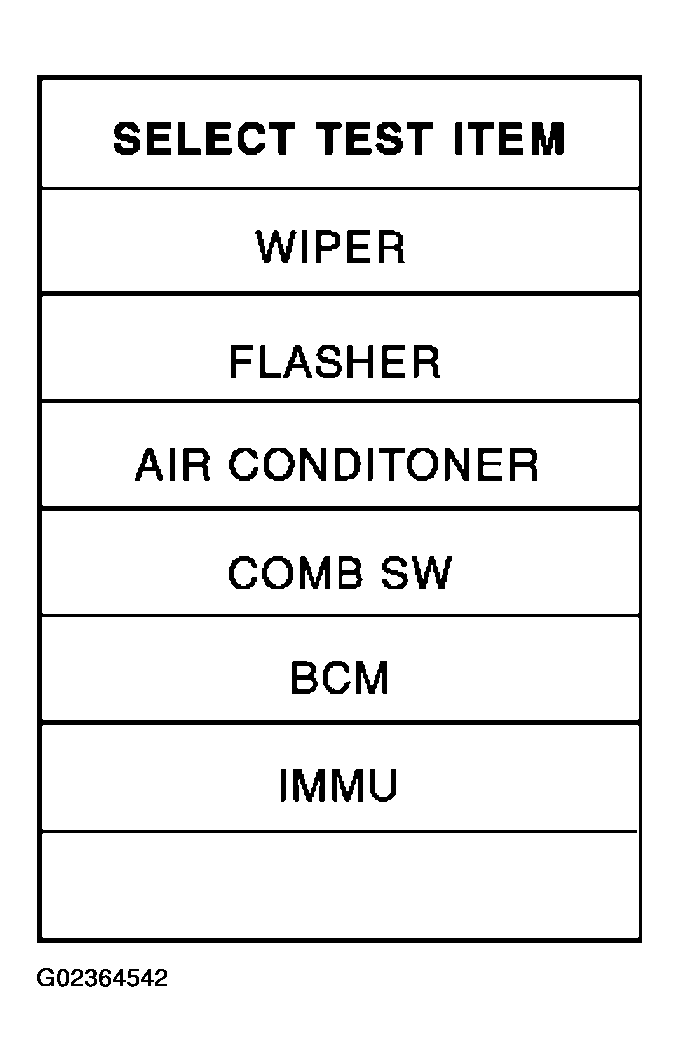

    Fig 1: CONSULT-II Diagnosis Function (3 Of 4)
    G02364542Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.

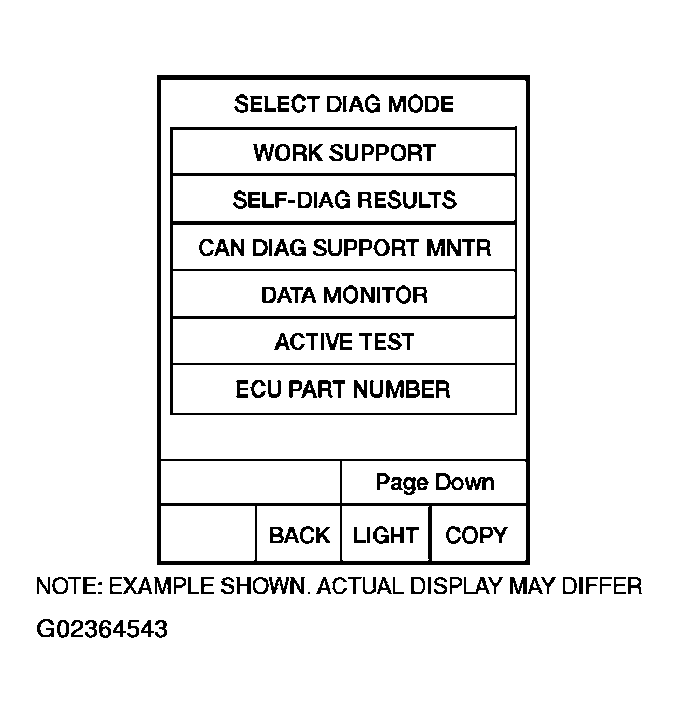

    Fig 2: CONSULT-II Diagnosis Function (4 Of 4)
    G02364543Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.
    DIAGNOSIS PROCEDURE

    All signals Monitors all the items.
    Selection from menu Selects and monitors the individual item selected.
  4. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is selected, all the items will be monitored.
  5. Touch "START".
  6. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".

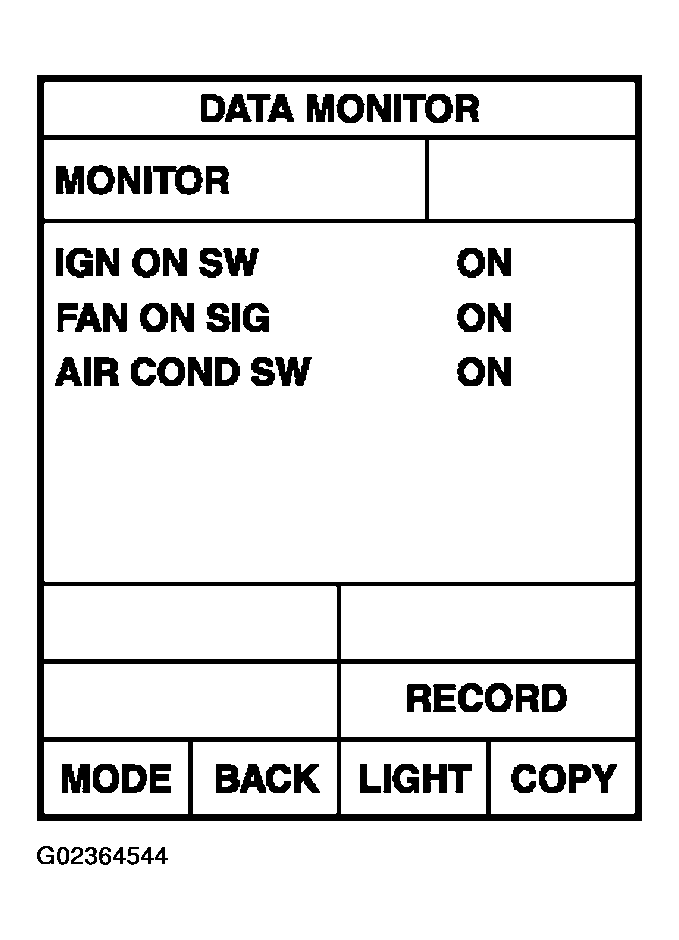

    Fig 3: Data Monitor Screen Display
    G02364544Courtesy of NISSAN MOTOR CO., U.S.A.
