Auto Amp. Terminals and Reference Value: Notes

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Measure voltage between each terminal and ground by following terminals and reference value for unified meter and A/C amp.

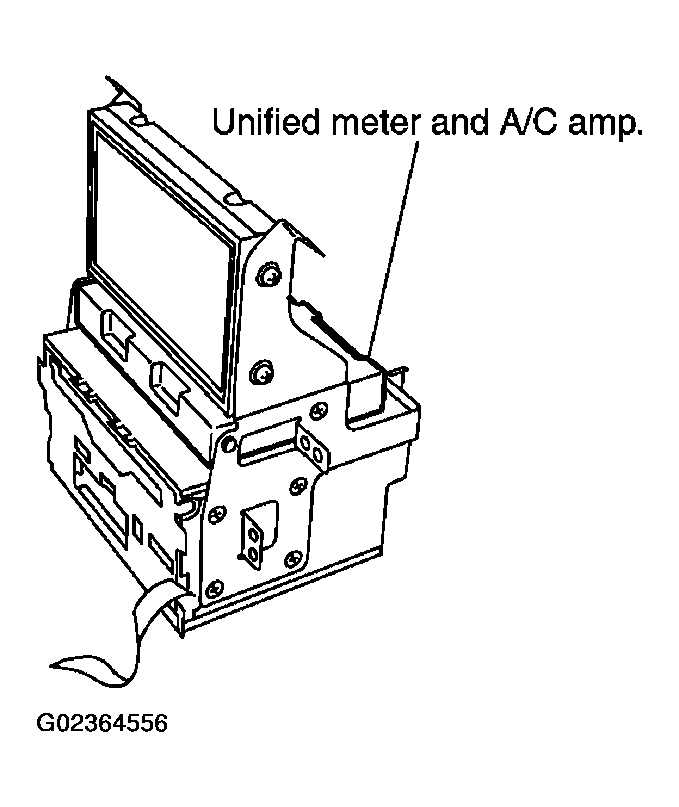

Fig 1: Identifying Unified Meter And A/C Amp
G02364556Courtesy of NISSAN MOTOR CO., U.S.A.
