Removal and Installation of Compressor Clutch: Installation: Notes

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

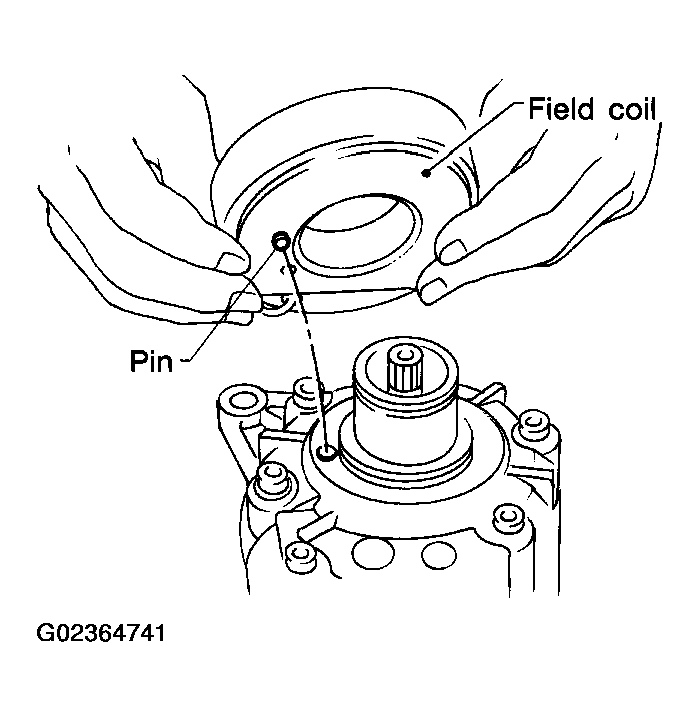

Install field coil.
Be sure to align coil's pin with hole in the compressor's front head.
Install the field coil harness clip using a screwdriver.

Fig 1: Installing Field Coil Harness Clip
Courtesy of NISSAN MOTOR CO., U.S.A.

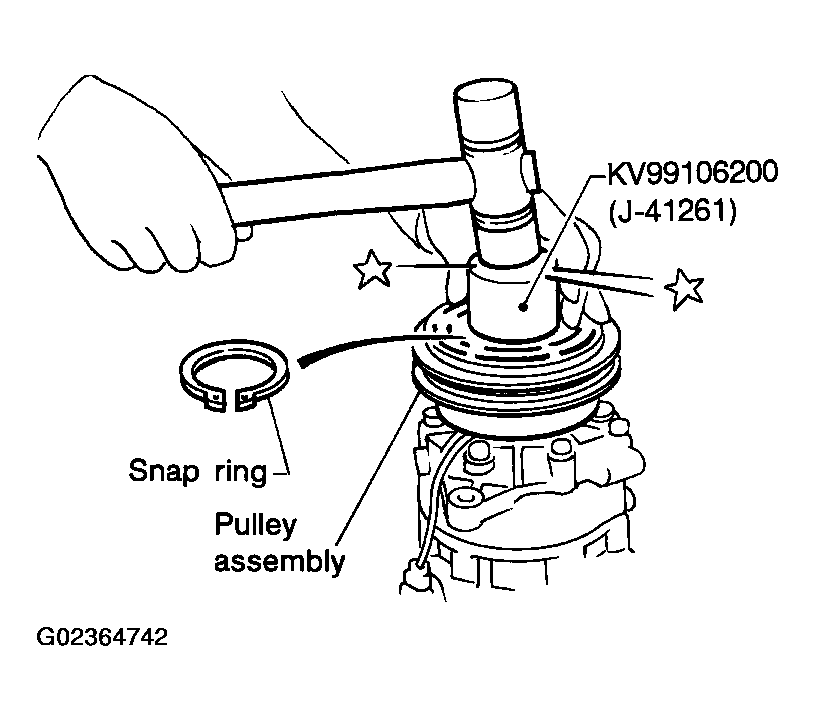

Install pulley assembly using installer and a hand press, and then install snap ring using snap ring pliers.

Fig 2: Installing Pulley Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

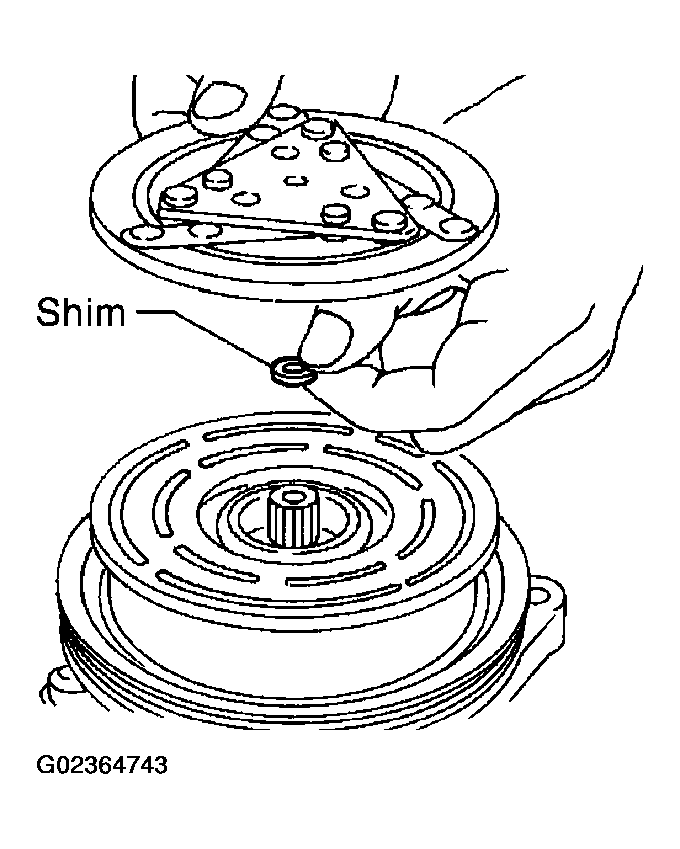

Install clutch disc on driveshaft, together with original shim(s). Press clutch disc down by hand.

Fig 3: Installing Clutch Disc On Driveshaft
Courtesy of NISSAN MOTOR CO., U.S.A.

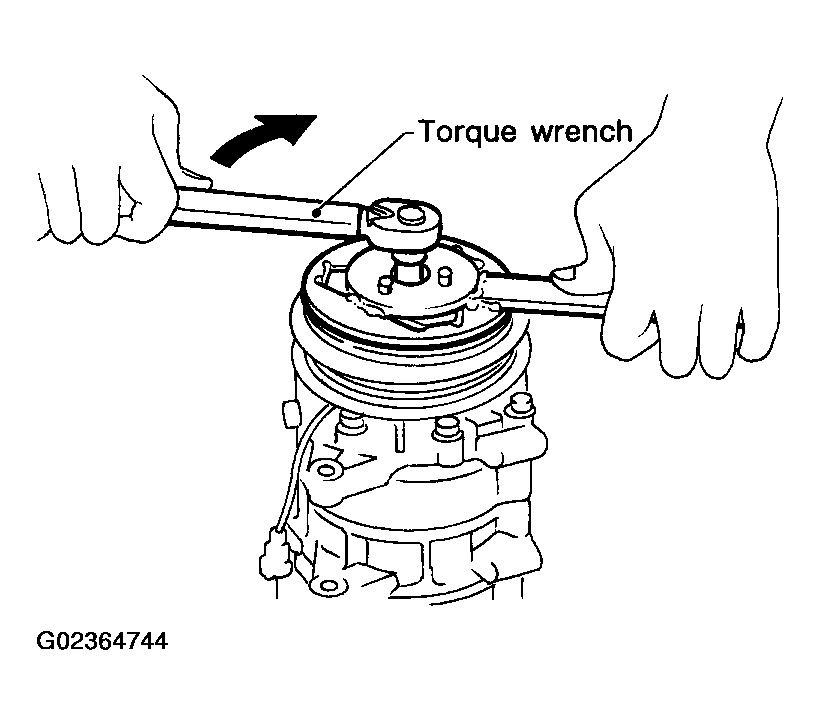

Using holder to prevent clutch disc rotation.
1. Tightening torque: 14 N.m (1.4 kg-m, 10 ft-lb)
After tightening bolt, make sure pulley rotates smoothly.

Fig 4: Tightening Center Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.

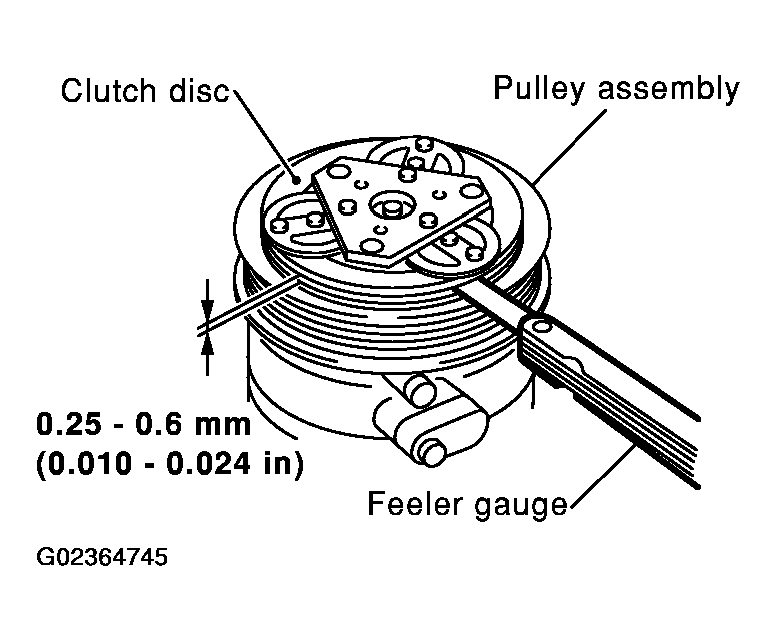

Check clearance around entire periphery of clutch disc.
1. Disc to pulley clearance: 0.25 - 0.6 mm (0.010 - 0.024 in)
If the specified clearance is not obtained, replace adjusting spacer and readjust.

Fig 5: Checking Clearance Around Of Clutch Disc
Courtesy of NISSAN MOTOR CO., U.S.A.
