Lubricant Adjusting Procedure For Components Replacement Except Compressor

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

After replacing any of the following major components, add the correct amount of lubricant to the system. Amount of lubricant to be added

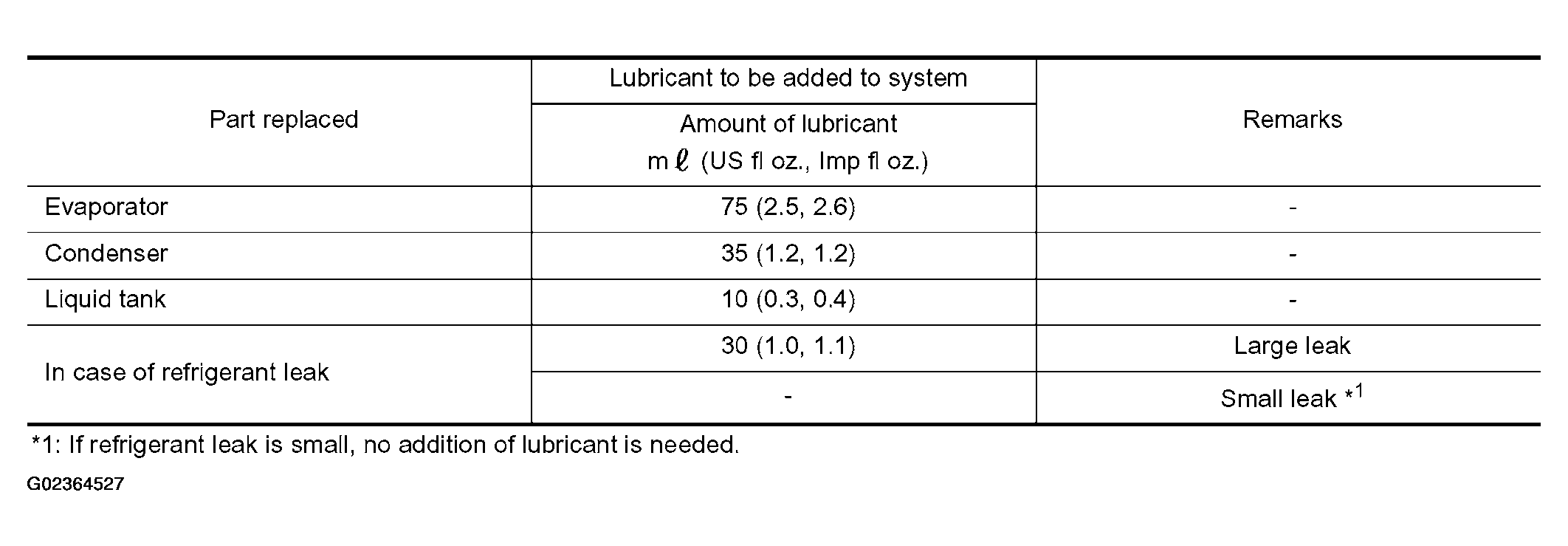

Fig 1: Part And Lubricant Table
G02364527Courtesy of NISSAN MOTOR CO., U.S.A.

*1: If refrigerant leak is small, no addition of lubricant is needed.
