Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument driver lower panel. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove mounting screw, and then remove in-vehicle sensor.

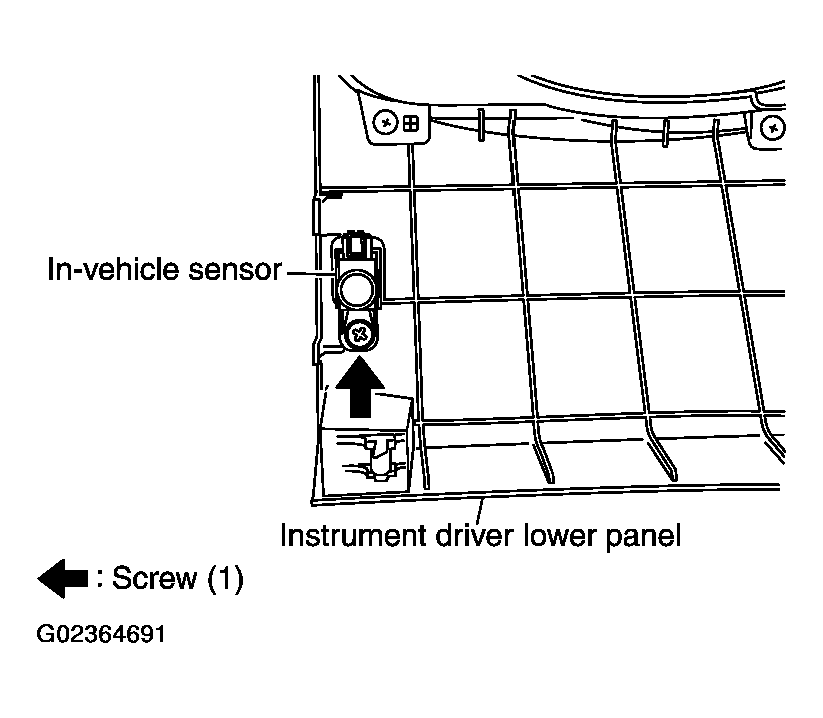

    Fig 1: Removing In-Vehicle Sensor
    G02364691Courtesy of NISSAN MOTOR CO., U.S.A.
