Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument passenger lower panel. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove mounting nuts, and then remove ECM with bracket attached.
  3. Disconnect intake door motor connector and blower fan motor connector.
  4. Remove harness clip from blower unit.
  5. Remove mounting bolt and screws from blower unit.
    CAUTION: Move blower unit rightward, and remove locating pin (1) and joint. Then remove blower unit downward.

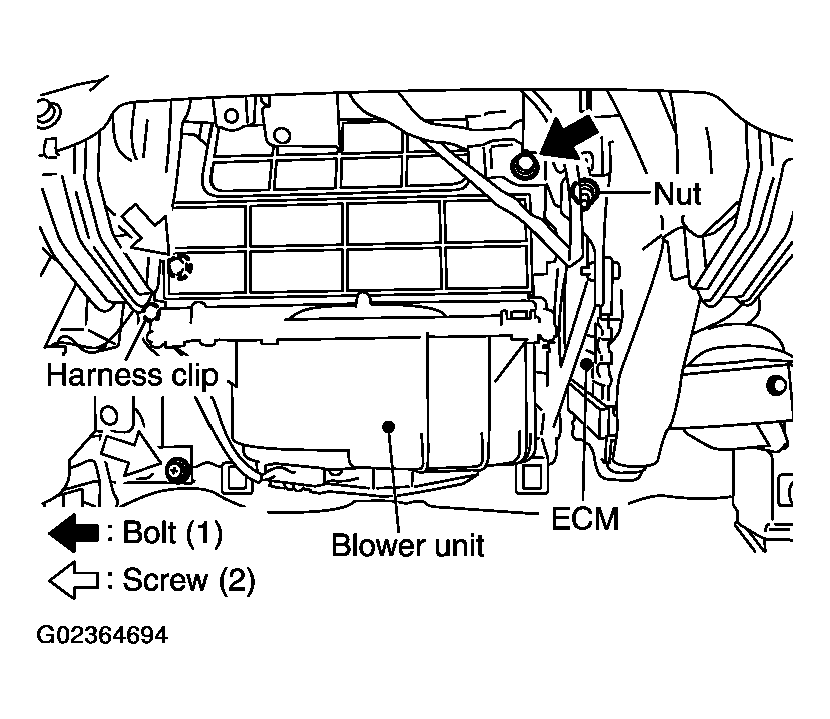

    Fig 1: Removing Mounting Bolt And Screws From Blower Unit
    G02364694Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove blower unit.

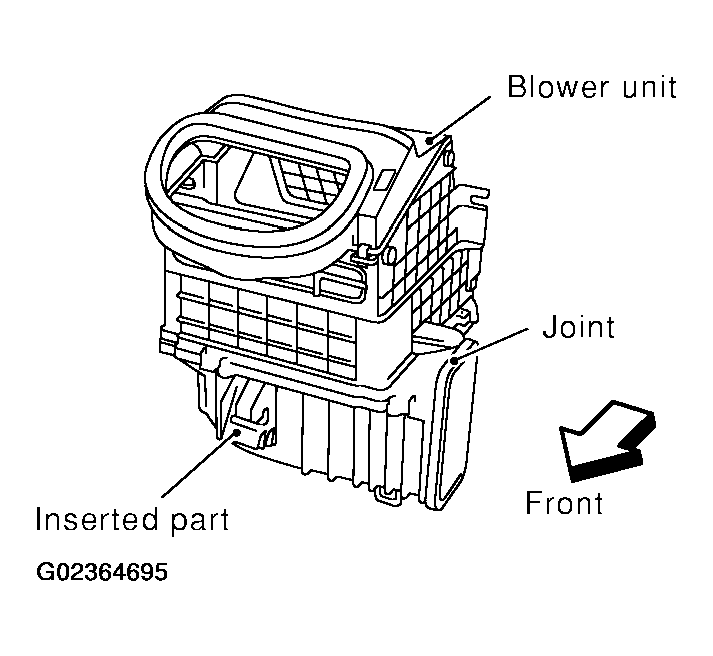

    Fig 2: Removing Blower Unit
    G02364695Courtesy of NISSAN MOTOR CO., U.S.A.
