Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front grille. Refer to "FRONT GRILLE ".
  2. Disconnect ambient sensor connector, and then remove ambient sensor.

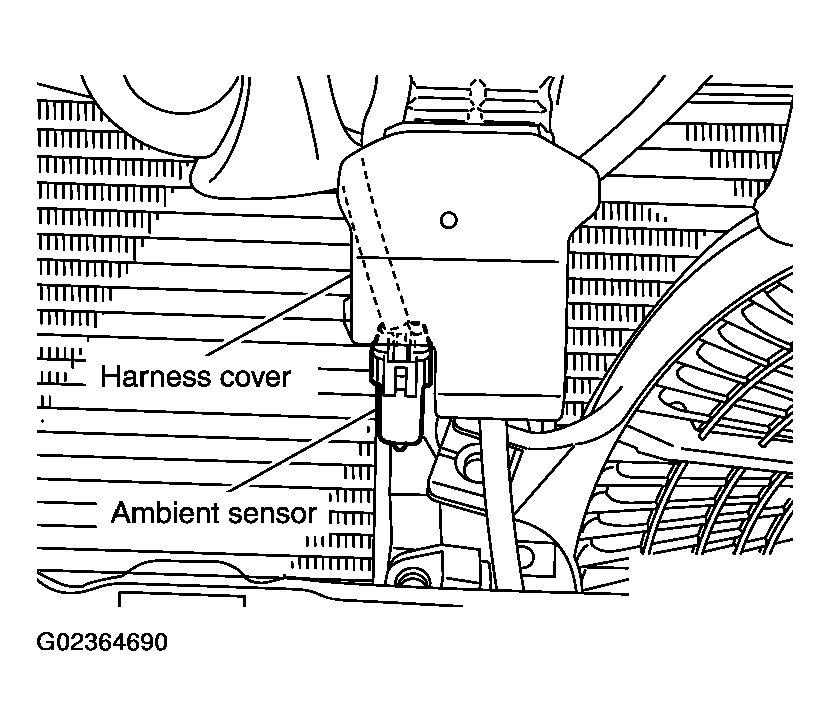

    Fig 1: Disconnecting Ambient Sensor Connector
    G02364690Courtesy of NISSAN MOTOR CO., U.S.A.
