Passenger Side Mirror Motor Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR MIRROR FUNCTION

    Check the following.

    Operation malfunction caused by a foreign object caught in door mirror face edge.

    OK or NG

    1. OK : GO TO 2.
    2. NG : Repair the malfunctioning parts, and check the symptom again.
  2. MIRROR MOTOR INSPECTION

    With CONSULT-II

    Check the operation with "MIRROR MOTOR RH" in the ACTIVE TEST.

    DESCRIPTION CHART

    Test item Description
    MIRROR MOTOR RH The RH mirror motor moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive signal.

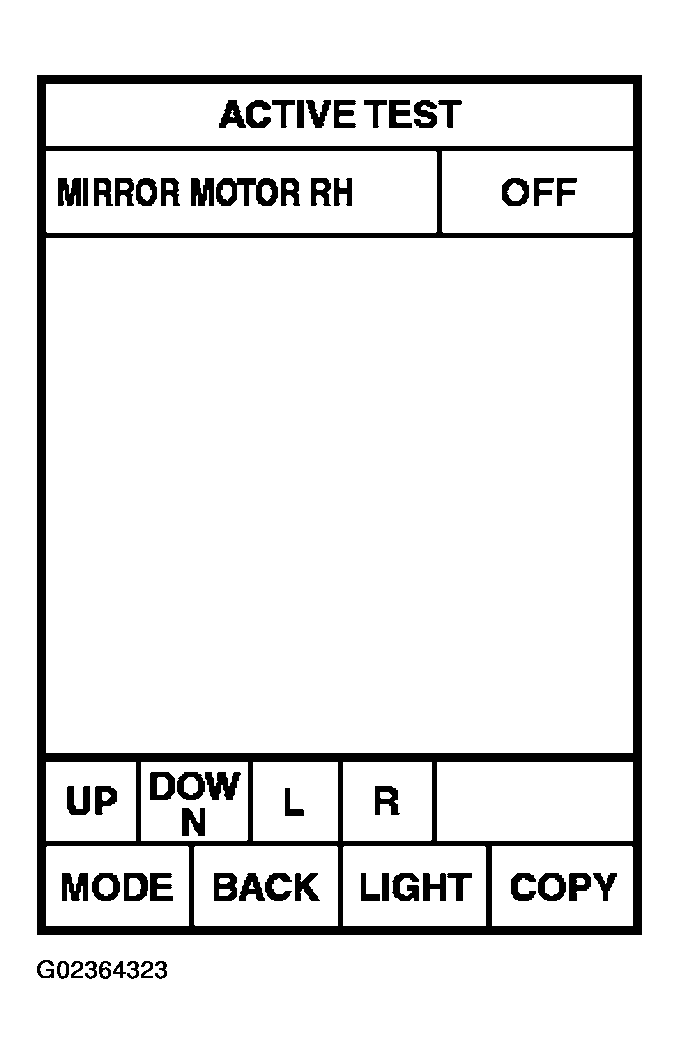

    Fig 1: Active Test Display
    G02364323Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    GO TO 3.

    OK or NG

    1. OK : Passenger side mirror motor circuit is OK.
    2. NG : GO TO 3.
  3. CHECK DOOR MIRROR MOTOR (PASSENGER SIDE) HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit connector and door mirror (passenger side) connector.
    3. Check continuity between automatic drive positioner control unit connector M49 terminal 14, 15, 30 and door mirror (passenger side) connector D32 terminal 8, 9, 10.
      1. 14 (L/W) - 10 (PU) : Continuity should exist.
      2. 15 (L/B) - 9 (OR) : Continuity should exist.
      3. 30 (W/R) - 8 (GY) : Continuity should exist.
    4. Check continuity between automatic drive positioner control unit connector M49 terminal 14, 15, 30 and ground.
      1. 14 (L/W) - Ground : Continuity should not exist.
      2. 15 (L/B) - Ground : Continuity should not exist.
      3. 30 (W/R) - Ground : Continuity should not exist.

    OK or NG

    1. OK : GO TO 4.
    2. NG : Repair or replace harness between automatic drive positioner control unit and door mirror (passenger side).

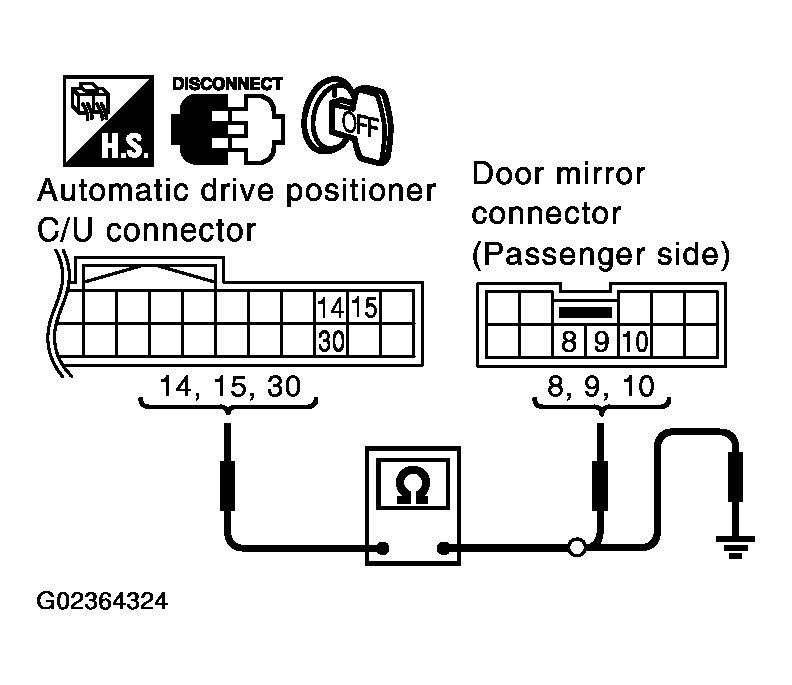

    Fig 2: Checking Continuity Between Terminal 14, 15, 30 And Ground
    G02364324Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK MIRROR MOTOR SIGNAL
    1. Connect automatic drive positioner control unit and door mirror (passenger side) connector.
    2. Turn ignition switch ACC.
    3. Turn change over switch RH position.
    4. Mirror switch operate, check voltage between door mirror (passenger side) connector and ground.

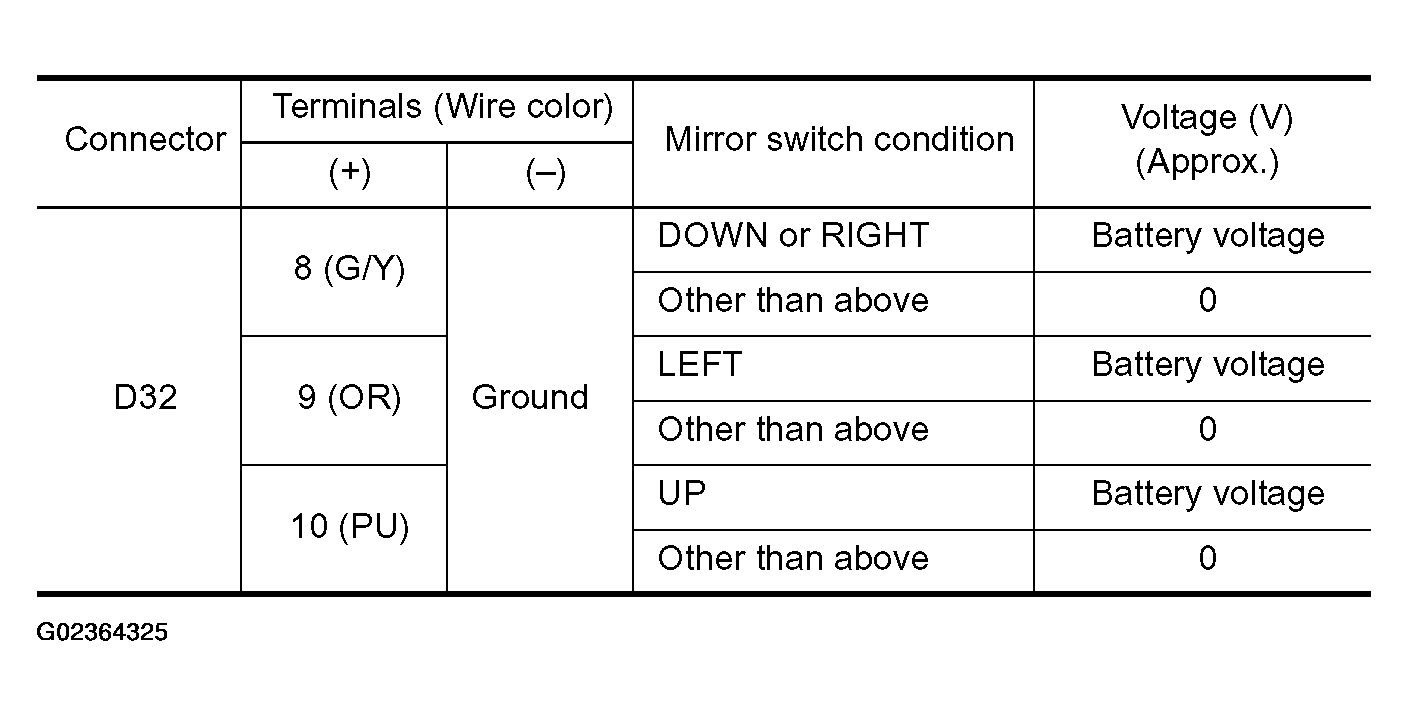

      Fig 3: Voltage Table
      G02364325Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : Replace door mirror motor (passenger side).
    2. NG : Check the condition of the harness and connector.

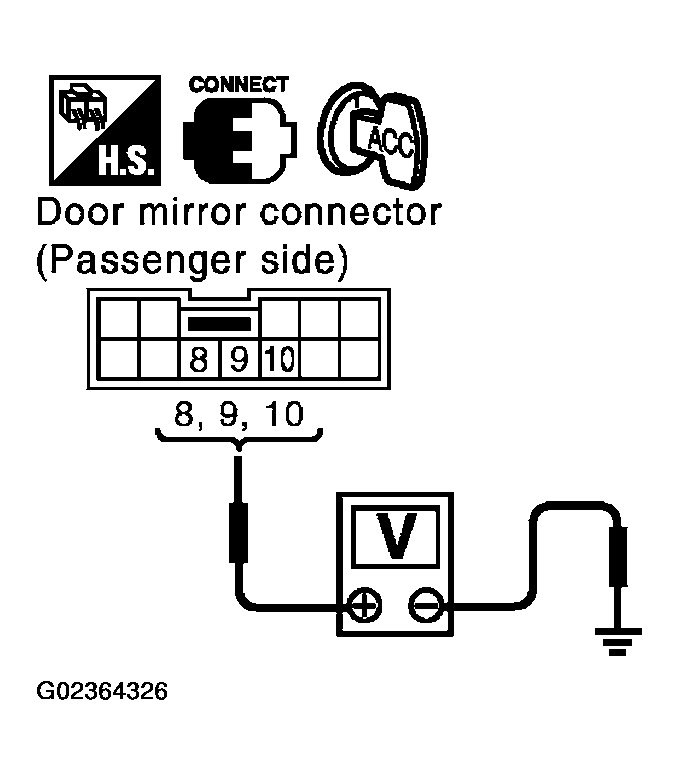

    Fig 4: Checking Voltage Between Door Mirror (Passenger Side) Connector And Ground
    G02364326Courtesy of NISSAN MOTOR CO., U.S.A.
