Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place mirror holder bracket and mirror body assembly (actuator) in a horizontal position.
  2. Connect terminals of heater installed mirror.
  3. Fit the upper pawls on the mirror face onto the mirror holder bracket first, then press the lower side of mirror face until a click sound is heard to engage the lower pawls.
NOTE: After installation, visually make sure lower pawls are securely engaged from the bottom of mirror face.

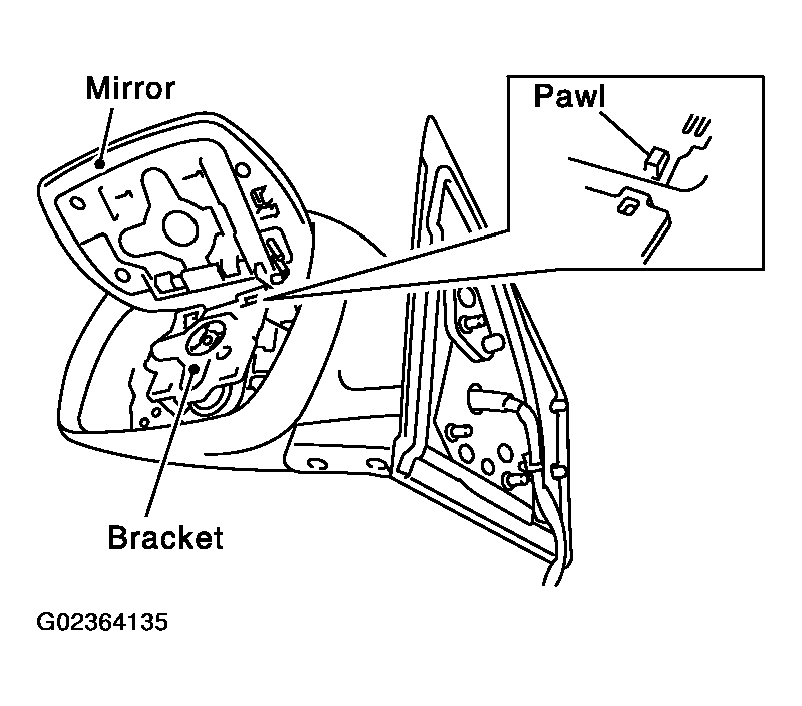

Fig 1: Placing Mirror Holder Bracket And Mirror Body Assembly
G02364135Courtesy of NISSAN MOTOR CO., U.S.A.
