Pad Wear Inspection
WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

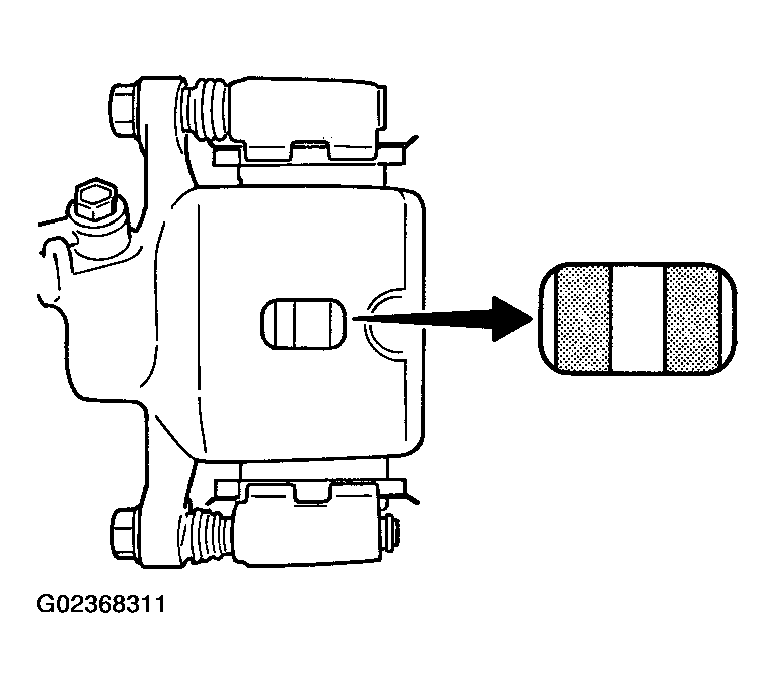

- Inspect the thickness of pad through cylinder body inspection hole. Use a scale for inspection if necessary.
- Standard thickness: 8.5 mm (0.335 in)
- Repair limit thickness: 2.0 mm (0.079 in)
Courtesy of NISSAN MOTOR CO., U.S.A.
