Inspection After Disassembly

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Clean up the disassembled parts. Then, inspect if the parts are worn or damaged. If so, follow the measures below.

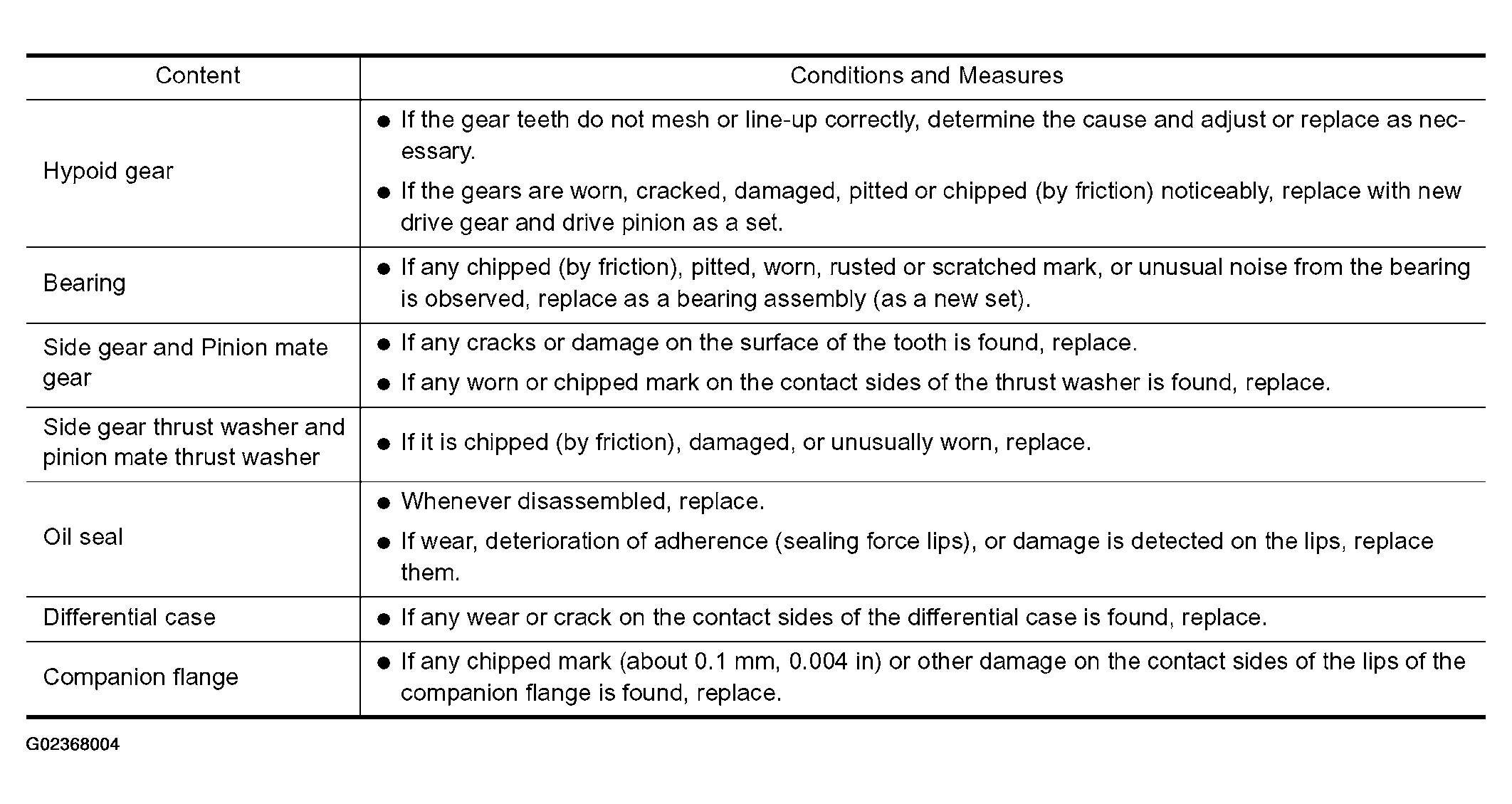

Fig 1: Front Final Drive Assembly Condition And Measure Chart
G02368004Courtesy of NISSAN MOTOR CO., U.S.A.
