Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
Note the following, install in the reverse order of removal.

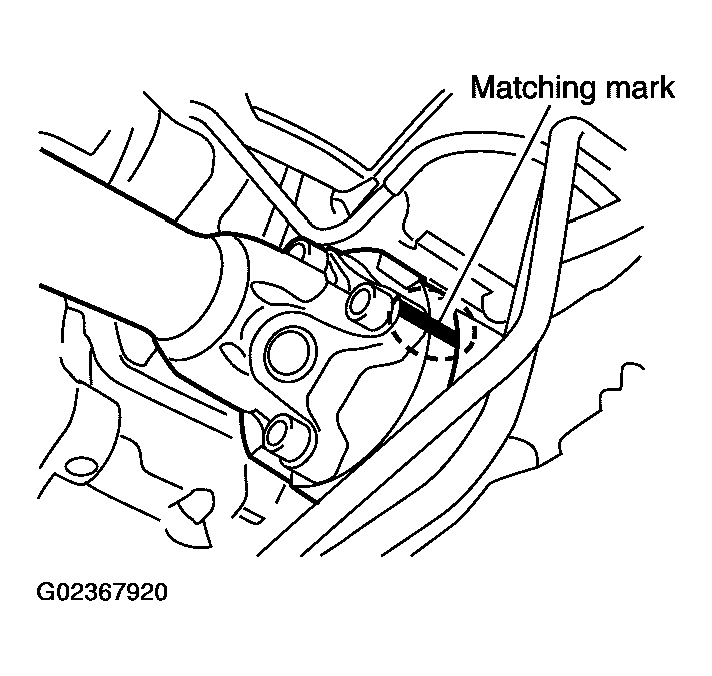

- Align matching marks to install propeller shaft to final drive companion flange, and then tighten to specified torque. Refer to
"COMPONENTS ".CAUTION: Do not reuse the bolts.
- After assembly, perform a driving test to check propeller shaft vibration. If vibration occurred, separate propeller shaft from final drive or transfer. Reinstall companion flange after rotating it by 90, 180, 270 degrees. Then perform driving test and check propeller shaft vibration again at each point.
