Symptom Chart

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

The diagnostics item numbers show the sequence for inspection. Check in order from Item 1.
Overhaul and check inside the A/T only if A/T fluid condition is NG. Refer to "FLUID CONDITION CHECK ".

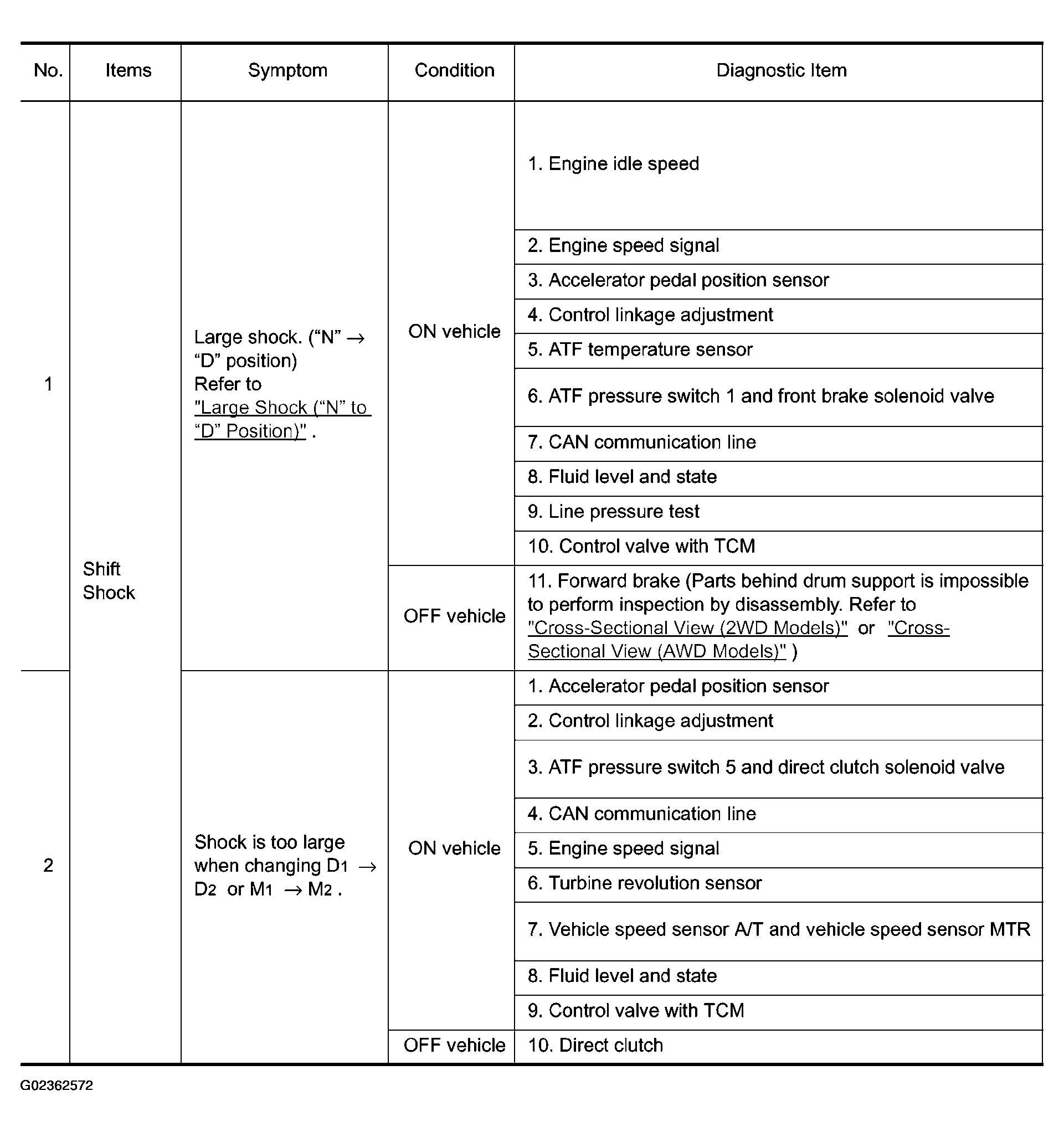

Fig 1: Trouble Diagnosis - Symptom Chart (1 - 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

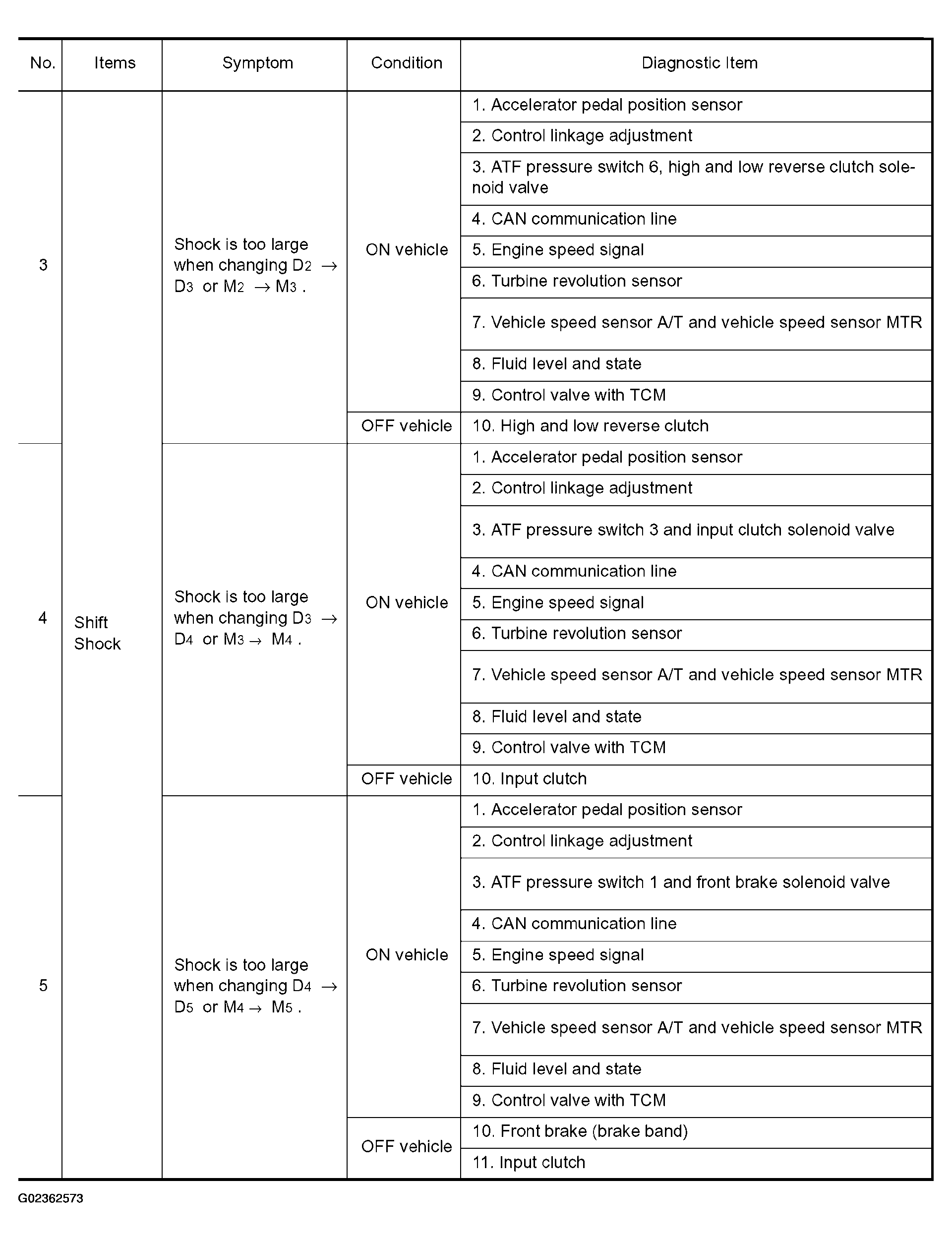

Fig 2: Trouble Diagnosis - Symptom Chart (3 - 5)

G02362573

Courtesy of NISSAN MOTOR CO., U.S.A.

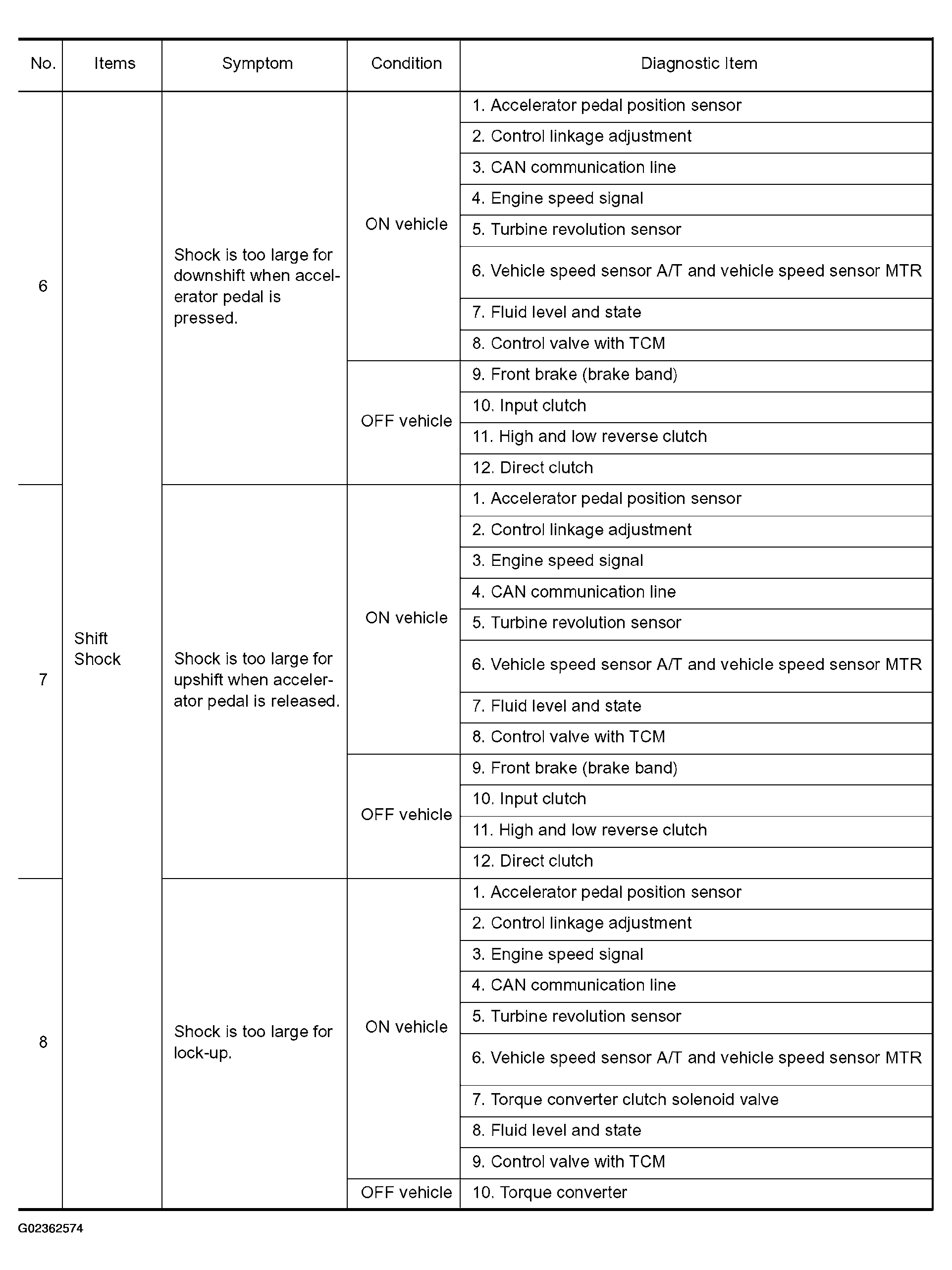

Fig 3: Trouble Diagnosis - Symptom Chart (6 - 8)

G02362574

Courtesy of NISSAN MOTOR CO., U.S.A.

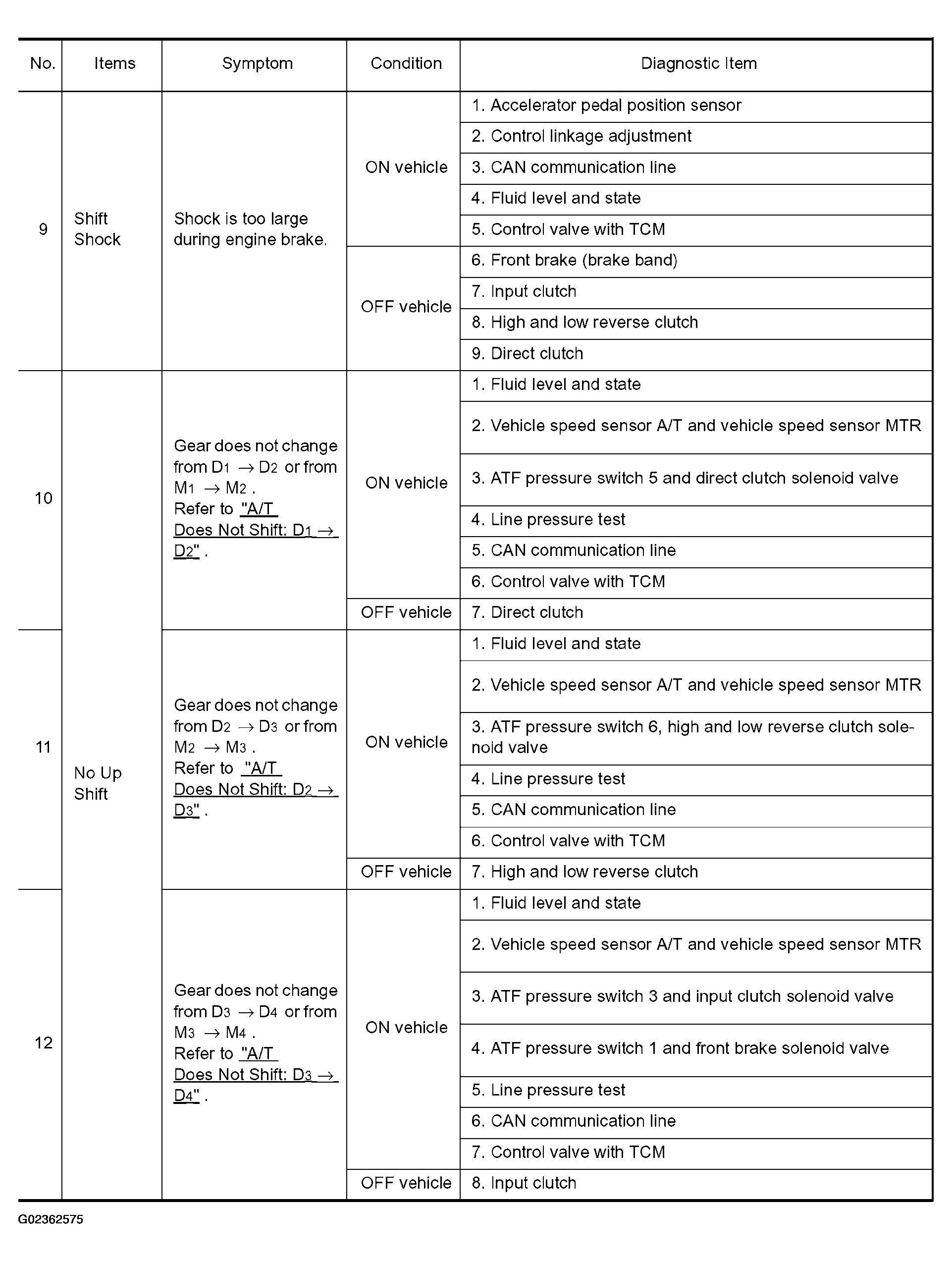

Fig 4: Trouble Diagnosis - Symptom Chart (9 - 12)

G02362575

Courtesy of NISSAN MOTOR CO., U.S.A.

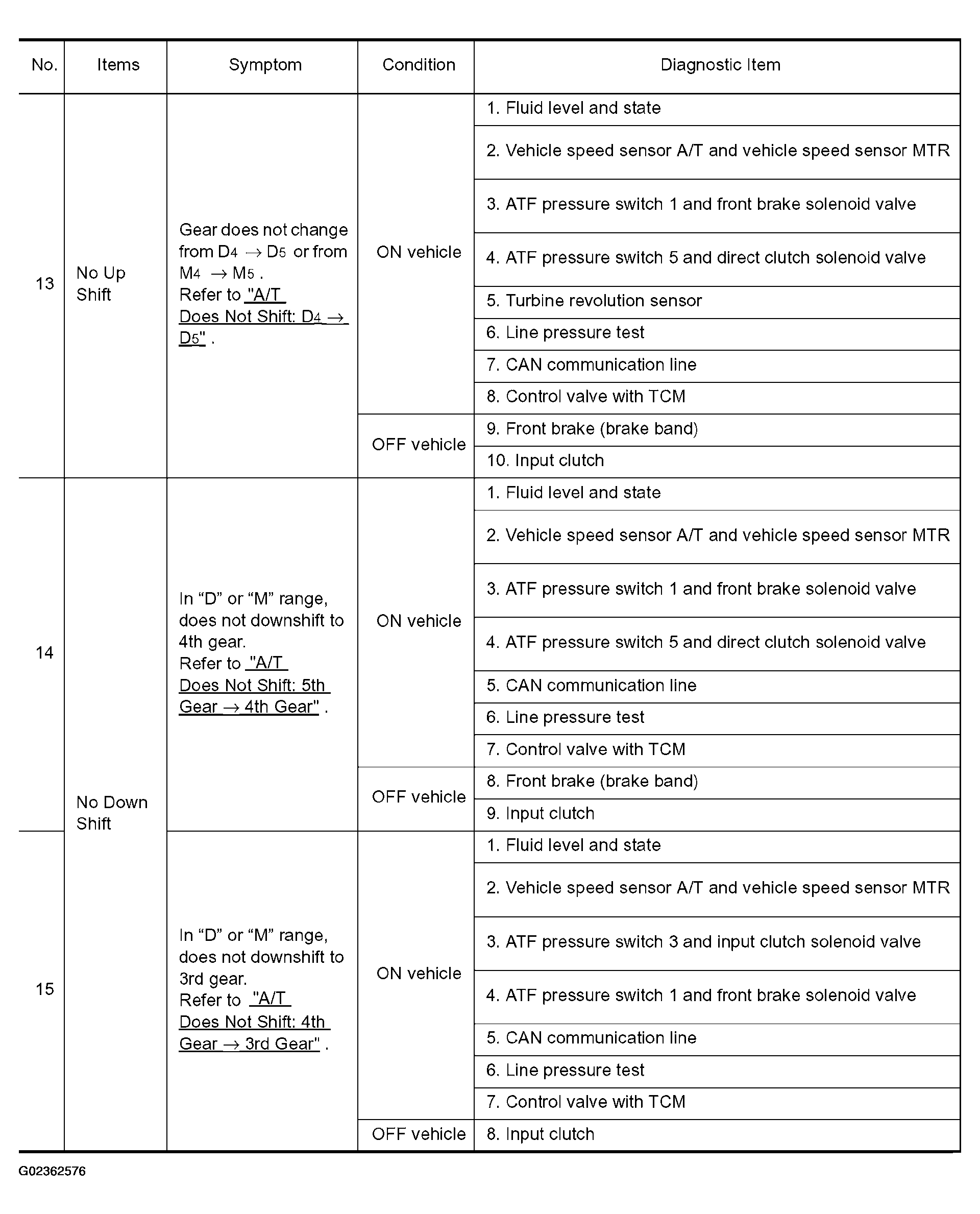

Fig 5: Trouble Diagnosis - Symptom Chart (13 - 15)

G02362576

Courtesy of NISSAN MOTOR CO., U.S.A.

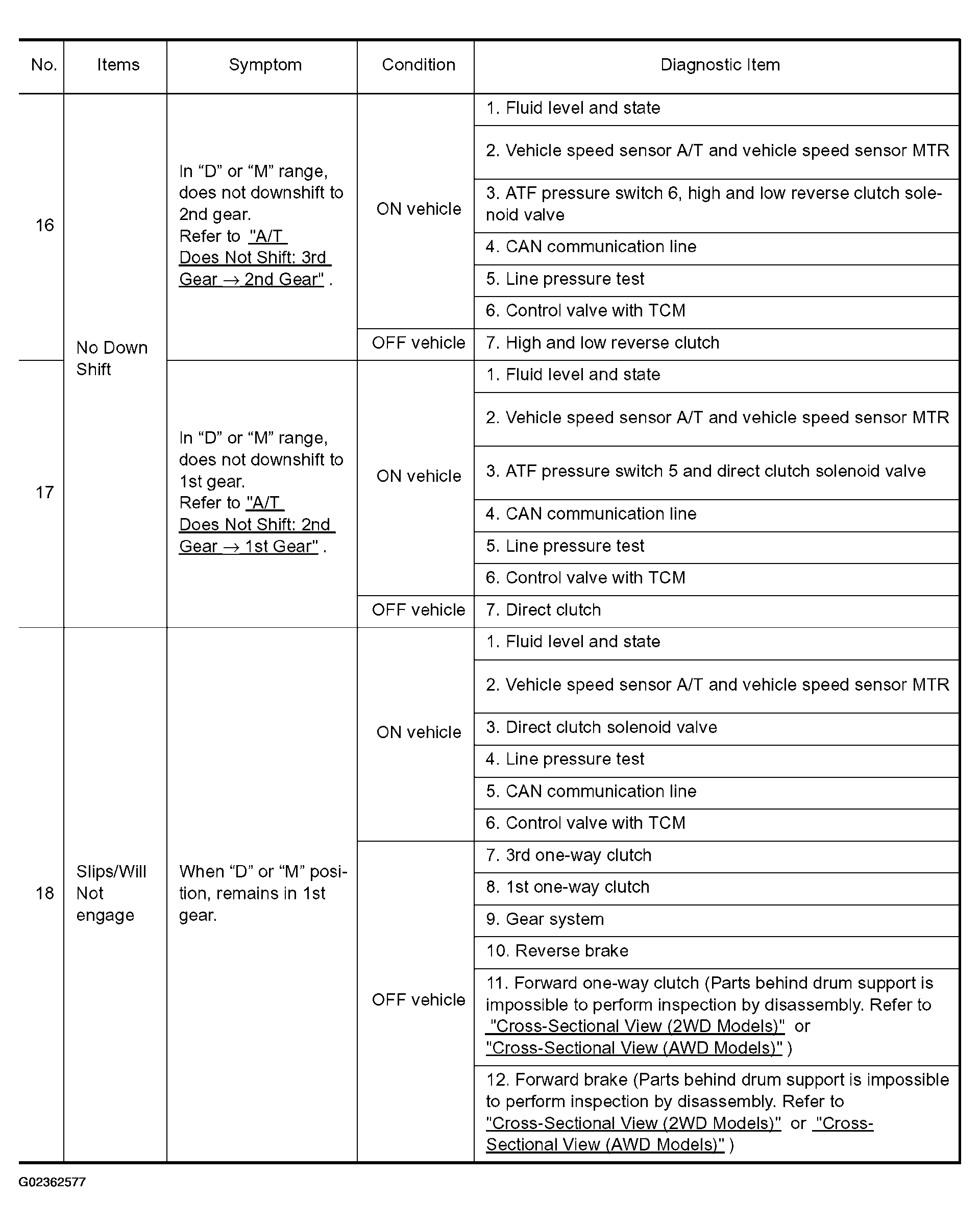

Fig 6: Trouble Diagnosis - Symptom Chart (16 - 18)

G02362577

Courtesy of NISSAN MOTOR CO., U.S.A.

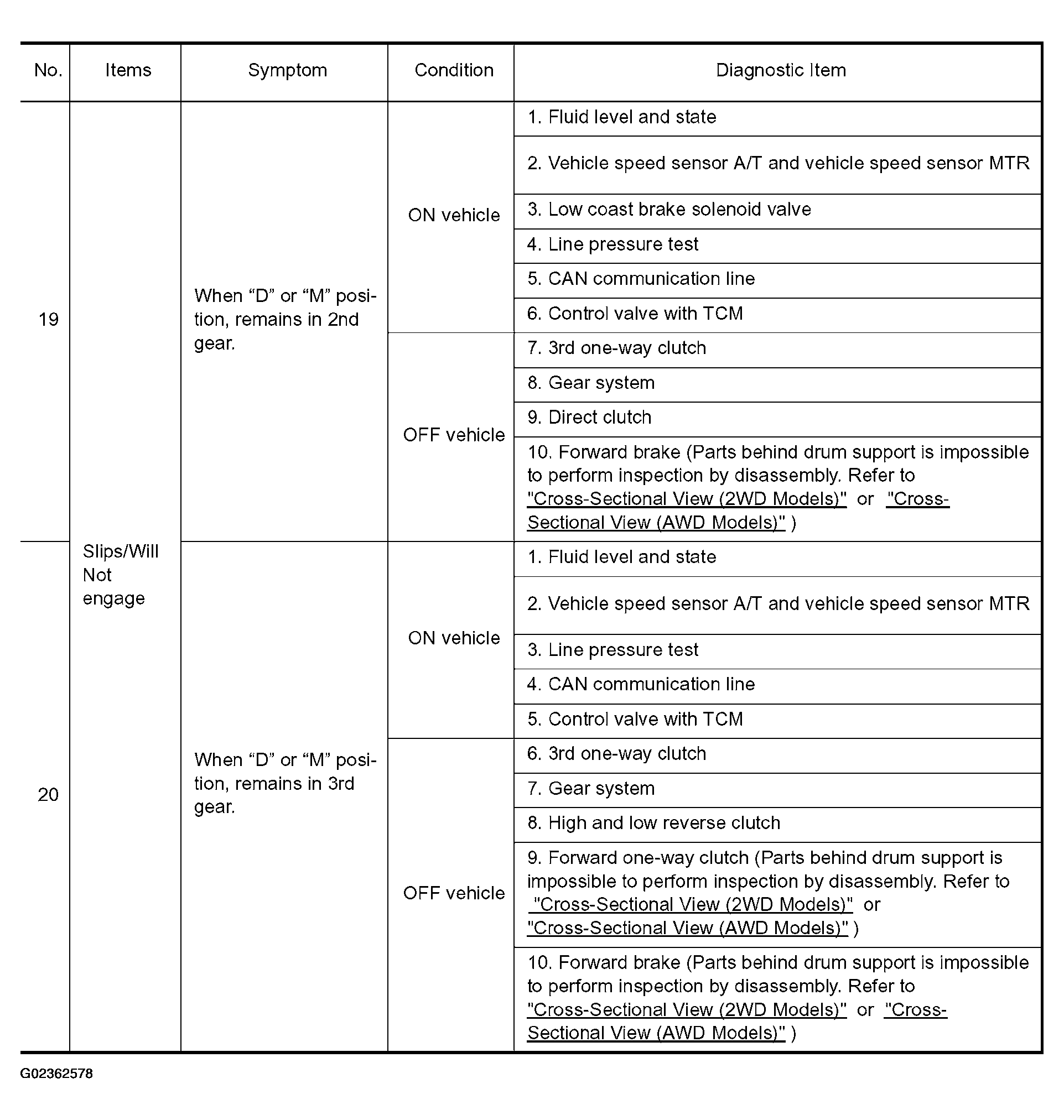

Fig 7: Trouble Diagnosis - Symptom Chart (19 - 20)

G02362578

Courtesy of NISSAN MOTOR CO., U.S.A.

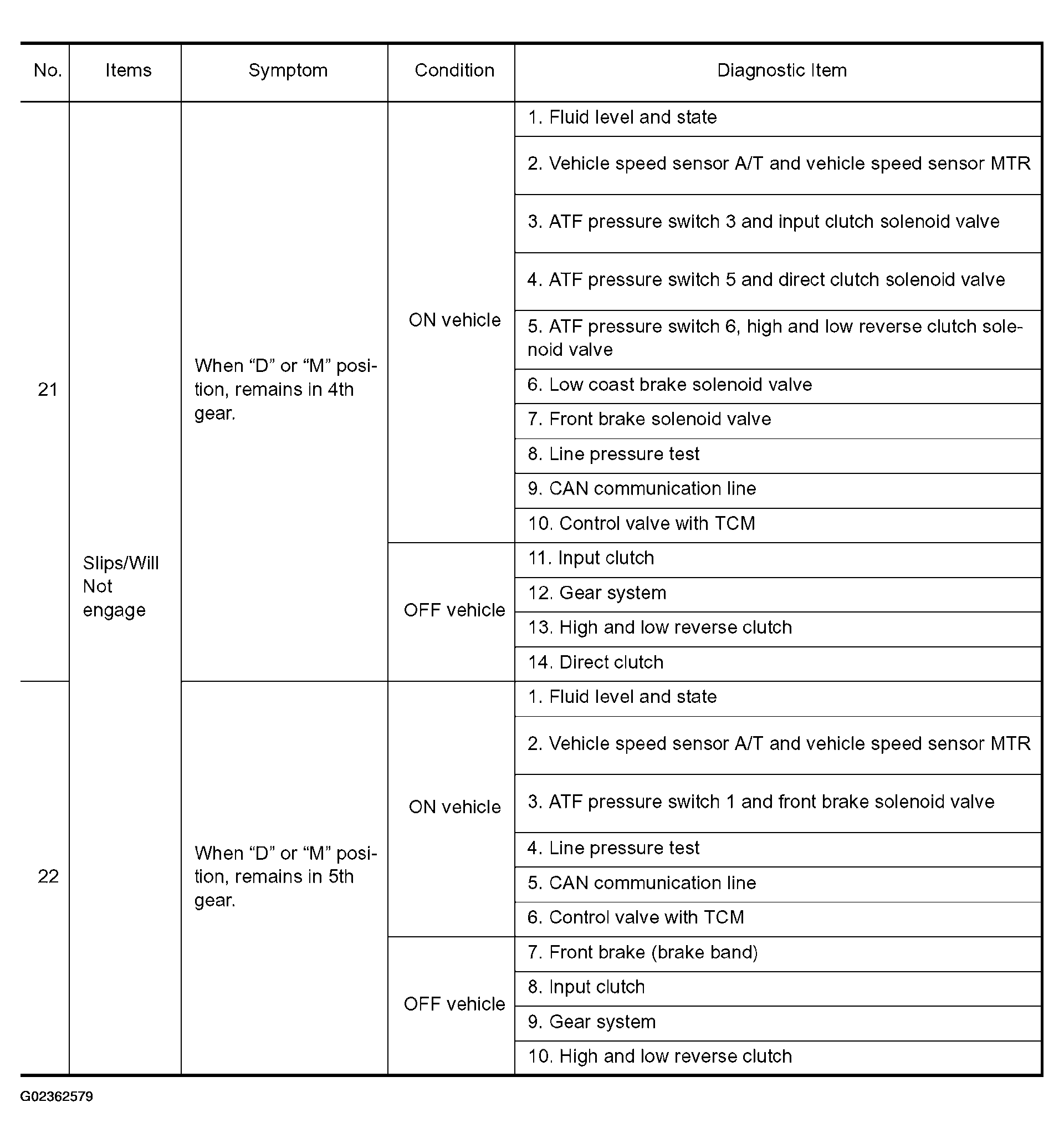

Fig 8: Trouble Diagnosis - Symptom Chart (21 - 22)

G02362579

Courtesy of NISSAN MOTOR CO., U.S.A.

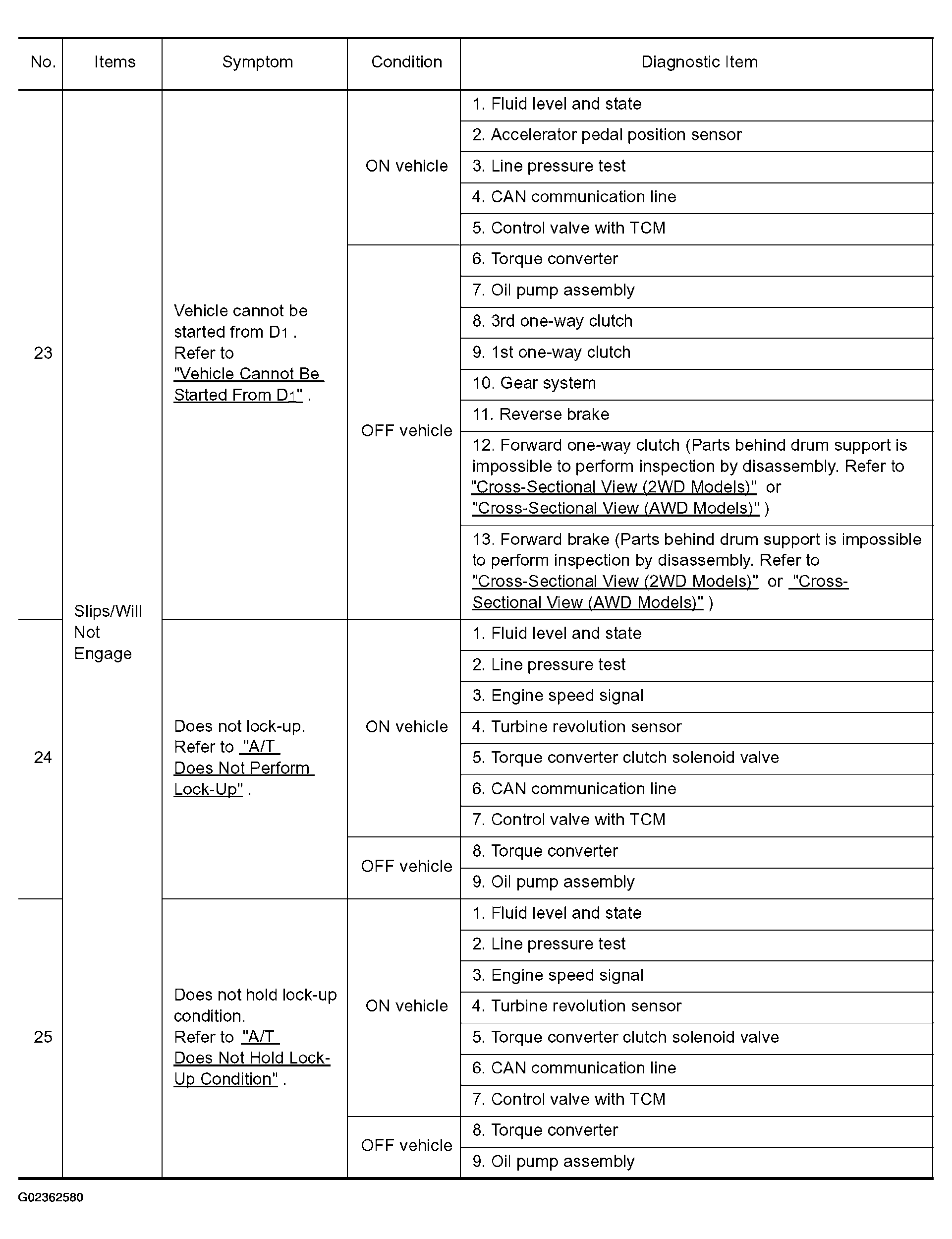

Fig 9: Trouble Diagnosis - Symptom Chart (23 - 25)

G02362580

Courtesy of NISSAN MOTOR CO., U.S.A.

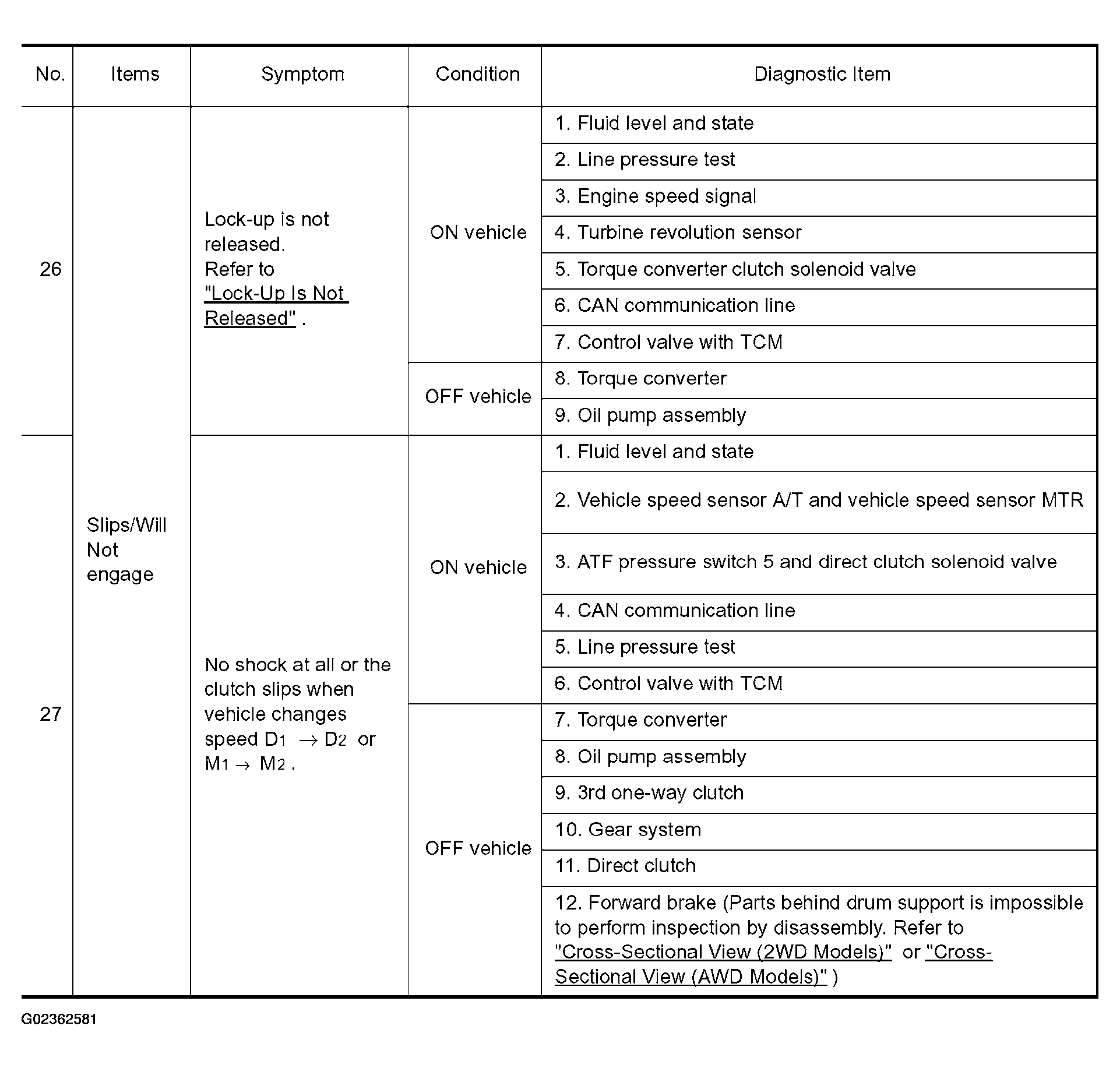

Fig 10: Trouble Diagnosis - Symptom Chart (26 - 27)

G02362581

Courtesy of NISSAN MOTOR CO., U.S.A.

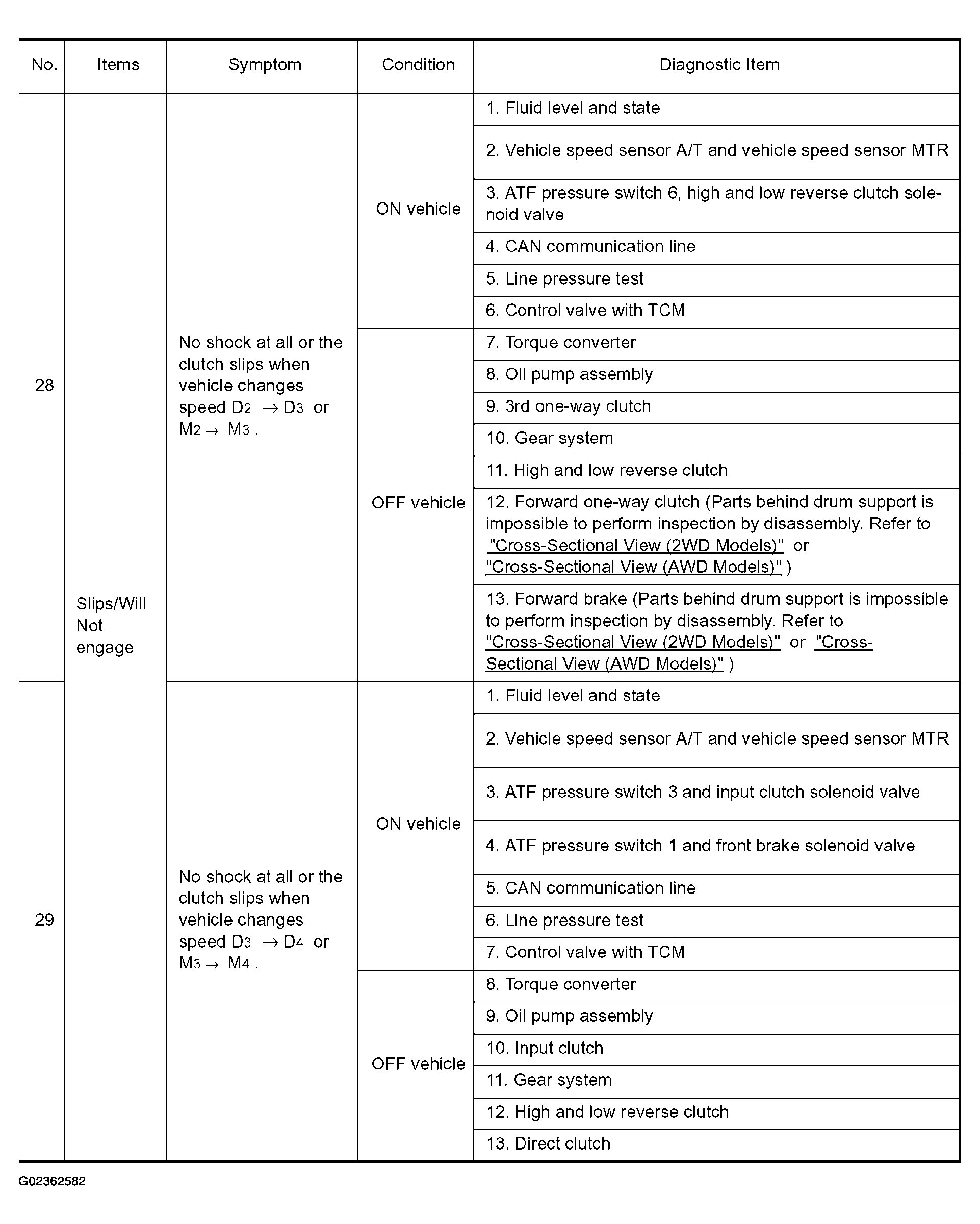

Fig 11: Trouble Diagnosis - Symptom Chart (28 - 29)

G02362582

Courtesy of NISSAN MOTOR CO., U.S.A.

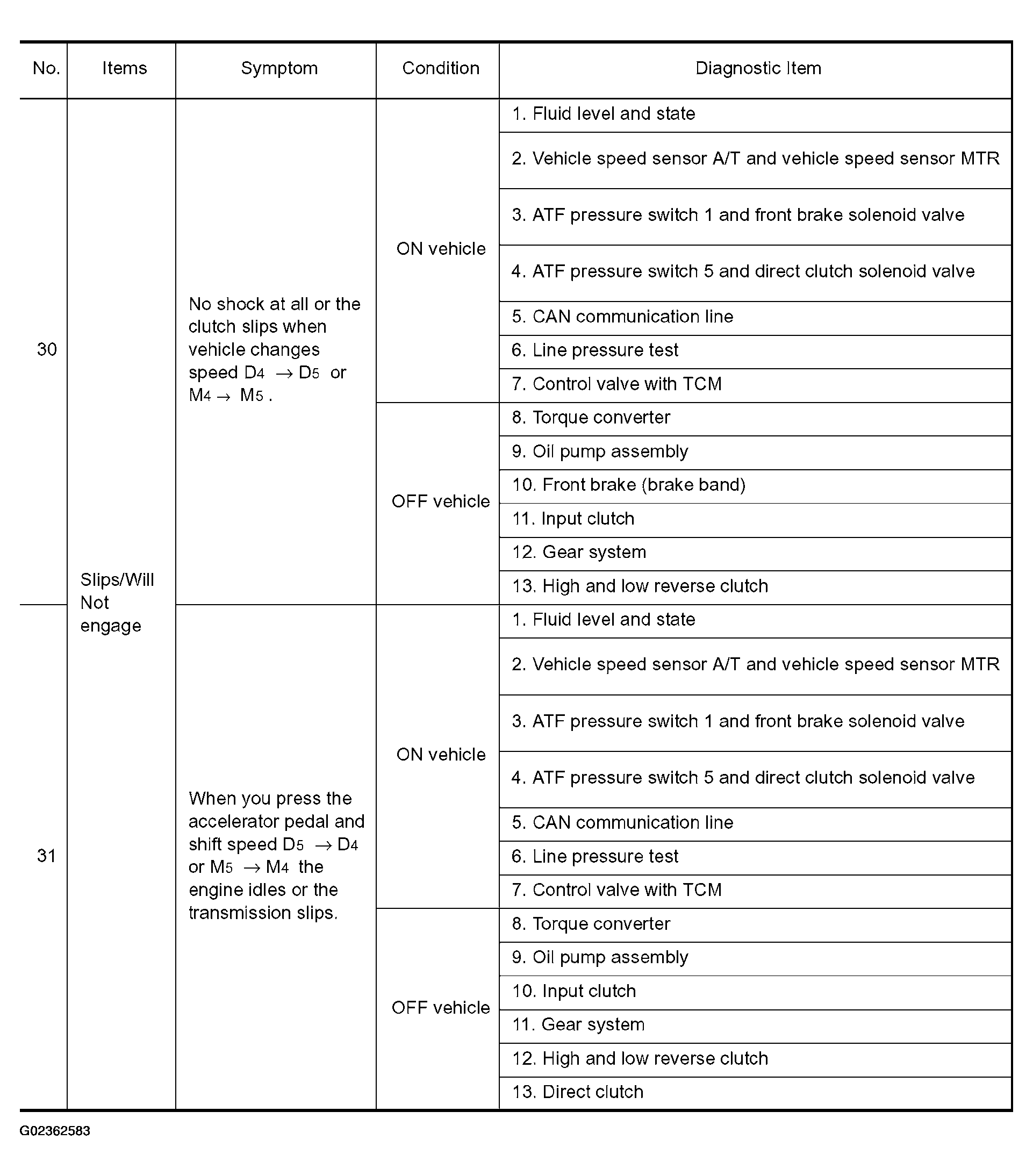

Fig 12: Trouble Diagnosis - Symptom Chart (30 - 31)

G02362583

Courtesy of NISSAN MOTOR CO., U.S.A.

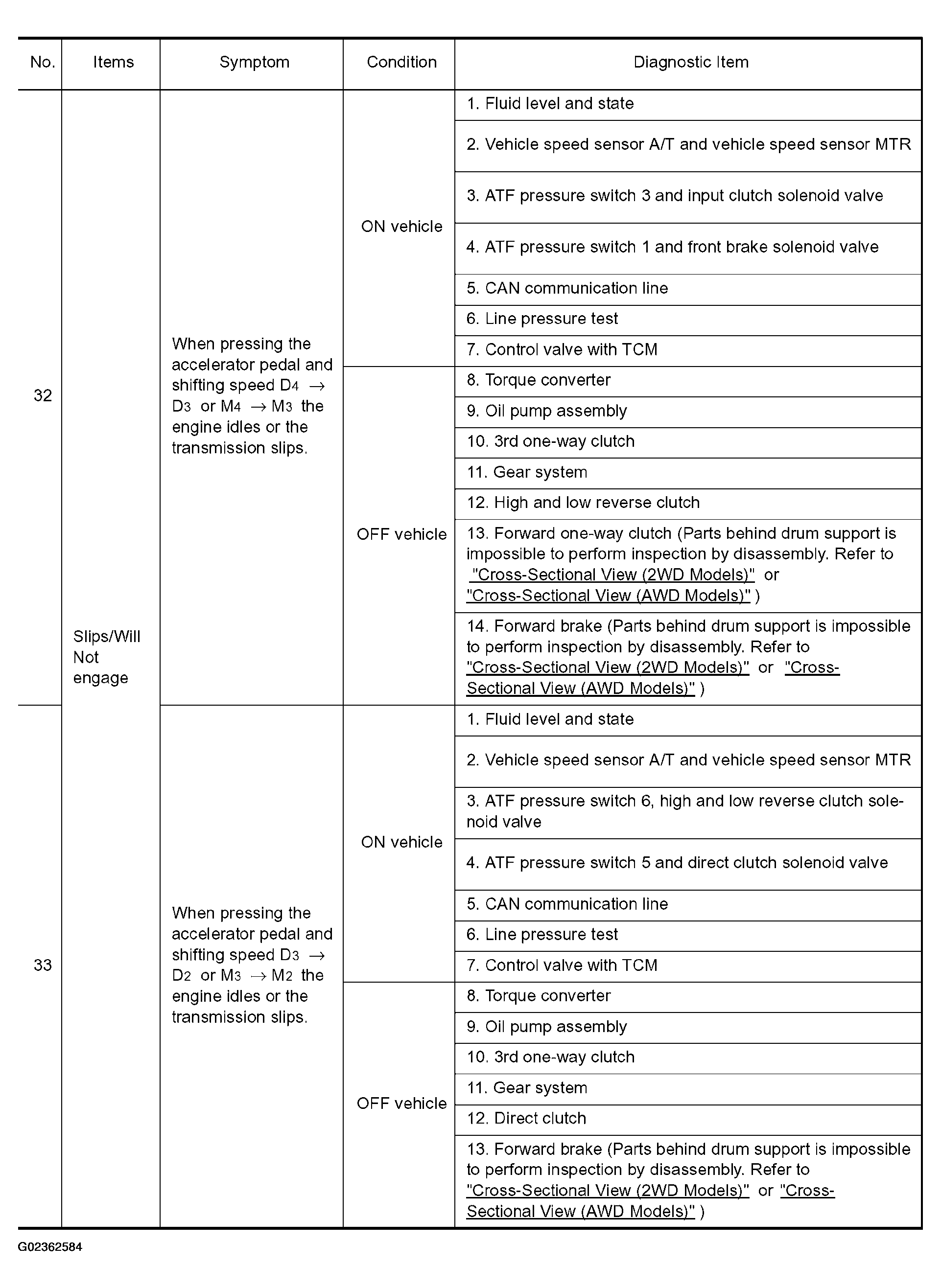

Fig 13: Trouble Diagnosis - Symptom Chart (32 - 33)

G02362584

Courtesy of NISSAN MOTOR CO., U.S.A.

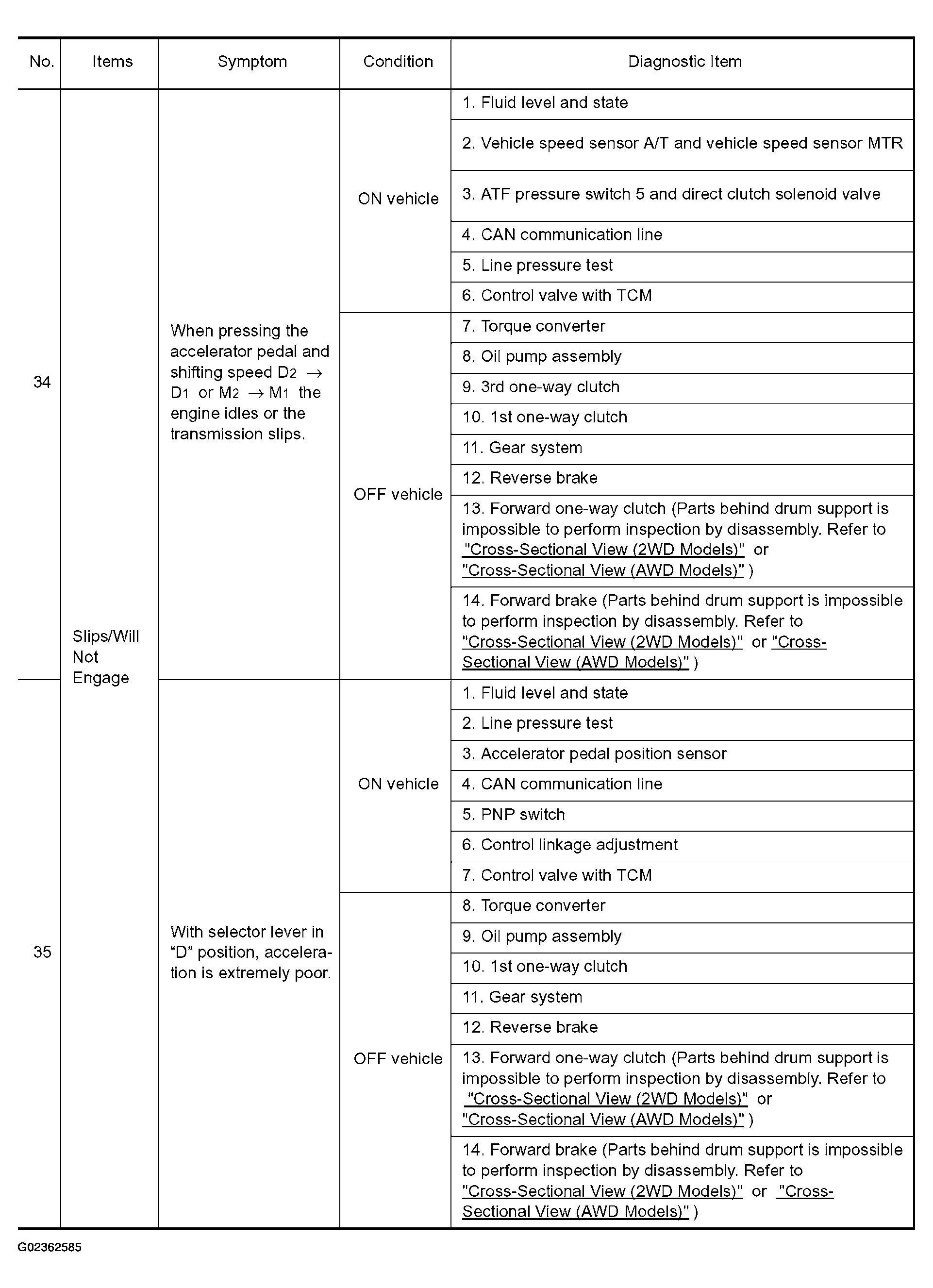

Fig 14: Trouble Diagnosis - Symptom Chart (34 - 35)

G02362585

Courtesy of NISSAN MOTOR CO., U.S.A.

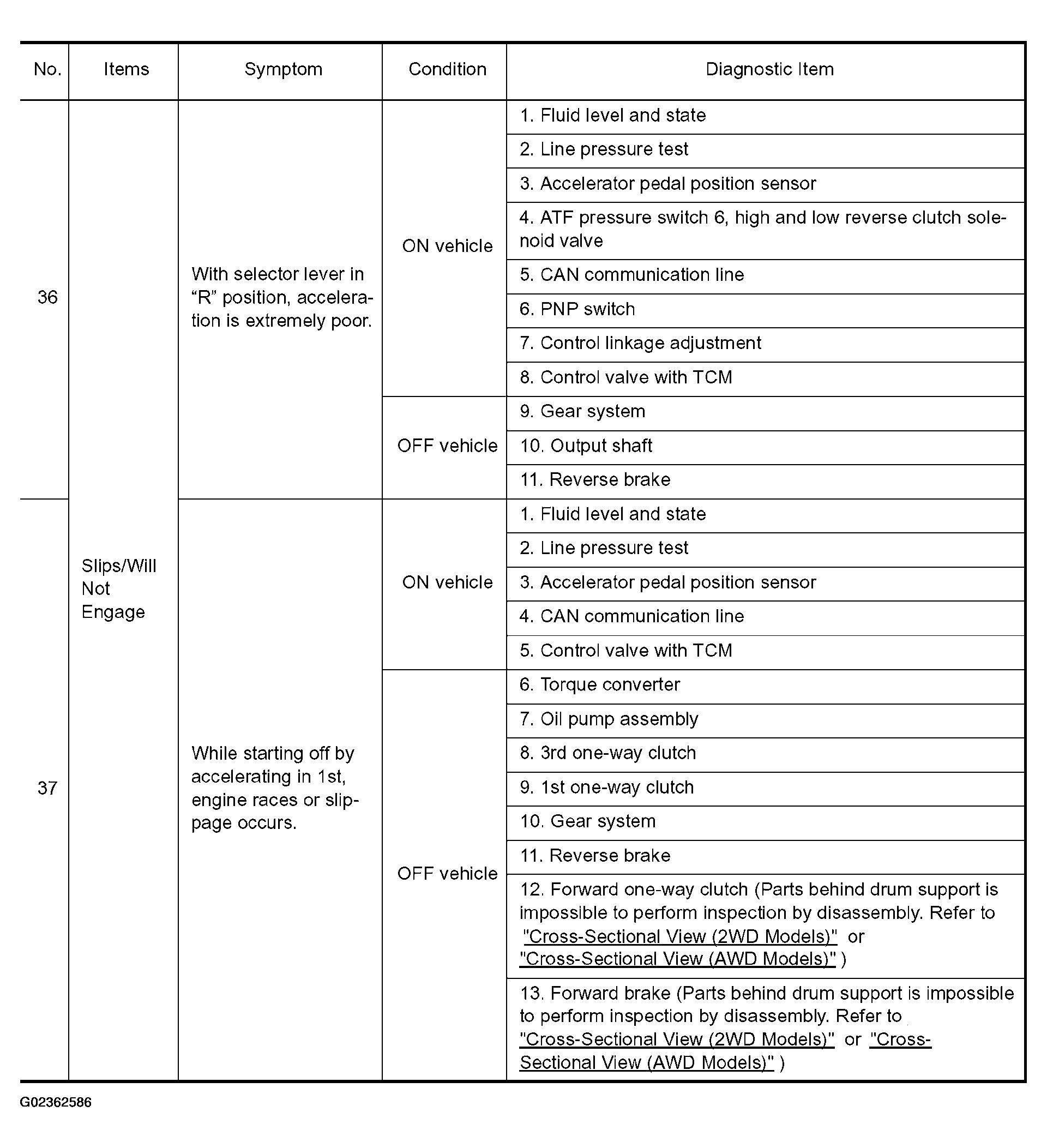

Fig 15: Trouble Diagnosis - Symptom Chart (36 - 37)

G02362586

Courtesy of NISSAN MOTOR CO., U.S.A.

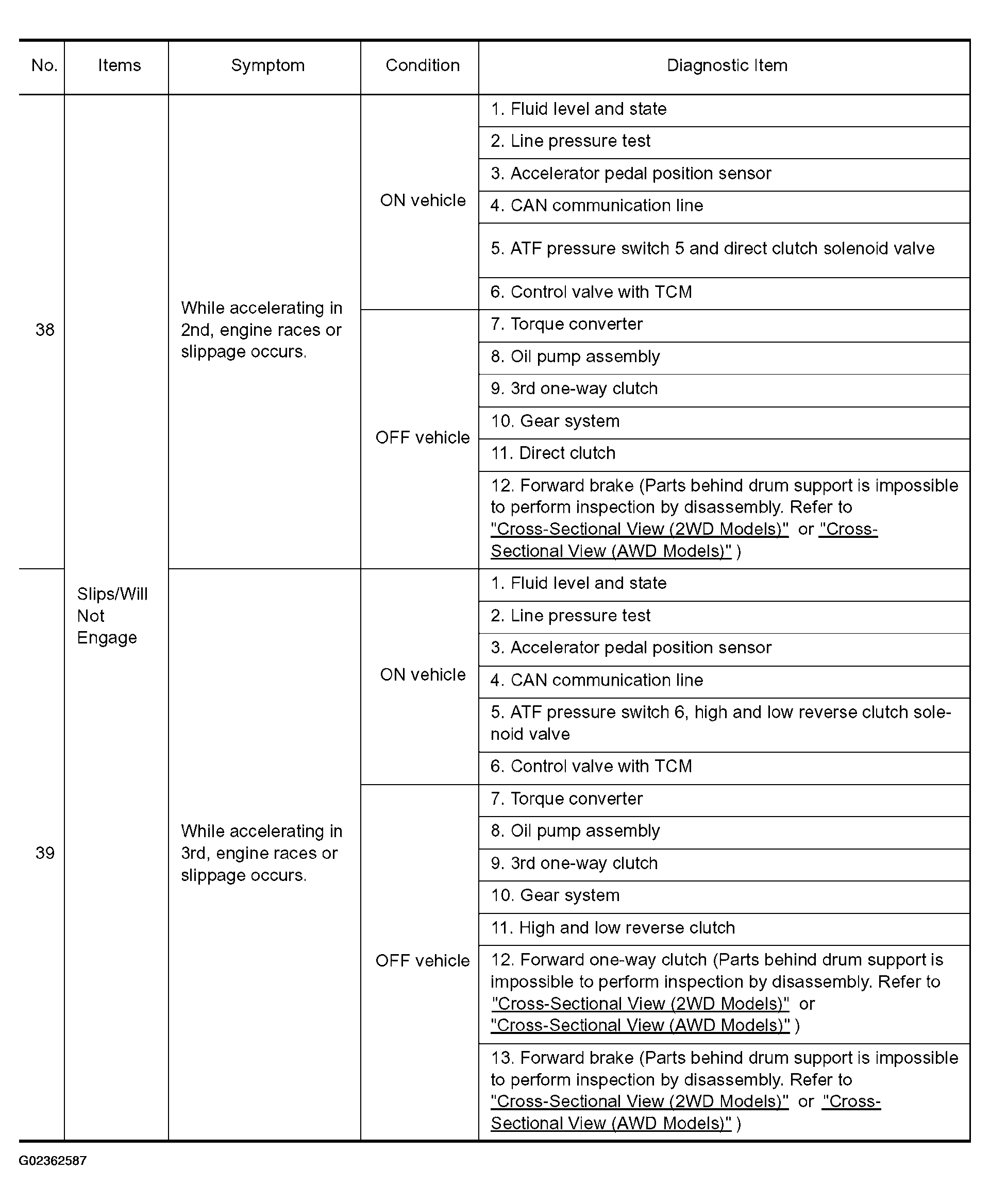

Fig 16: Trouble Diagnosis - Symptom Chart (38 - 39)

G02362587

Courtesy of NISSAN MOTOR CO., U.S.A.

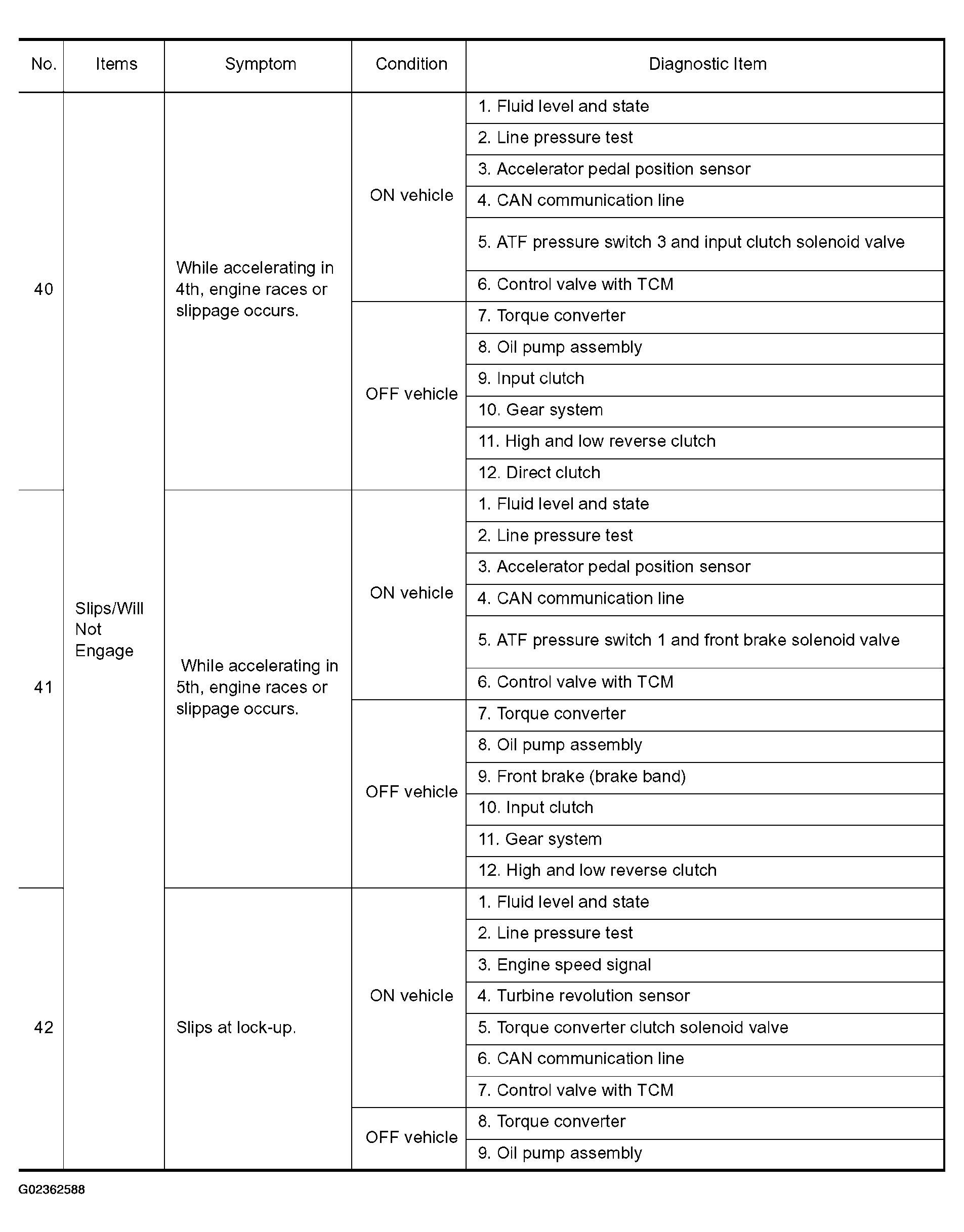

Fig 17: Trouble Diagnosis - Symptom Chart (40 - 42)

G02362588

Courtesy of NISSAN MOTOR CO., U.S.A.

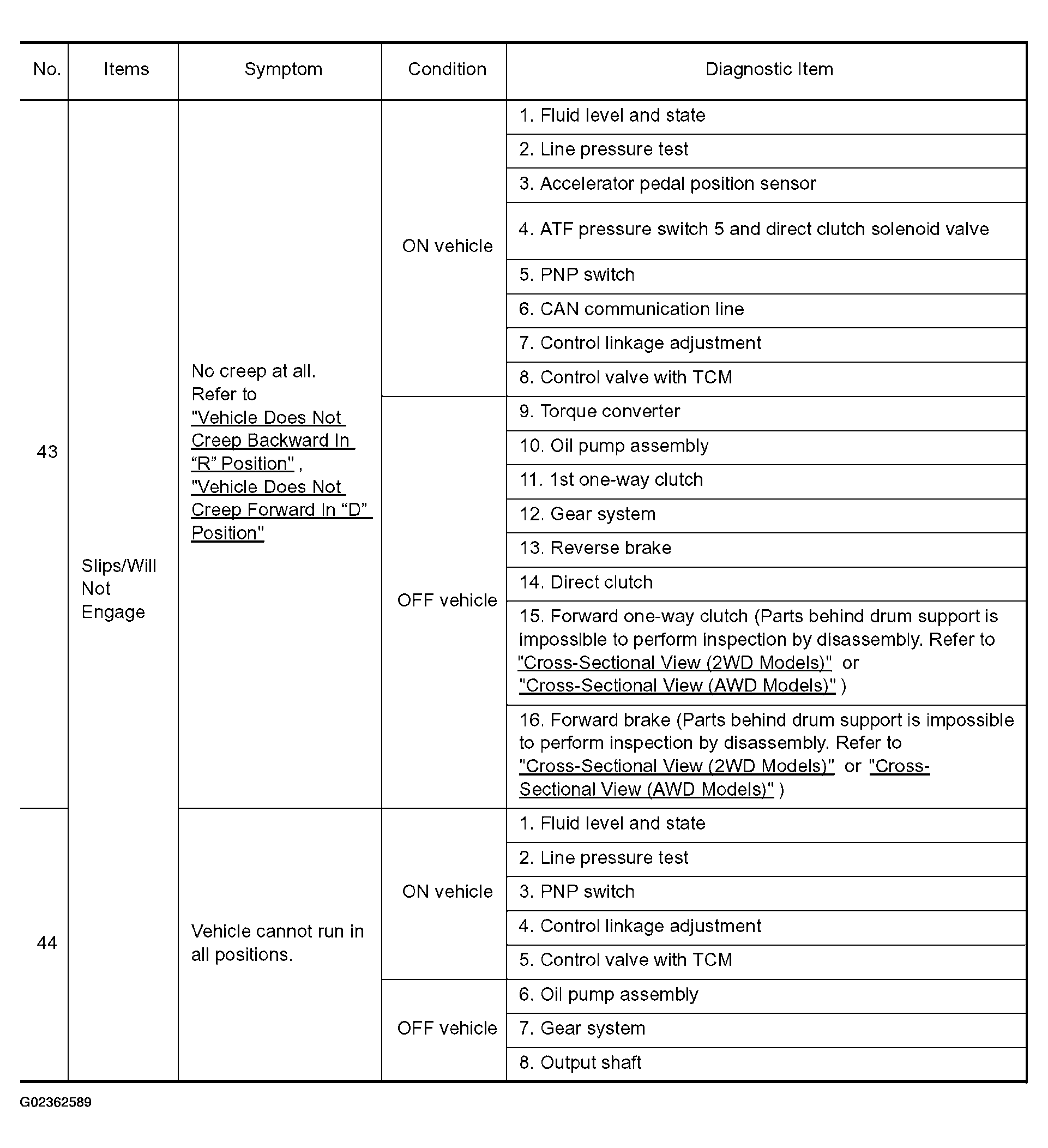

Fig 18: Trouble Diagnosis - Symptom Chart (43 - 44)

G02362589

Courtesy of NISSAN MOTOR CO., U.S.A.

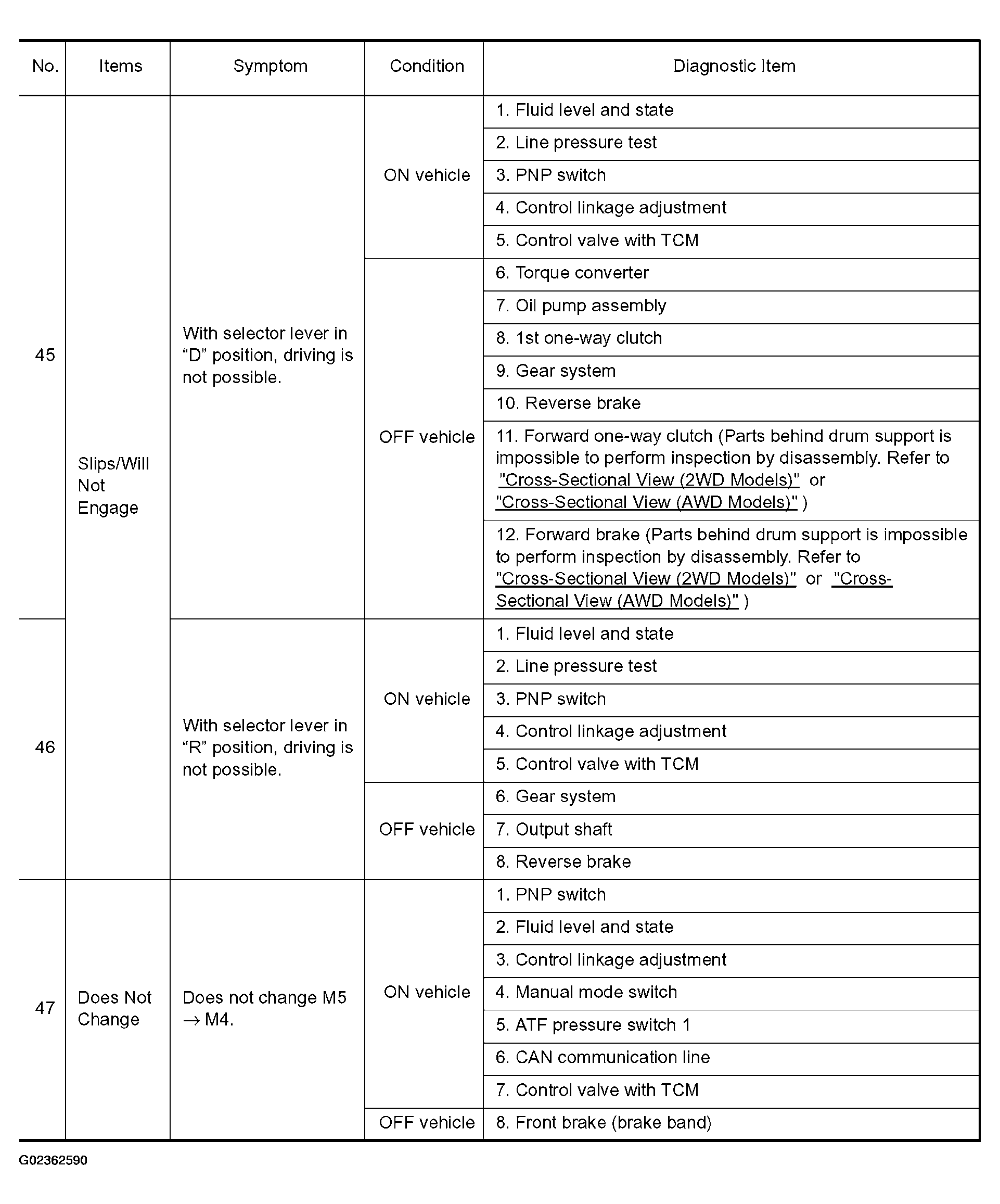

Fig 19: Trouble Diagnosis - Symptom Chart (45 - 47)

G02362590

Courtesy of NISSAN MOTOR CO., U.S.A.

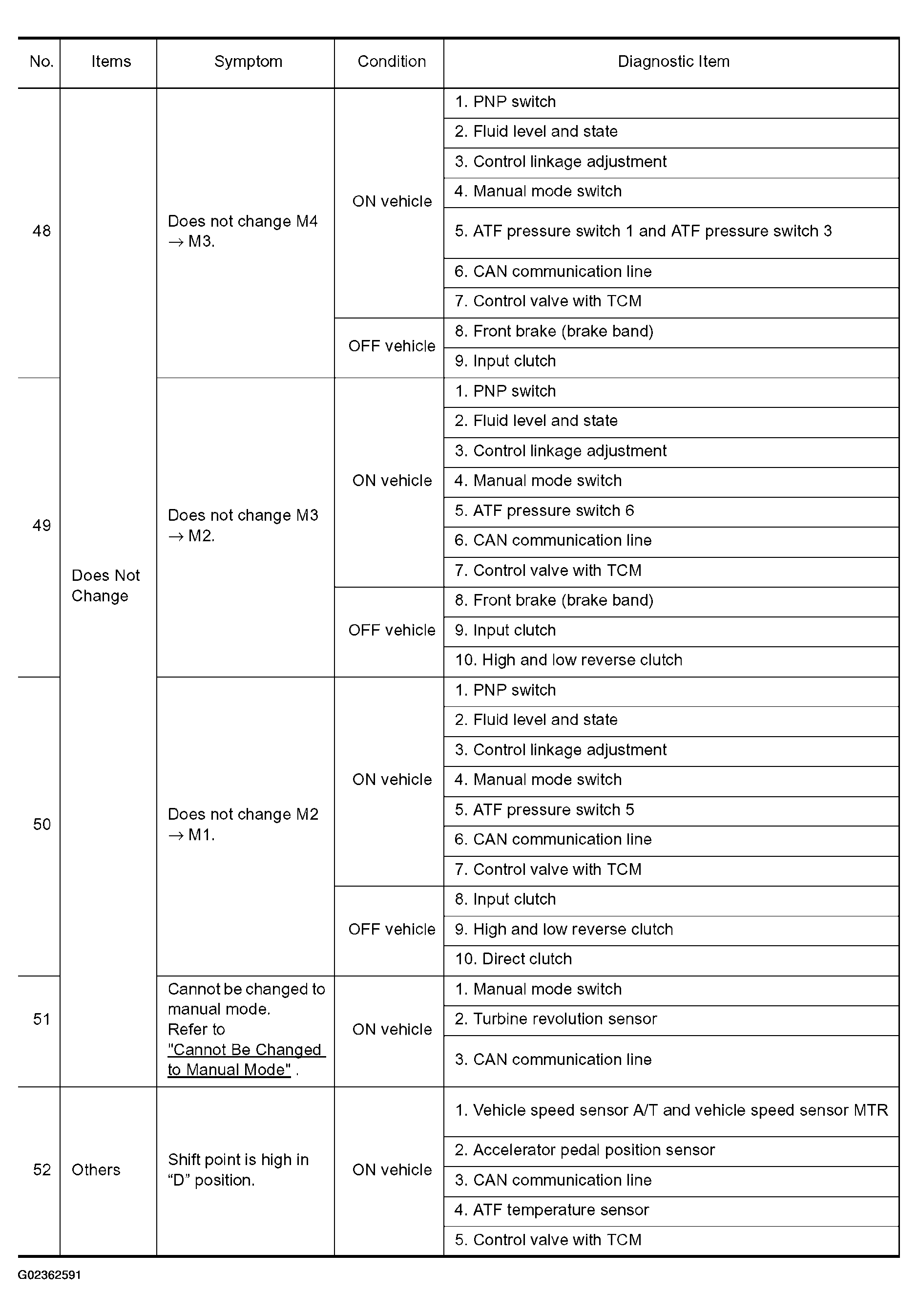

Fig 20: Trouble Diagnosis - Symptom Chart (48 - 52)

G02362591

Courtesy of NISSAN MOTOR CO., U.S.A.

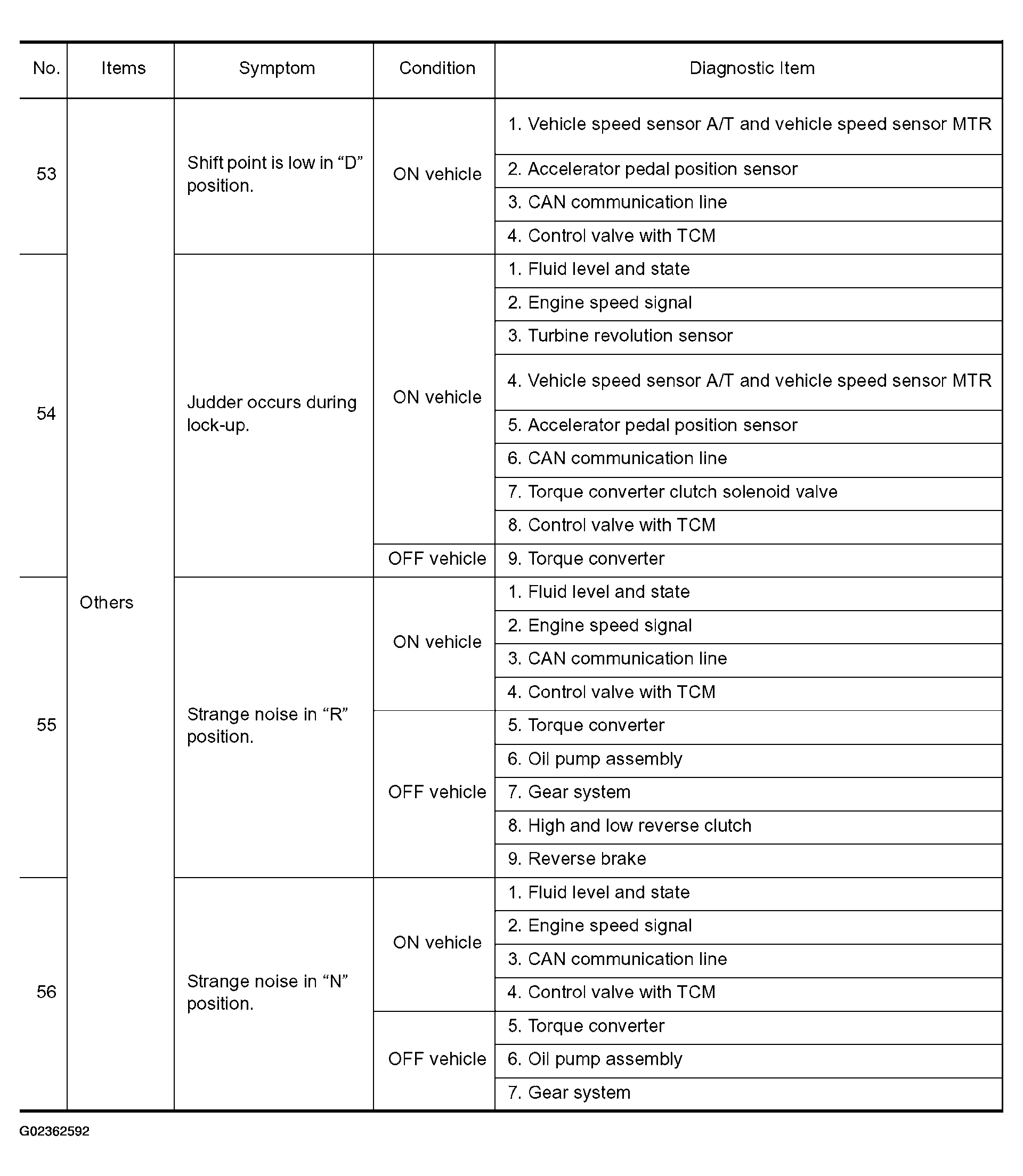

Fig 21: Trouble Diagnosis - Symptom Chart (53 - 56)

G02362592

Courtesy of NISSAN MOTOR CO., U.S.A.

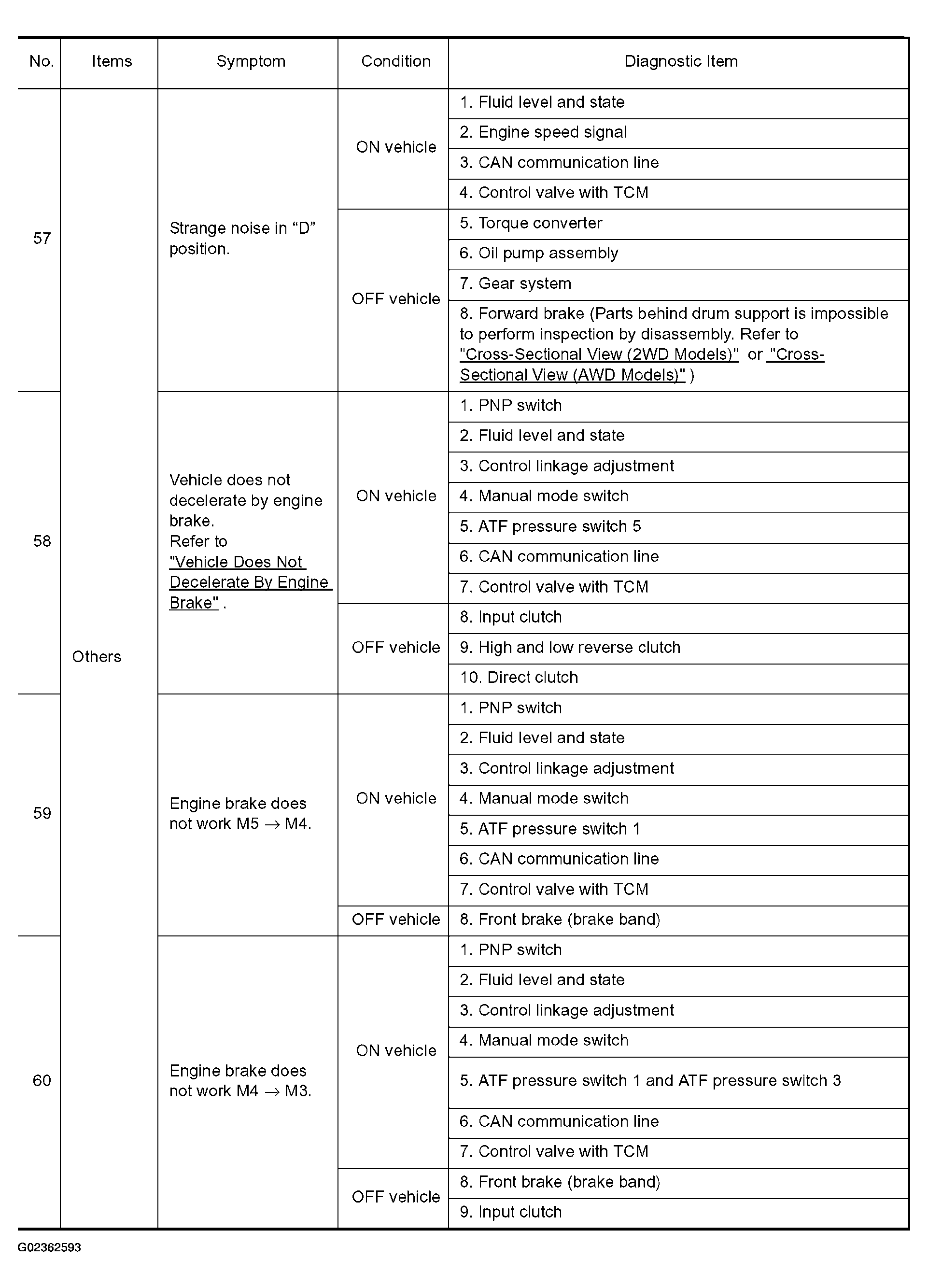

Fig 22: Trouble Diagnosis - Symptom Chart (57 - 60)

G02362593

Courtesy of NISSAN MOTOR CO., U.S.A.

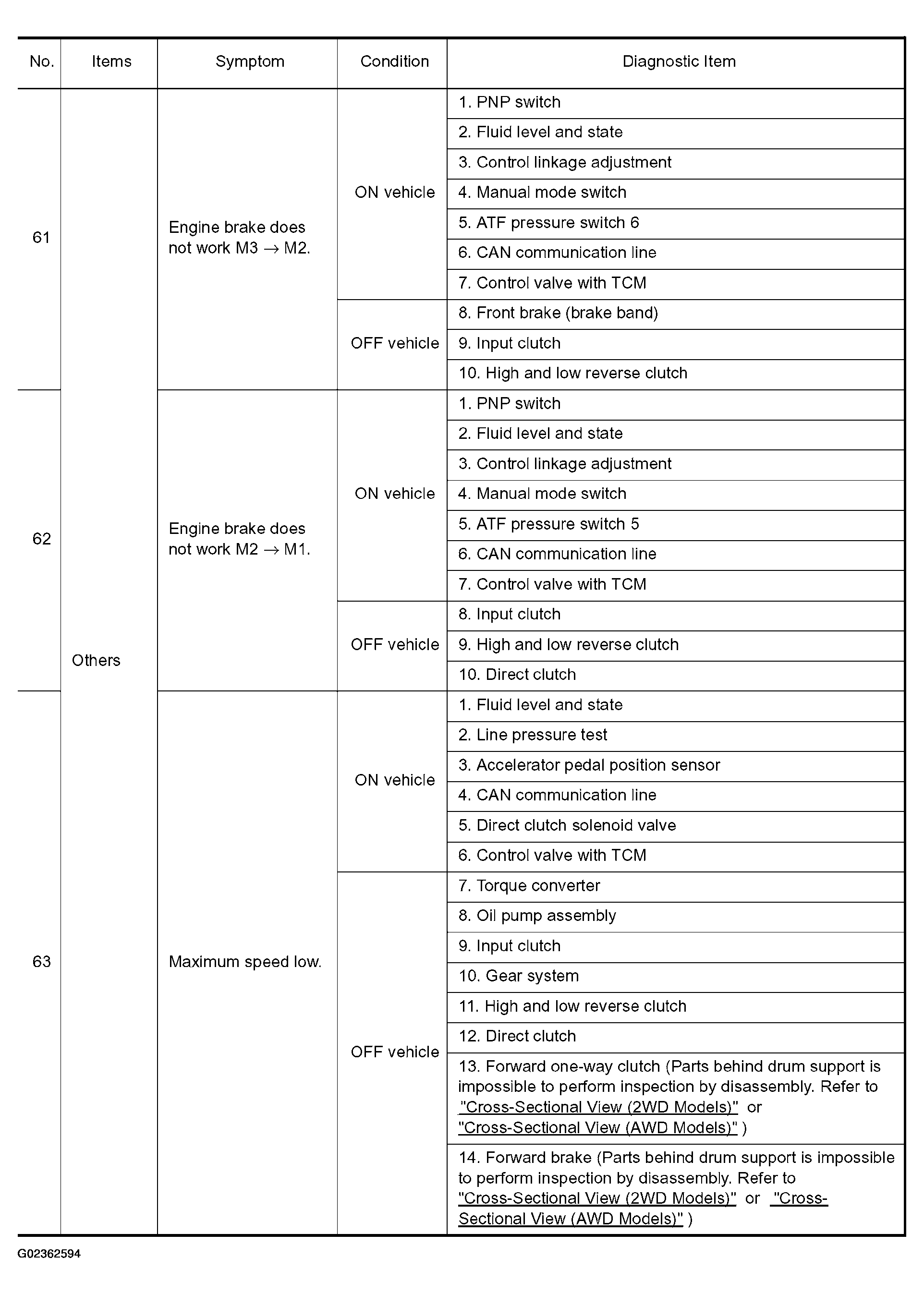

Fig 23: Trouble Diagnosis - Symptom Chart (61 - 63)

G02362594

Courtesy of NISSAN MOTOR CO., U.S.A.

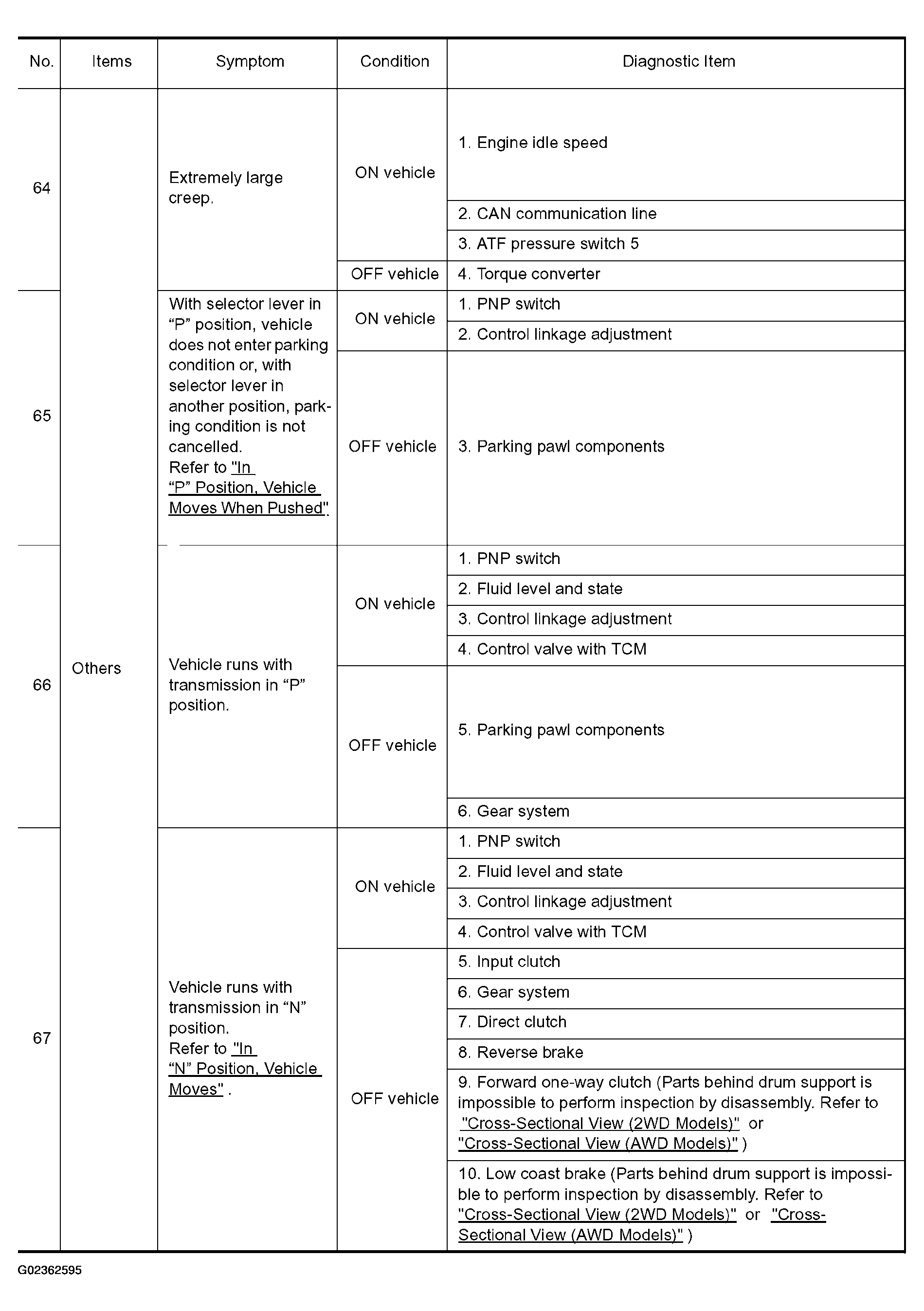

Fig 24: Trouble Diagnosis - Symptom Chart (64 - 67)

G02362595

Courtesy of NISSAN MOTOR CO., U.S.A.

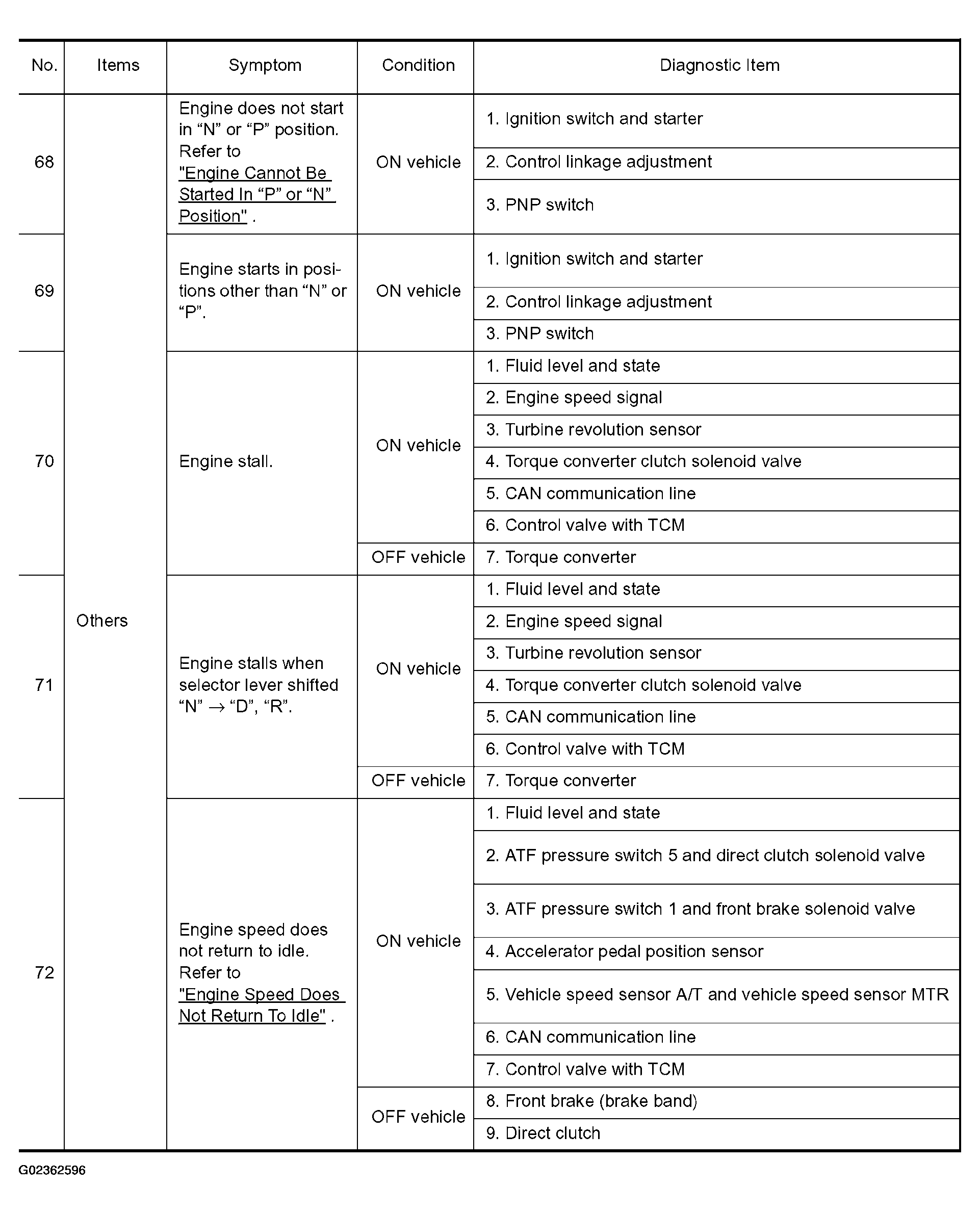

Fig 25: Trouble Diagnosis - Symptom Chart (68 - 72)

G02362596

Courtesy of NISSAN MOTOR CO., U.S.A.
