Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK INPUT SIGNAL

    WITH CONSULT-II

    1. Start the engine.
    2. Select "ECU INPUT SIGNALS" or "MAIN SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
    3. Drive vehicle in the "D" position (2nd 3rd gear), and confirm the ON/OFF actuation of the "ATF PRES SW 6".

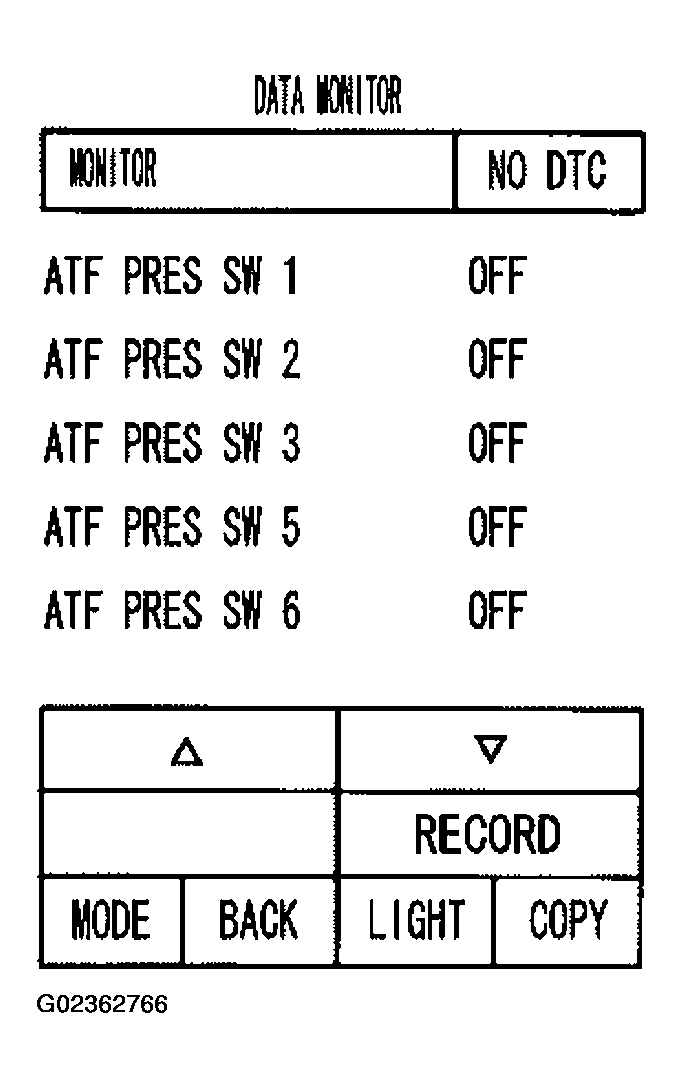

      Fig 1: Identifying Display - Data Monitor
      G02362765Courtesy of NISSAN MOTOR CO., U.S.A.

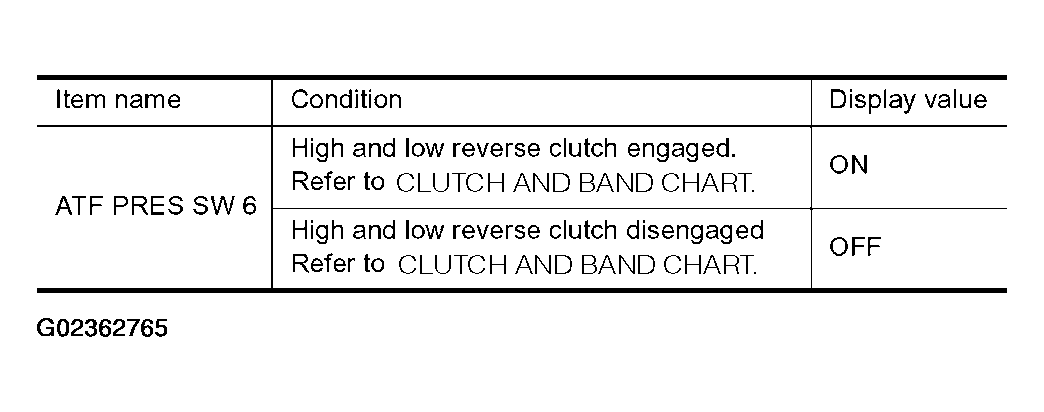

      Fig 2: Item Value Specification
      G02362766Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  4.
    2. NG: GO TO 2.
  2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

    Check TCM power supply and ground circuit. Refer to "MAIN POWER SUPPLY AND GROUND CIRCUIT ".

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair or replace damaged parts.
  3. DETECT MALFUNCTIONING ITEM

    Check the following.

    • The A/T assembly harness connector pin terminals for damage or loose connection with harness connector.

    OK or NG

    1. OK: Replace the control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
    2. NG: Repair or replace damaged parts.
  4. CHECK DTC

    Perform "DTC Confirmation Procedure".

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO  2.
