Cylinder Block Distortion: Notes

WARNING: This page is about a different car, the 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Using a scraper, remove gasket on the cylinder block surface, and also remove engine oil, scale, carbon, or other contamination.
CAUTION: Be careful not to allow gasket flakes to enter engine oil or engine coolant passages.
Measure the distortion on the cylinder block upper face at some different points in six directions with a straightedge and a feeler gauge.
1. Limit : 0.1 mm (0.004 in)
If it exceeds the limit, replace cylinder block.

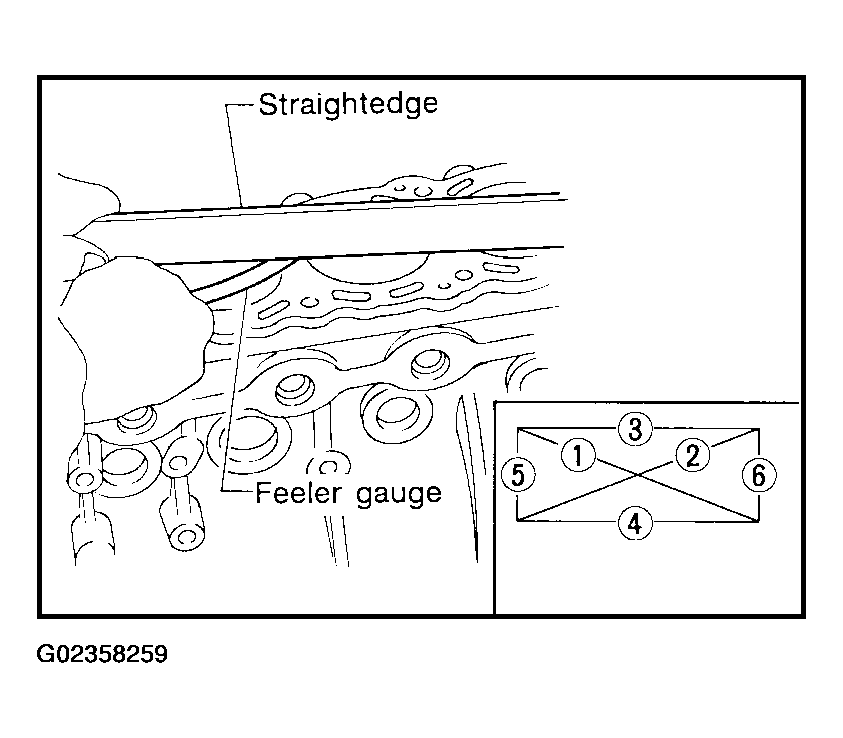

Fig 1: Measuring Distortion On Cylinder Block Upper Face
Courtesy of NISSAN MOTOR CO., U.S.A.
