Cylinder Block: Components

WARNING: This page is about a different car, the 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

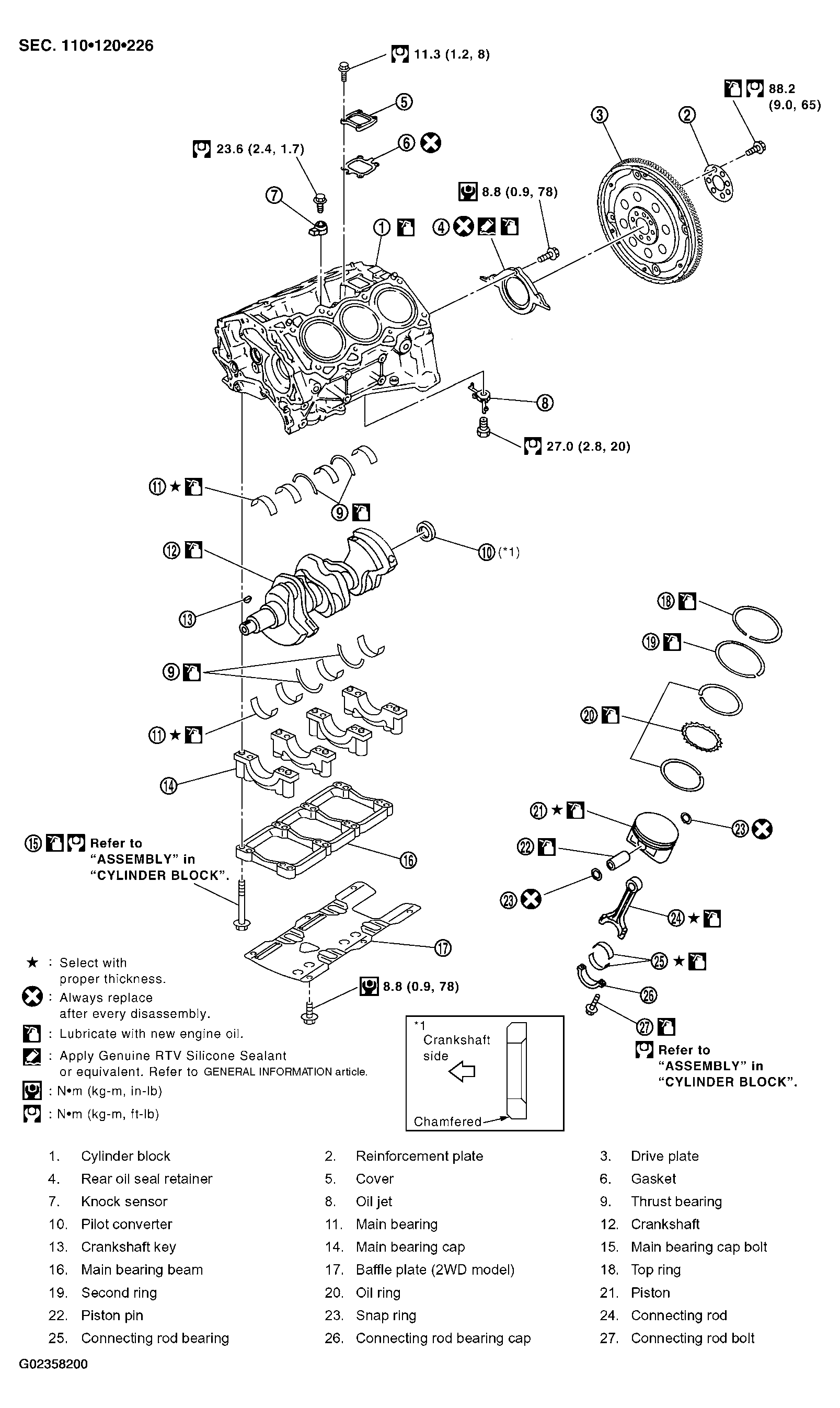

Fig 1: Cylinder Block Replacement Components With Torque Specifications (1 Of 2)
G02358200Courtesy of NISSAN MOTOR CO., U.S.A.

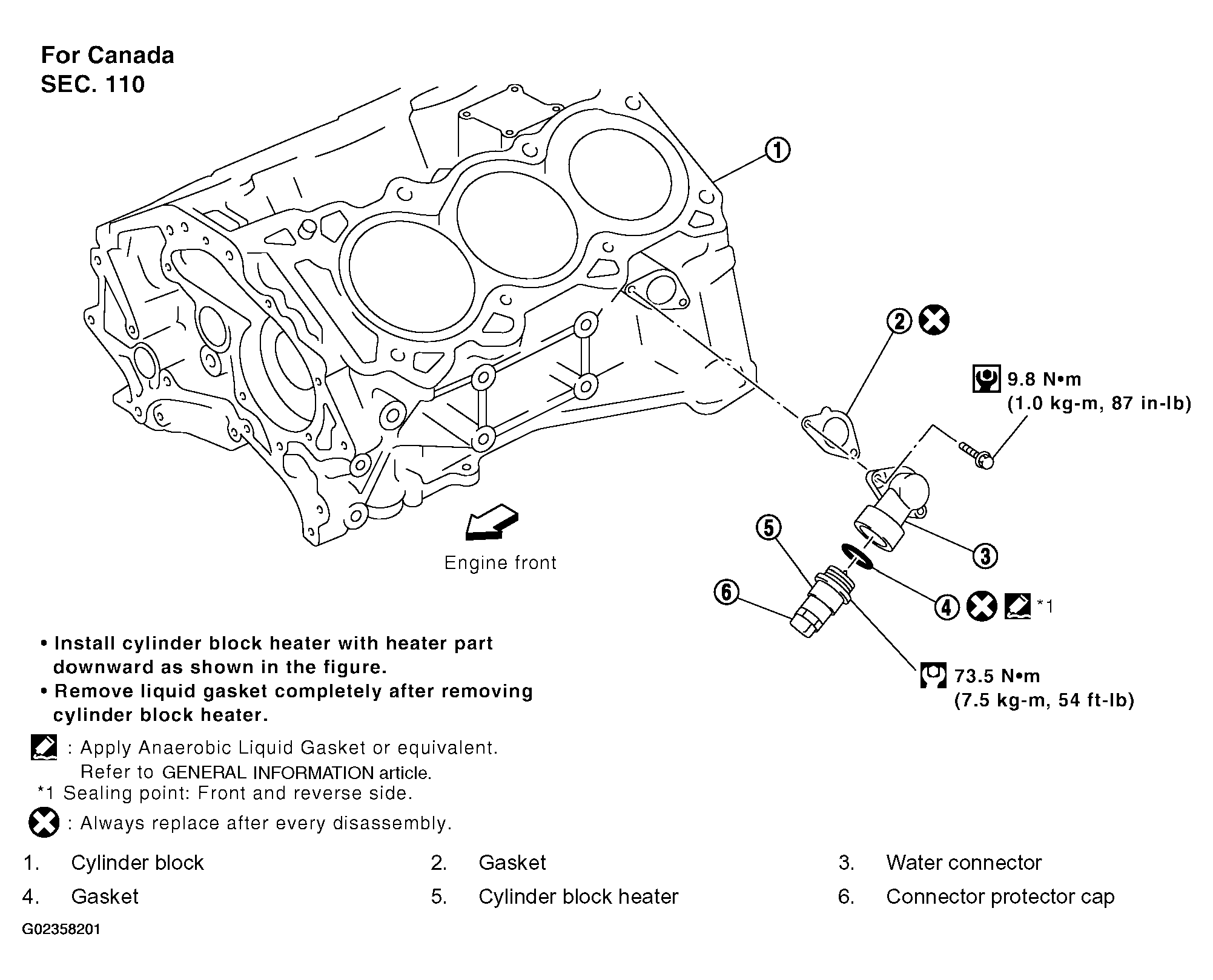

Fig 2: Cylinder Block Replacement Components With Torque Specifications (2 Of 2)
G02358201Courtesy of NISSAN MOTOR CO., U.S.A.
