Sound Is Not Heard From Subwoofer (Premium System)

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUSE
    • Check that the following fuse is not blown.
    CHECK FUSE

    Unit Terminal Signal name Fuse No.
    Audio amp. 17 Battery power 17
    1 Battery power 31

    OK or NG

    1. OK: GO TO 2.
    2. NG: If fuse is blown, be sure to eliminate cause of problem before installing new fuse. Refer to POWER DISTRIBUTION .
  2. POWER SUPPLY CIRCUIT CHECK
    1. Disconnect audio amp. connector.
    2. Check voltage between the audio amp. and ground.
      AUDIO AMP. CONNECTOR TERMINALS VOLTAGE

      Unit Terminal No. OFF ACC ON
      (+) (-)
      Connector Terminal (wire color)
      Audio amp. M112 17 (Y/G) Ground Battery voltage Battery voltage Battery voltage
      1 (Y)

    OK or NG

    1. OK: GO TO 3.
    2. NG:
      • Check connector housings for disconnected or loose terminals.
      • Repair harness or connector.

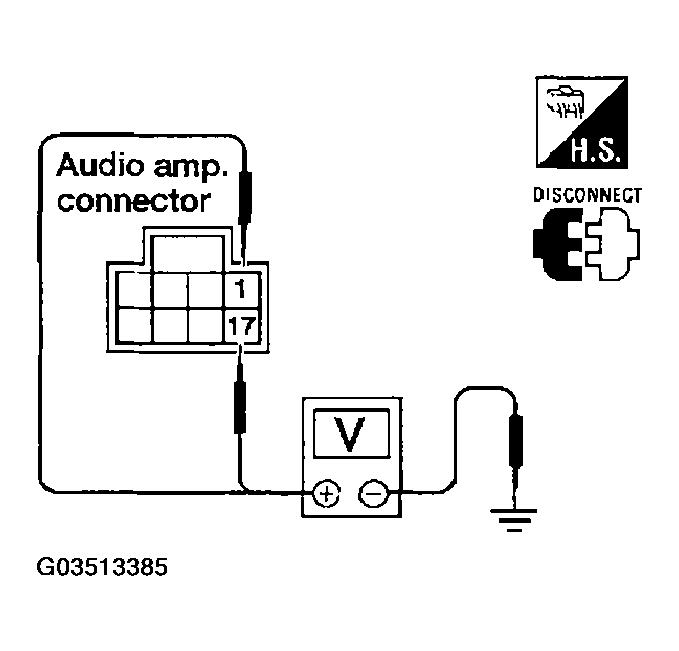

    Fig 1: Checking Voltage Between Audio Amp. Connector Terminals And Ground
    G03513385Courtesy of NISSAN MOTOR CO., U.S.A.
  3. GROUND CIRCUIT CHECK

    Check continuity between audio amp. harness connector M112 terminal 4 (B) and ground, and 20 (B) and ground.

    Continuity should exist.

    OK or NG

    1. OK: GO TO 4.
    2. NG:
      • Check connector housings for disconnected or loose terminals.
      • Repair harness or connector.

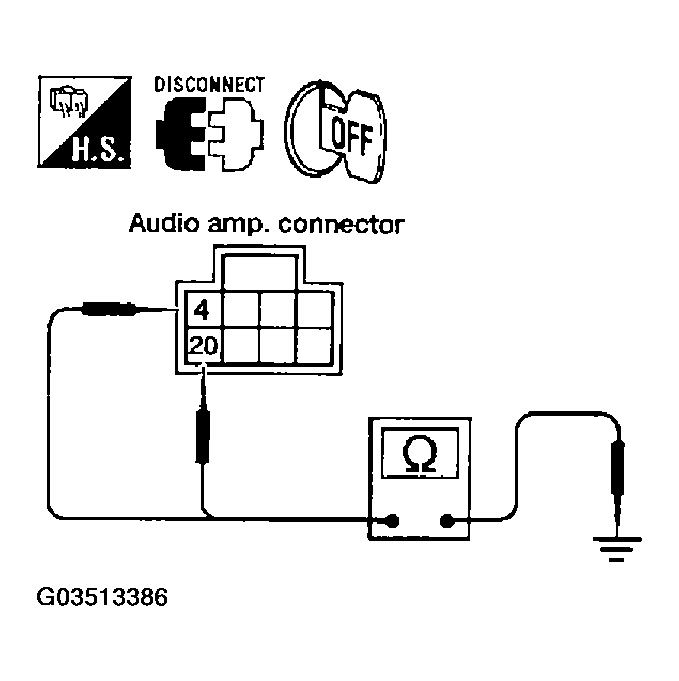

    Fig 2: Checking Continuity Between Audio Amp. Harness Connector M112 Terminal 4 (B) And Ground, And 20 (B) And Ground
    G03513386Courtesy of NISSAN MOTOR CO., U.S.A.
  4. HARNESS CHECK
    1. Disconnect audio amp. connector and subwoofer connector.
    2. Check continuity between audio amp. harness connector terminal and subwoofer harness connector harness connector terminal.
      AUDIO AMP. CONNECTOR TERMINALS AND SUBWOOFER CONNECTOR TERMINALS CONTINUITY

      Terminals Continuity
      Audio amp. Subwoofer
      Connector Terminal (Wire color) Connector Terminal (Wire color)
      M112 3 (BR/W) B72 3 (BR/W) Yes
      2 (W) 1 (W)
      18 (B) 2 (B)
      19 (BR) 4 (BR)

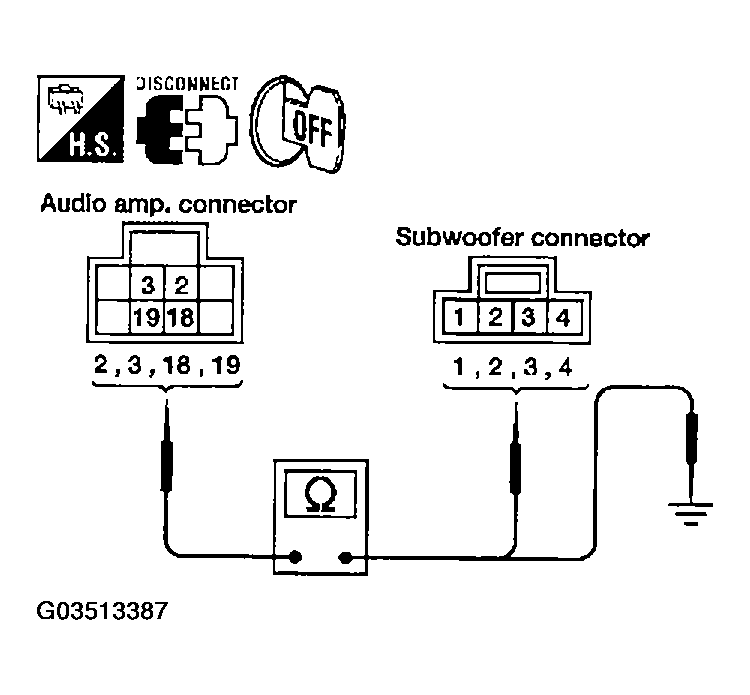

      Fig 3: Checking Continuity Between Audio Amp. Harness Connector Terminals And Subwoofer Harness Connector Terminals
      G03513387Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check continuity between BOSE speaker amp. harness connector terminal and ground.
      AUDIO AMP. CONNECTOR TERMINALS CONTINUITY

      Terminals Continuity
      Audio amp. -
      Connector Terminal (Wire color)
      M112 3 (BR) Ground No
      2 (W)
      18 (B)
      19 (BR)

    OK or NG

    1. OK: GO TO 5.
    2. NG:
      • Check connector housings for disconnected or loose terminals.
      • Repair harness or connector.
  5. WOOFER SIGNAL CHECK
    1. Connect audio amp. connector and subwoofer connector.
    2. Turn ignition switch to ACC.
    3. Check the signal audio amp. harness connector terminal with CONSULT-II or oscilloscope.

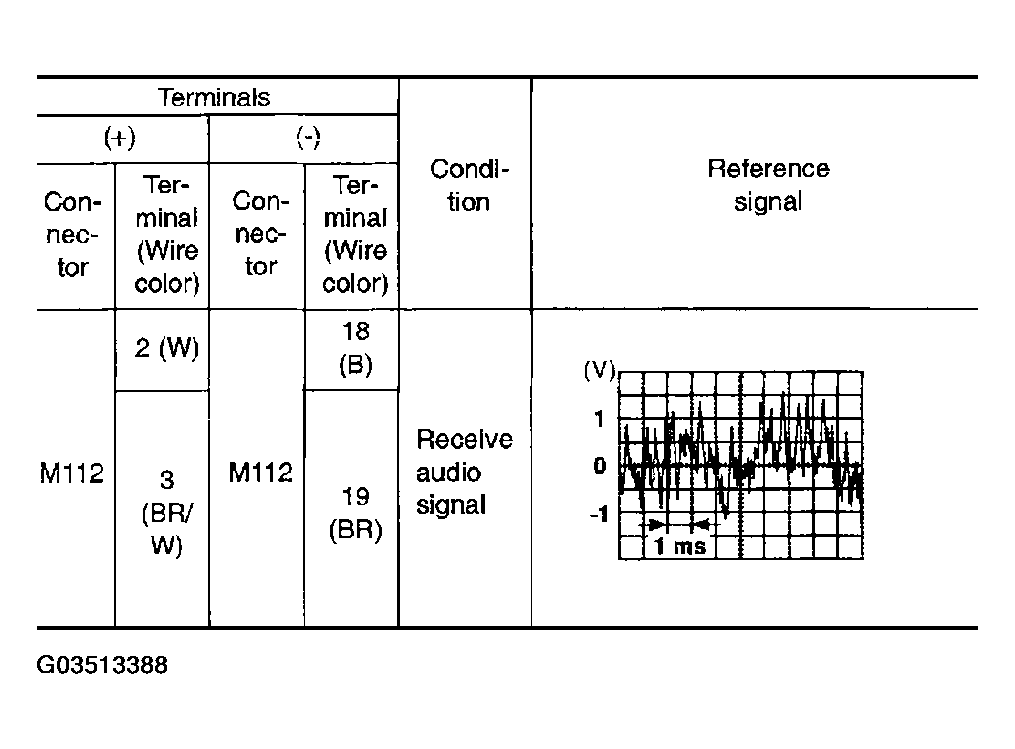

      Fig 4: Identifying Audio Amp. Harness Connector Terminals Voltage Signal Graph
      G03513388Courtesy of NISSAN MOTOR CO., U.S.A.

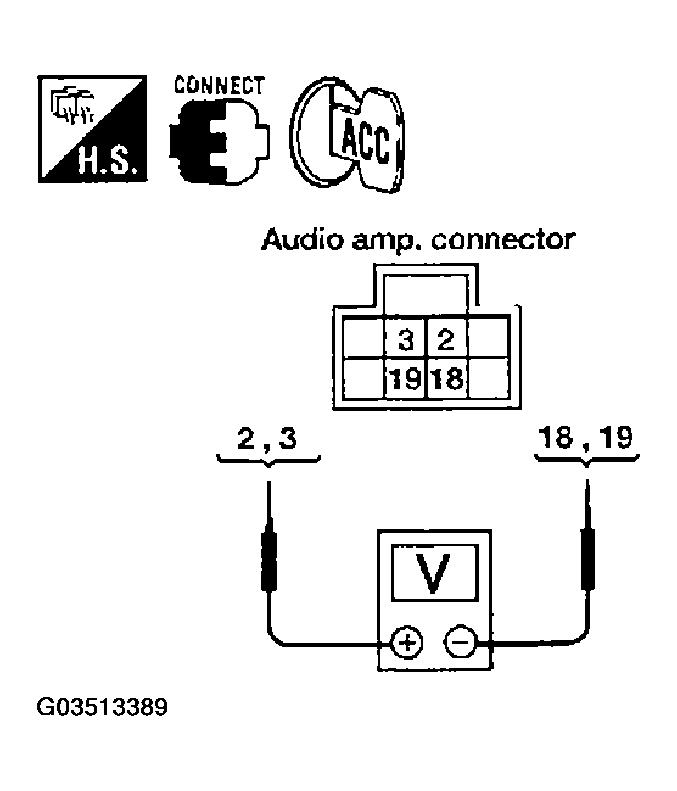

      Fig 5: Checking Voltage Between Audio Amp. Harness Connector Terminals
      G03513389Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Replace subwoofer. Refer to , "REMOVAL AND INSTALLATION OF SUBWOOFER (PREMIUM SYSTEM)  ".
    2. NG: Replace audio amp. Refer to , "REMOVAL AND INSTALLATION OF AUDIO AMP.  ".
