Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

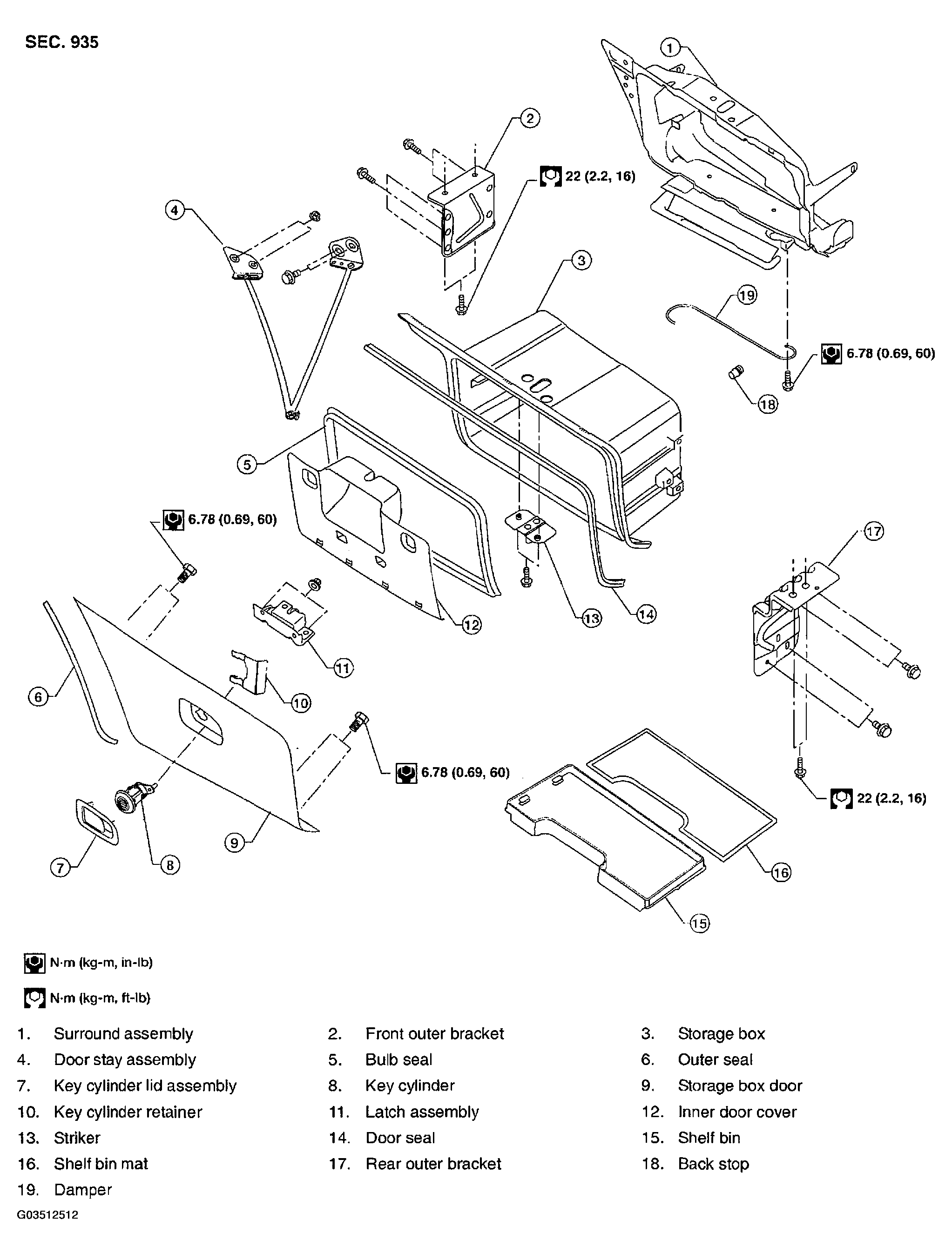

Fig 1: Removing Storage Box - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove bolts, release clips and remove storage box assembly.
Remove shelf bin and mat from storage box.
Remove storage box door from hinge.
- Remove door stay assembly.
- Disconnect damper from door.
Remove inner door cover.
Remove nuts and remove latch assembly from door.
- Remove key cylinder.
Remove outer seal and key cylinder lid assembly from door.
Remove bulb seal and door seal from storage box.
Remove screw and remove damper from surround assembly.
Remove storage box from surround assembly.

Installation is in the reverse order of removal.
