Removal And Installation

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hood ledge (right) cover and observe the following to ensure proper servicing.

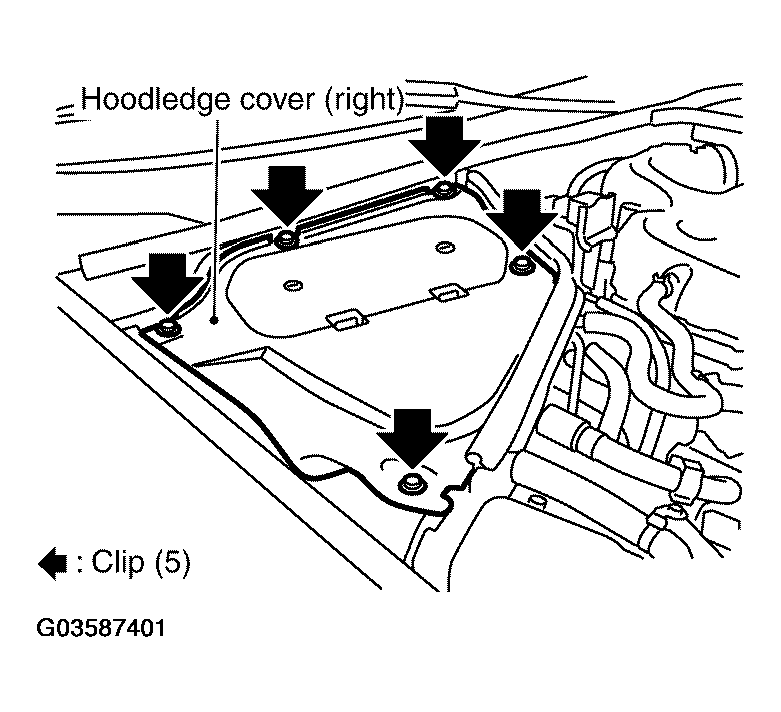

Fig 1: Identifying Hood Ledge Cover

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

When disconnecting, disconnect negative terminal first. But for connecting, connect positive terminal first.
Tighten parts to the specified torque shown below.

Battery fix frame mounting nut: 4.4 N.m (0.45 kg-m, 39 in-lb)

Battery terminal nut: 5.4 N.m (0.55 kg-m, 48 in-lb)

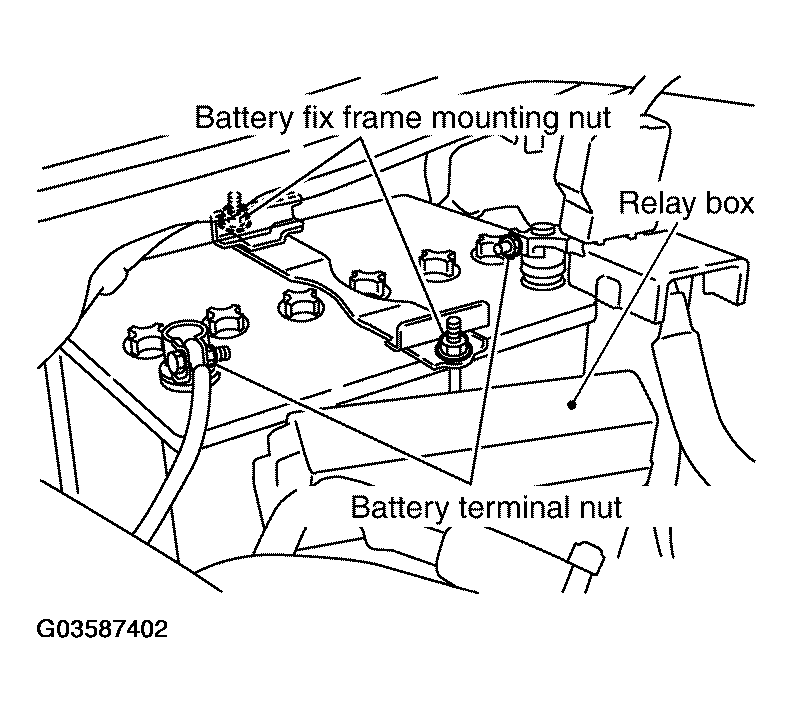

Fig 2: Tightening Battery Fasteners

Courtesy of NISSAN MOTOR CO., U.S.A.
