Rear Disc Brake: Component

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

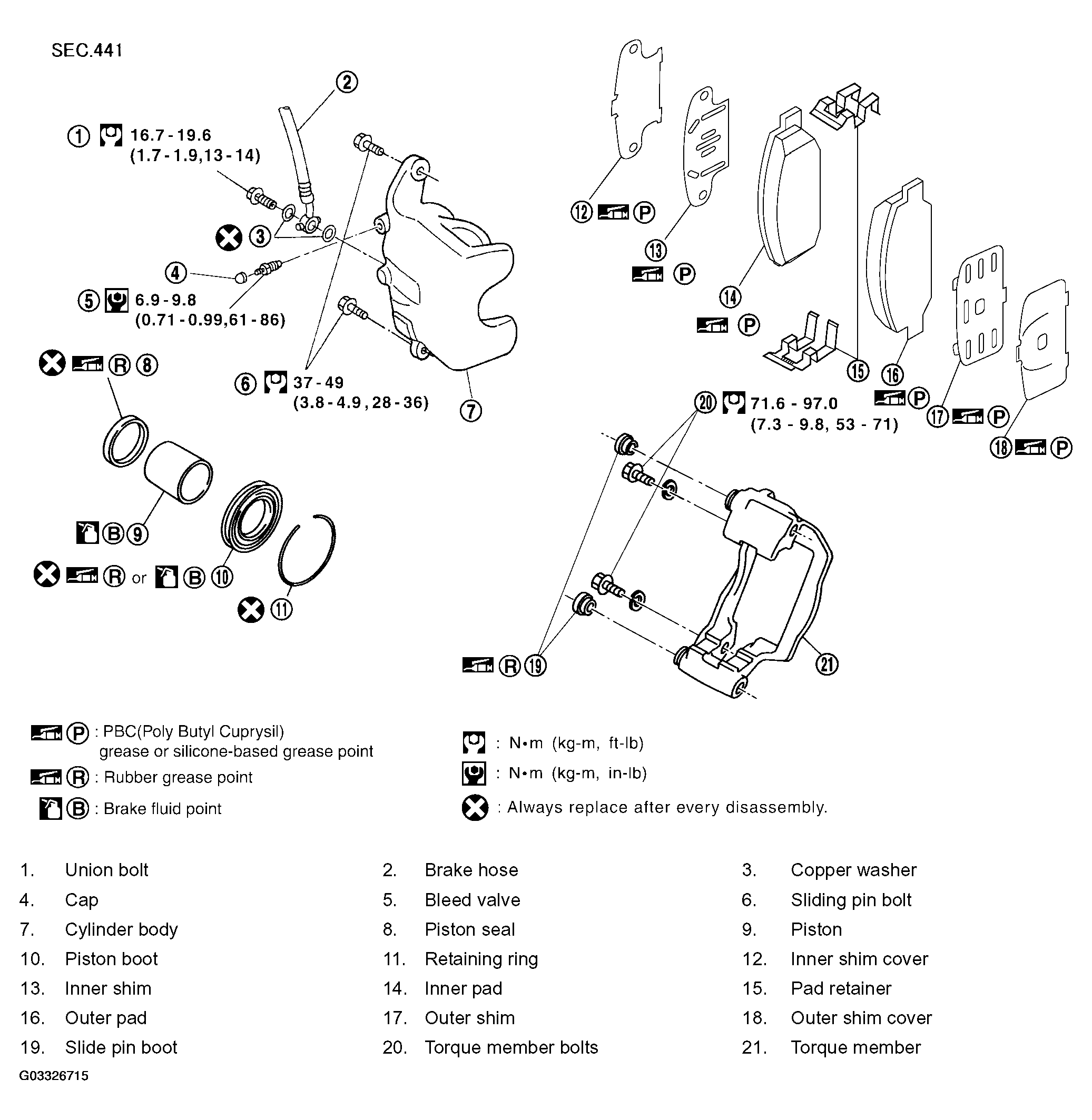

Fig 1: Rear Disc Brake Component With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Clean dust on the caliper and brake pad with a vacuum dust collector. Do not blow with compressed air.
While removing cylinder body, never depress brake pedal because the piston will pop out.
It is not necessary to remove mounting bolts on the torque member and brake hose except for disassembly or replacement of caliper assembly. In this case, hang cylinder body with a wire so that brake hose is not under tension.
Do not damage piston boot.
Always replace shims and shim covers as a set when replacing brake pads.
Keep the rotor from brake fluid.
