Caliper Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove caliper assembly from vehicle.
  2. Remove sliding pin bolts from cylinder body, and remove pad, shim, shim cover and pad retainer from torque member.
    CAUTION: When removing pad retainer from torque member, lift pad retainer in the direction shown by the arrow (shown in the figure) so as not to deform it.

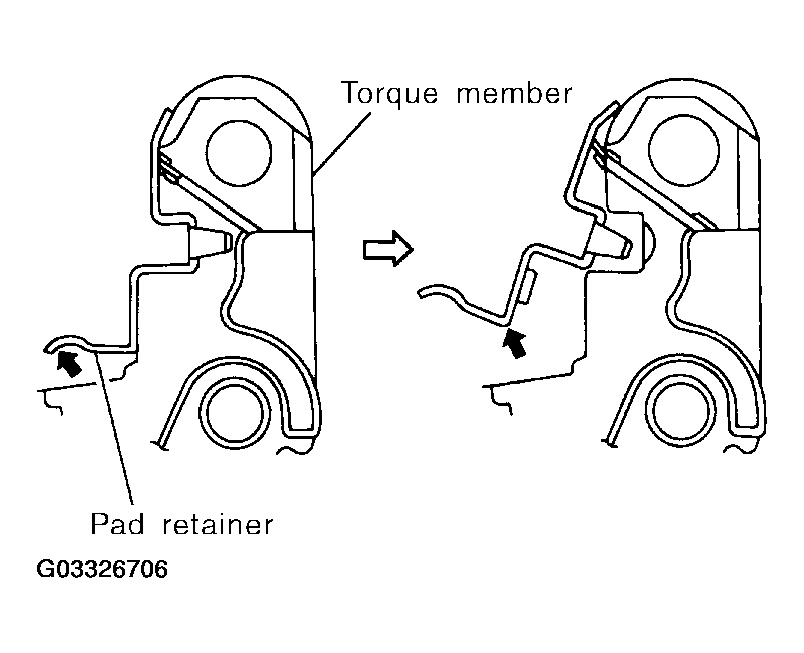

    Fig 1: Removing Pad, Shim, Shim Cover & Pad Retainer From Torque Member
    G03326706Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove sliding pins and sliding pin boots from torque member.
  4. Place a wooden block as shown at the right, and blow air from union bolt mounting hole to remove pistons and piston boots.

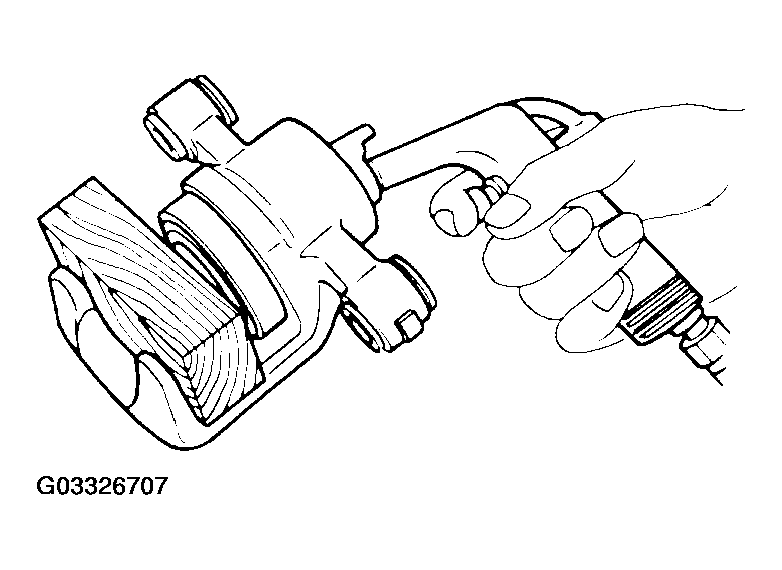

    Fig 2: Locating Wooden Block & Blow Air
    G03326707Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove piston seal with a flat-bladed screw driver.

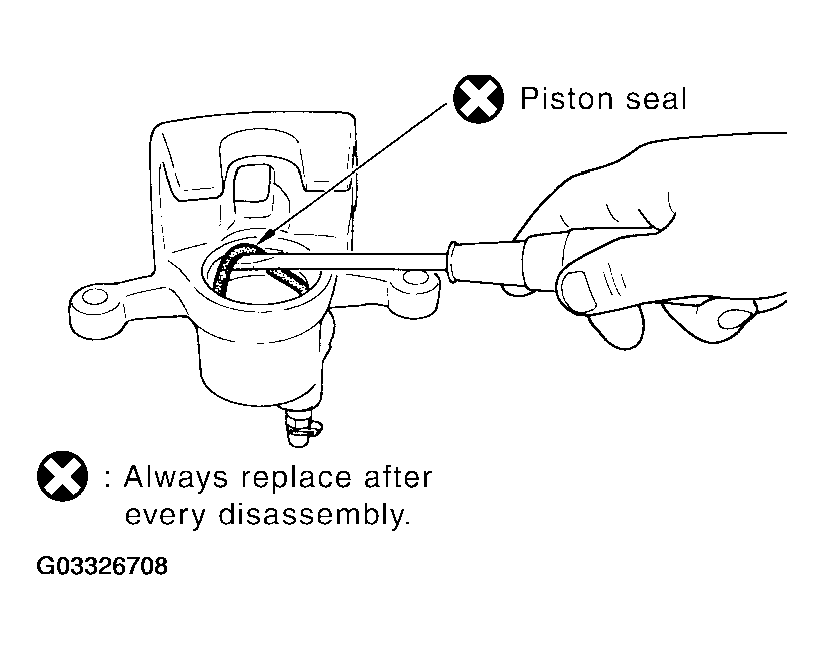

    Fig 3: Removing Piston Seal With A Flat-Bladed Screw Driver
    G03326708Courtesy of NISSAN MOTOR CO., U.S.A.
