Home >> Nissan-Datsun >> 2003 >> Sentra SE-R, Standard >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Rear Axle >> Wheel Hub >> Components

Wheel Hub: Components

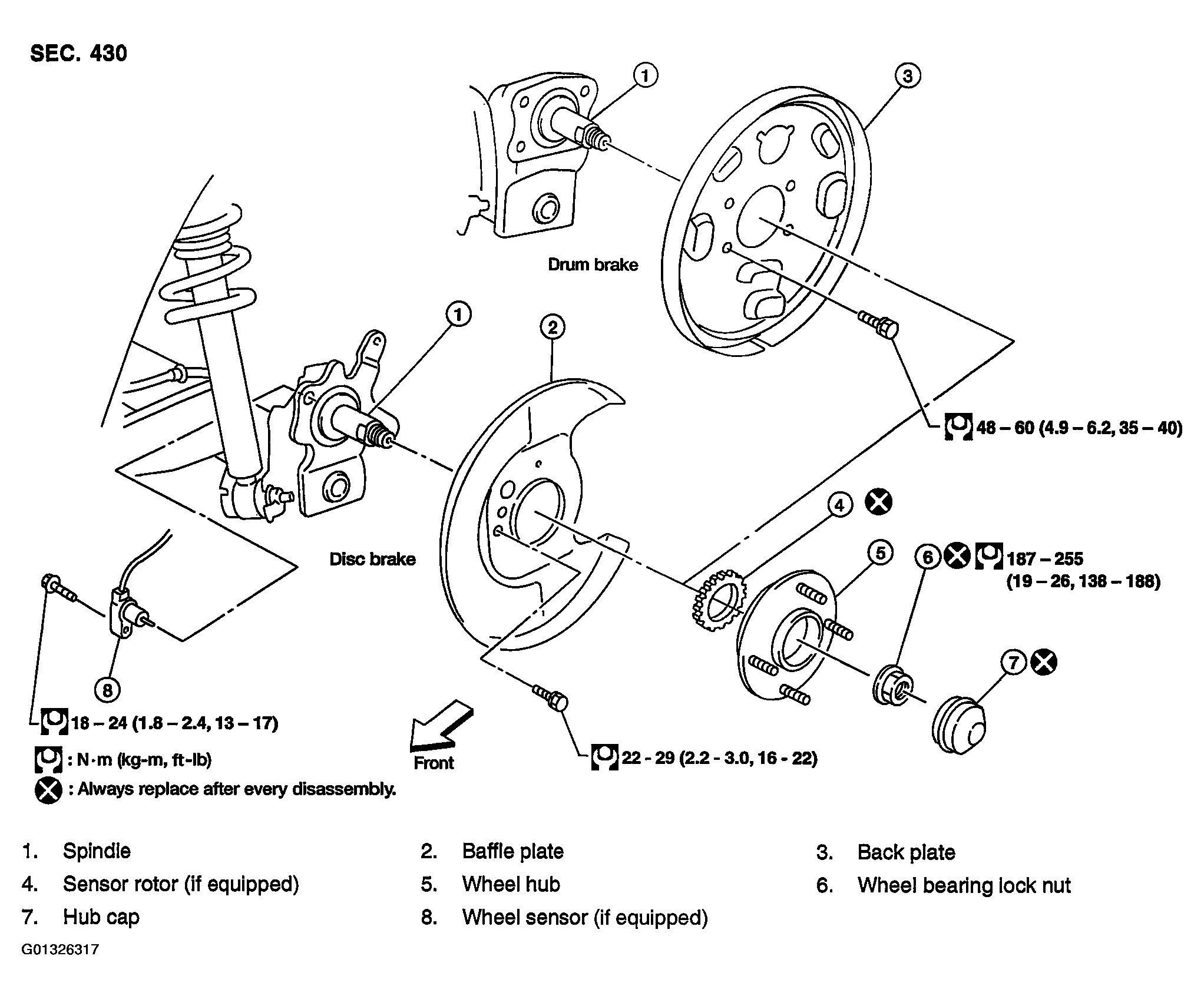

Fig 1: Identifying Wheel Hub Components

G01326317

Courtesy of NISSAN MOTOR CO., U.S.A.
