Sentra SE-R, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Abs & Abs/TCS
>>
Description
>>
ABS Hydraulic Circuit
ABS Hydraulic Circuit

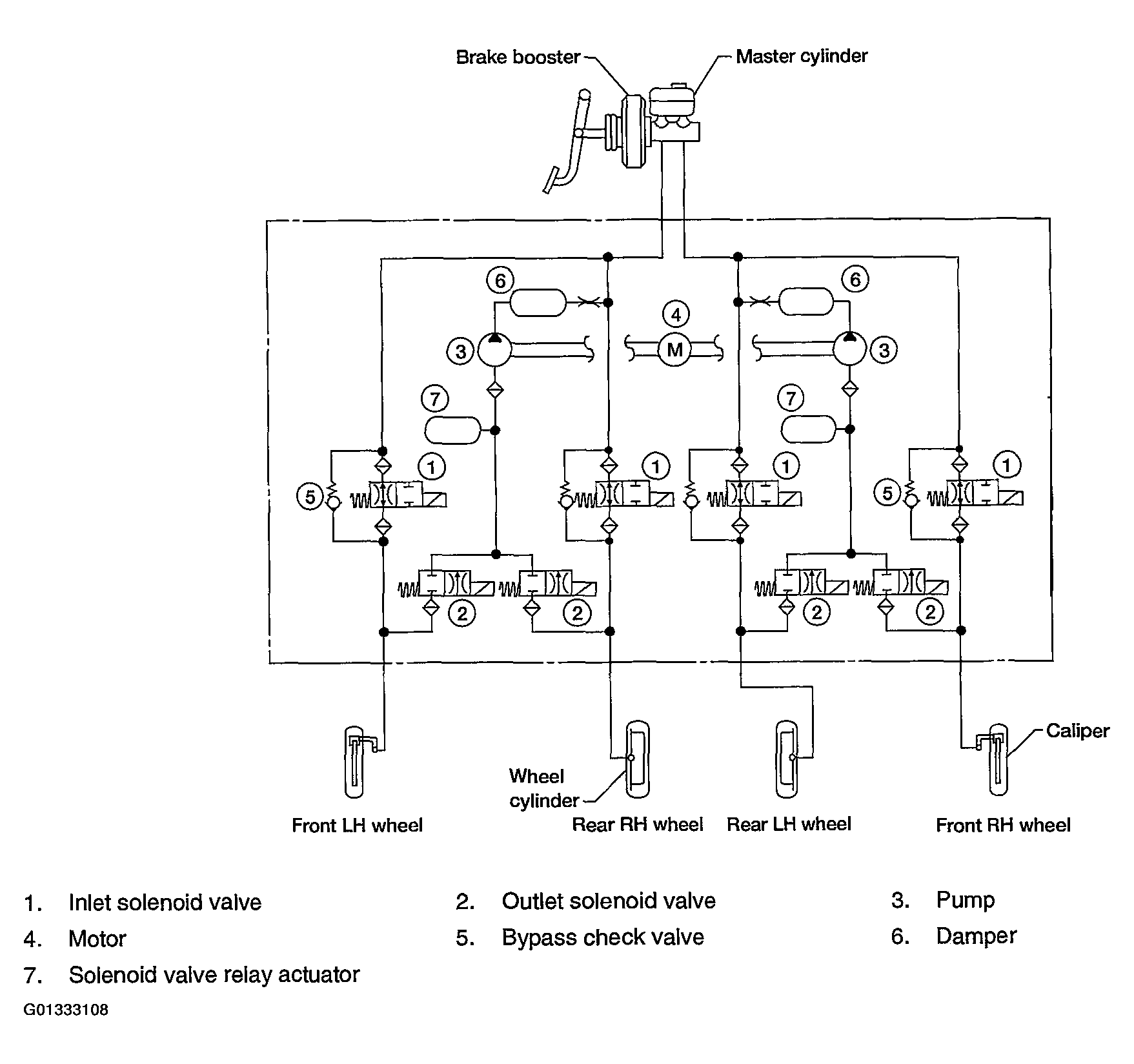

Fig 1: ABS Hydraulic Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
