Engine Controls - Self-Diagnostics (Qr25DE)
>>
Diagnostic Tests
>>
DTC P2135: Throttle Position (TP) Sensor Circuit Range/Performance Problem
>>
Component Inspection
Component Inspection
For component inspection, see
Fig 1
.

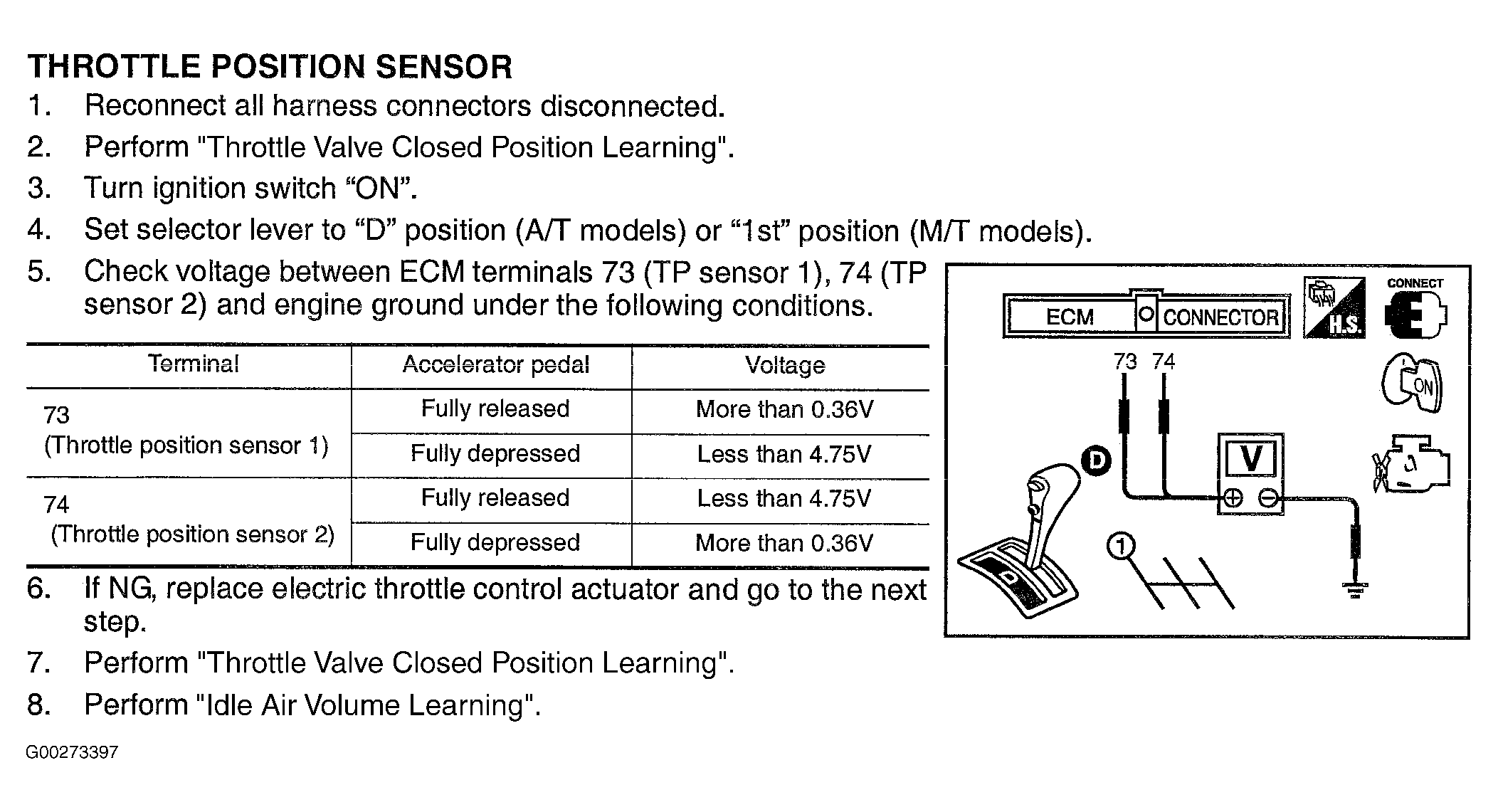

Fig 1: DTC P2135 Component Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
