Engine Controls - Self-Diagnostics (Qr25DE)
>>
Diagnostic Tests
>>
DTC P0452: EVAP Control System Pressure Sensor Low Input
>>
Component Inspection
Component Inspection
For component inspection, see
Fig 1
.

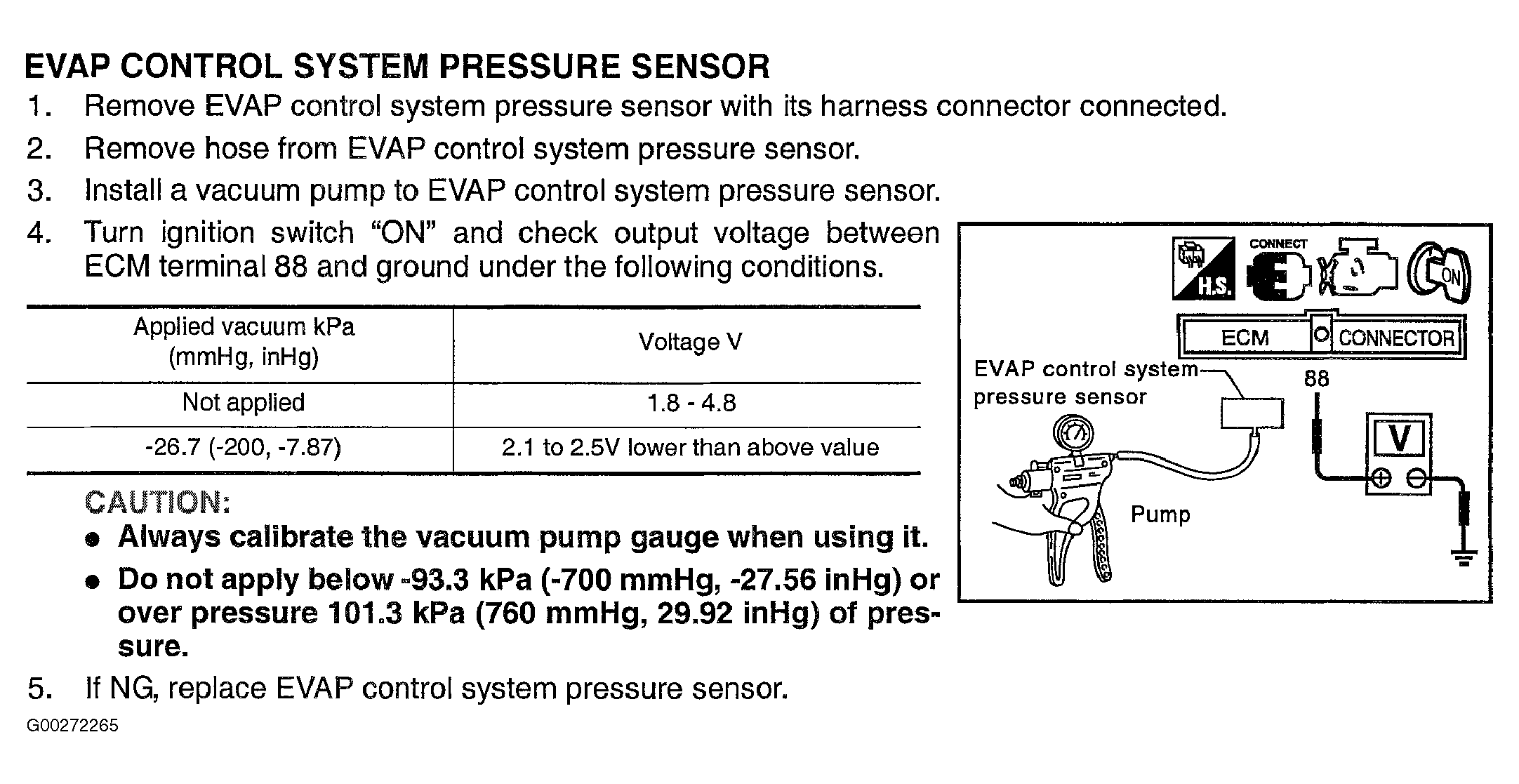

Fig 1: DTC P0452 Component Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
