Diagnostic Procedure

For the diagnostic procedure, see Fig 1 and Fig 2 .

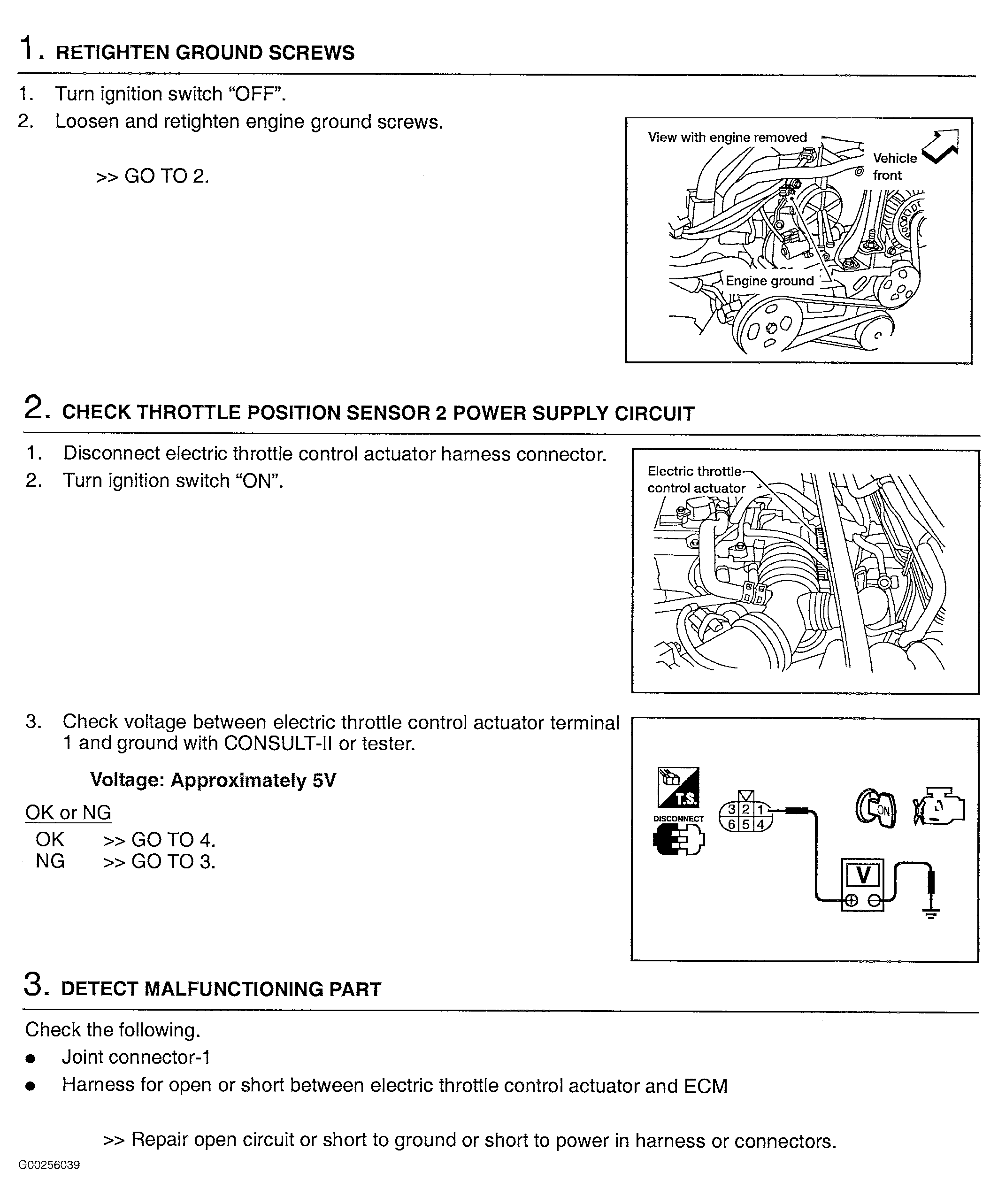

Fig 1: DTCs P0122 & P0123 Diagnostic Procedure (Steps 1-3)
G00256039Courtesy of NISSAN MOTOR CO., U.S.A.

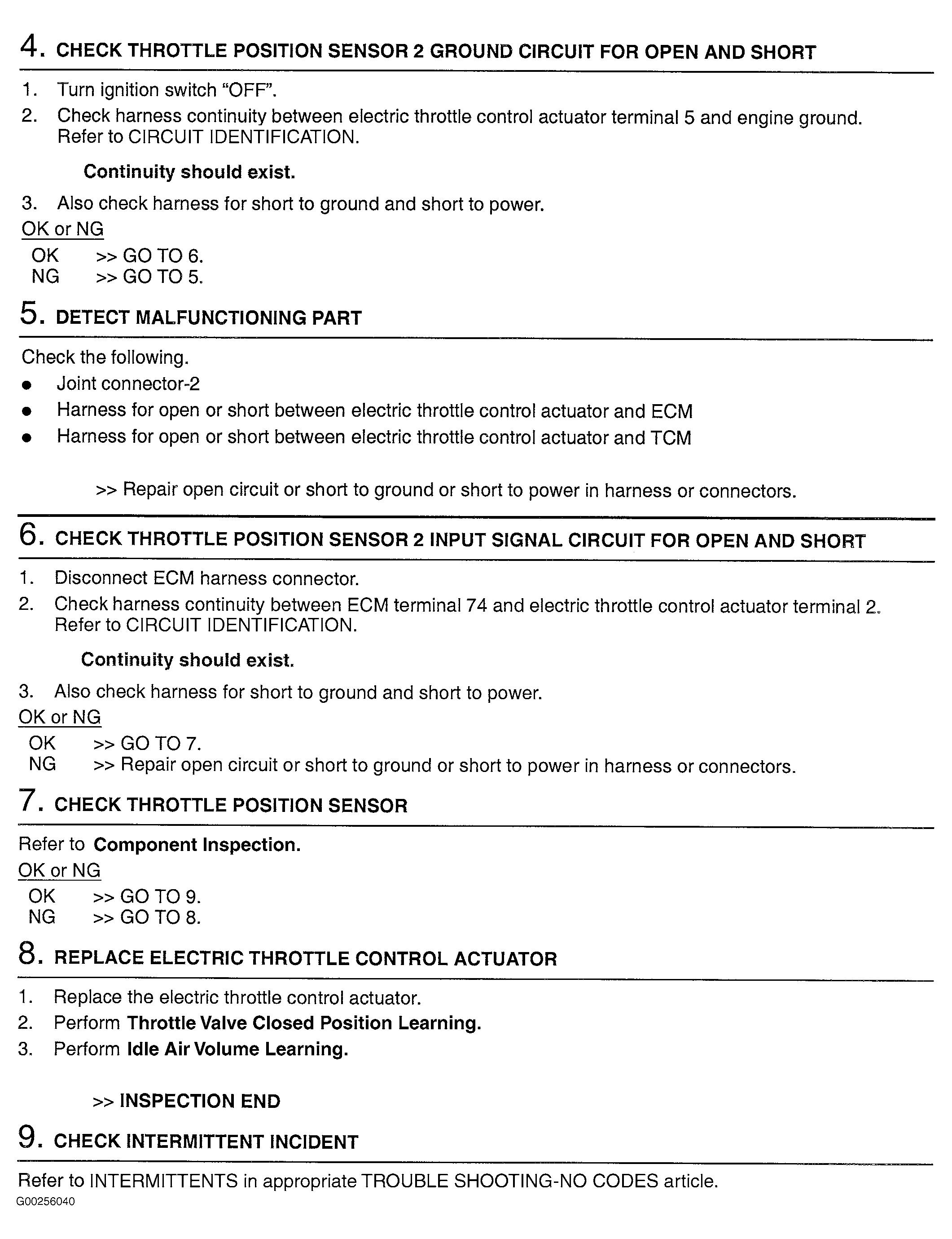

Fig 2: DTCs P0122 & P0123 Diagnostic Procedure (Steps 4-9)
G00256040Courtesy of NISSAN MOTOR CO., U.S.A.
