DTC P0112: Intake Air Temperature Sensor Circuit Low Input & DTC P0113: Intake Air Temperature Sensor Circuit High Input: Description

For a system description, see Fig 1 .

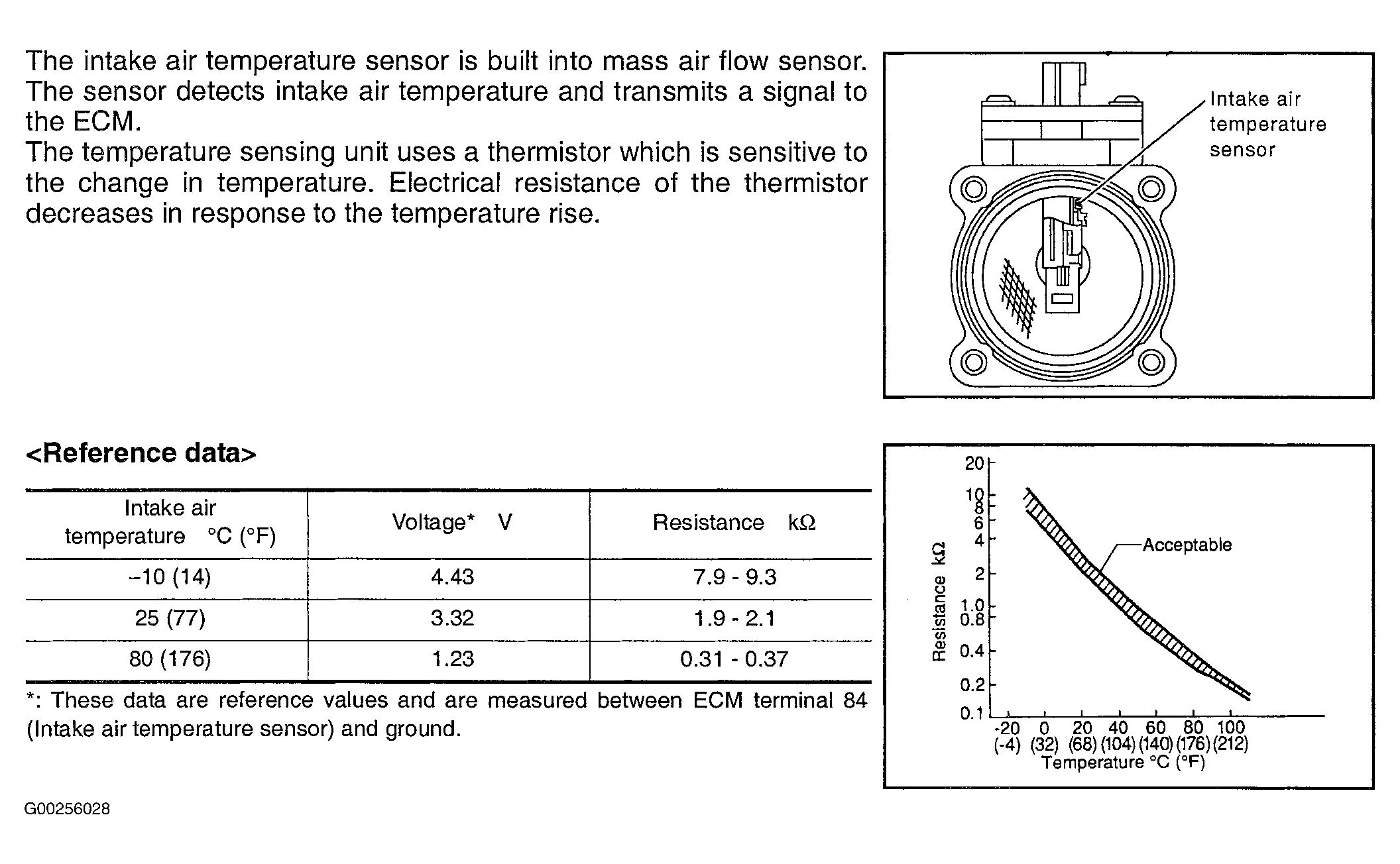

Fig 1: DTCs P0112 & P0113 System Description
G00256028Courtesy of NISSAN MOTOR CO., U.S.A.
