Component Inspection

For component inspection, see Fig 1 .

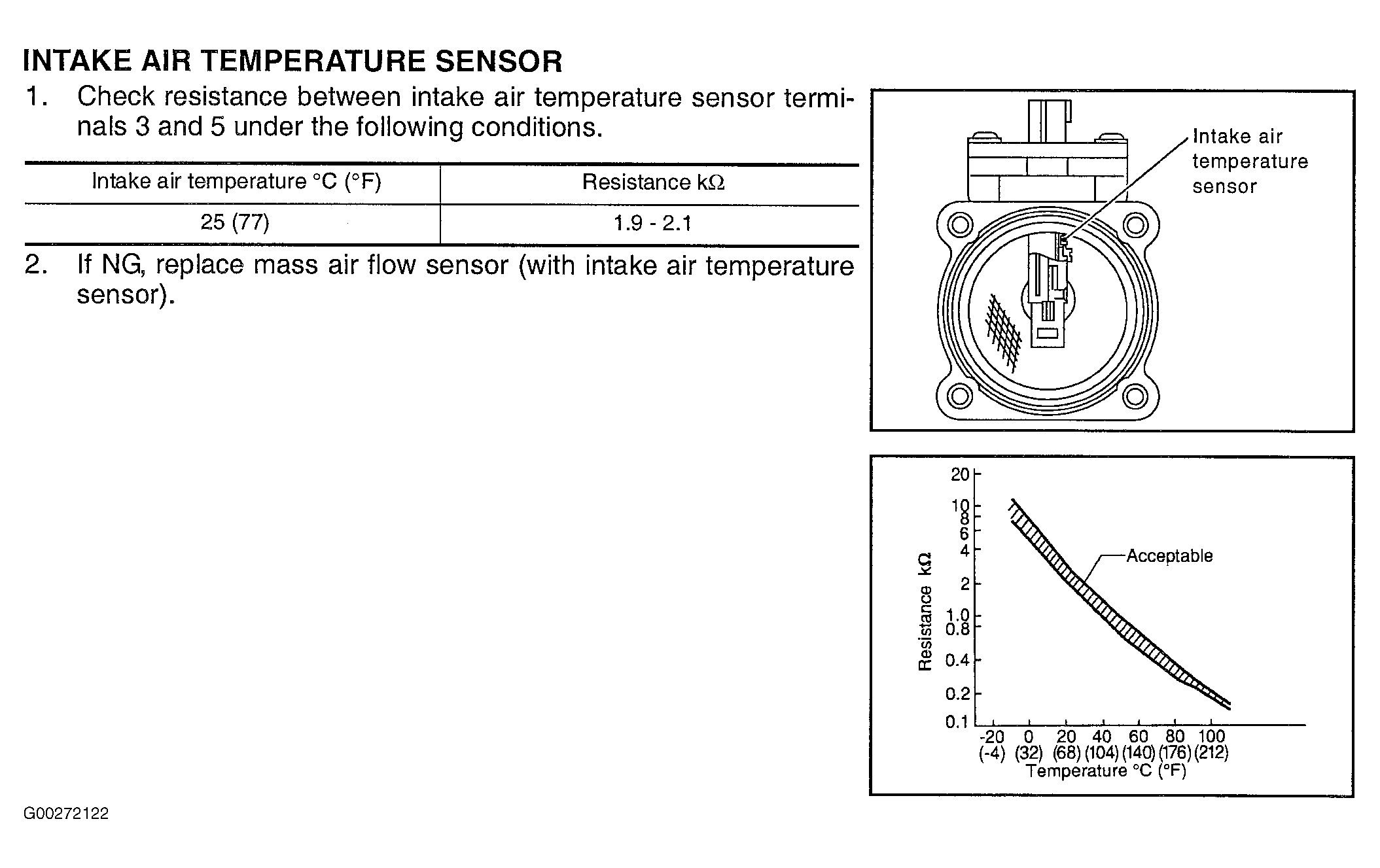

Fig 1: DTCs P0112 & P0113 Component Inspection
G00272122Courtesy of NISSAN MOTOR CO., U.S.A.
