Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 3 .

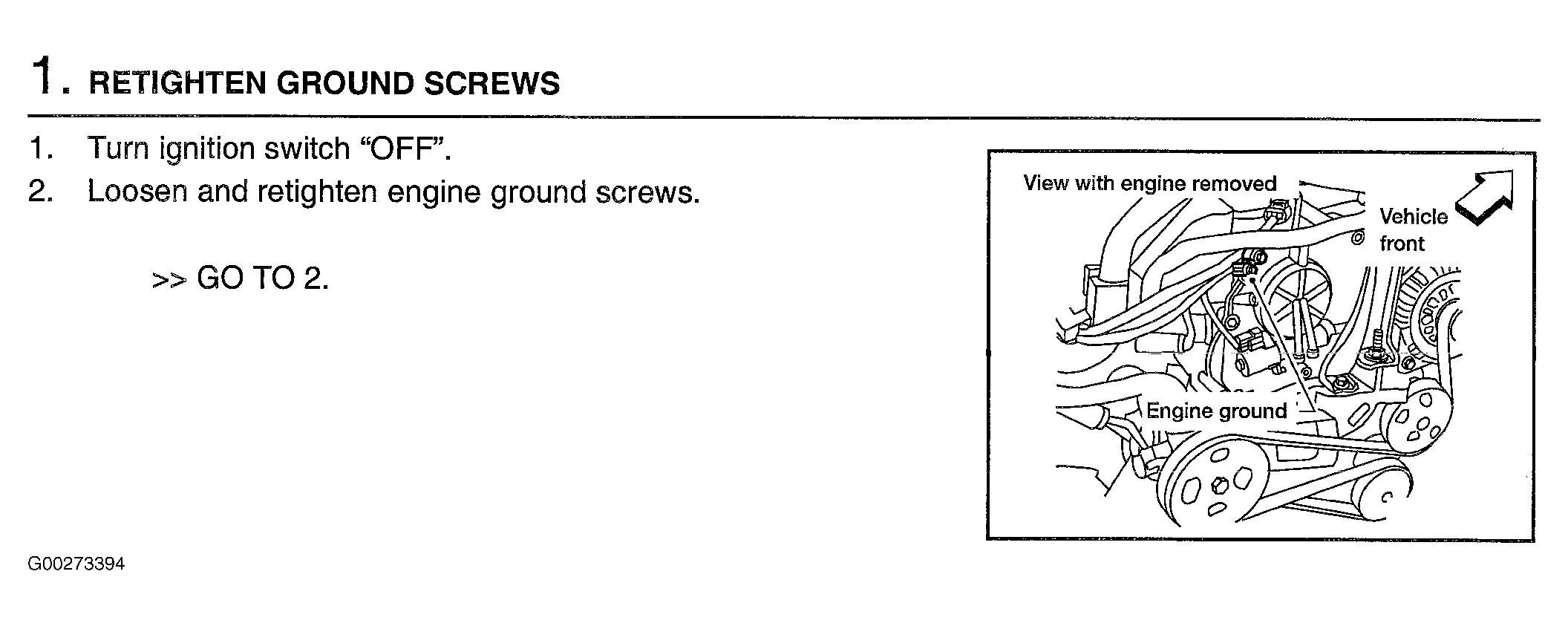

Fig 1: DTC P2135 Diagnostic Procedure (Step 1)
G00273394Courtesy of NISSAN MOTOR CO., U.S.A.

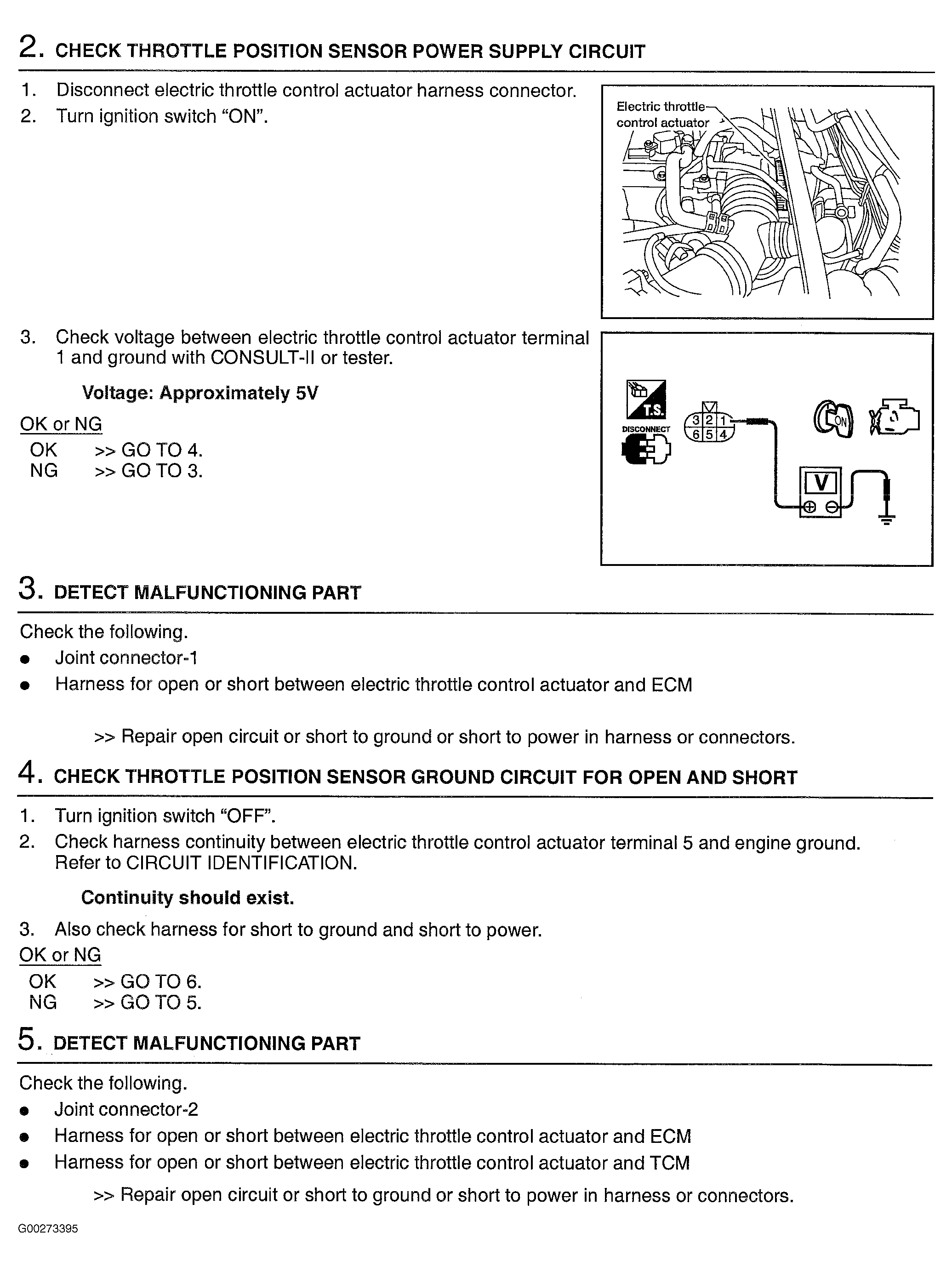

Fig 2: DTC P2135 Diagnostic Procedure (Steps 2-5)
G00273395Courtesy of NISSAN MOTOR CO., U.S.A.

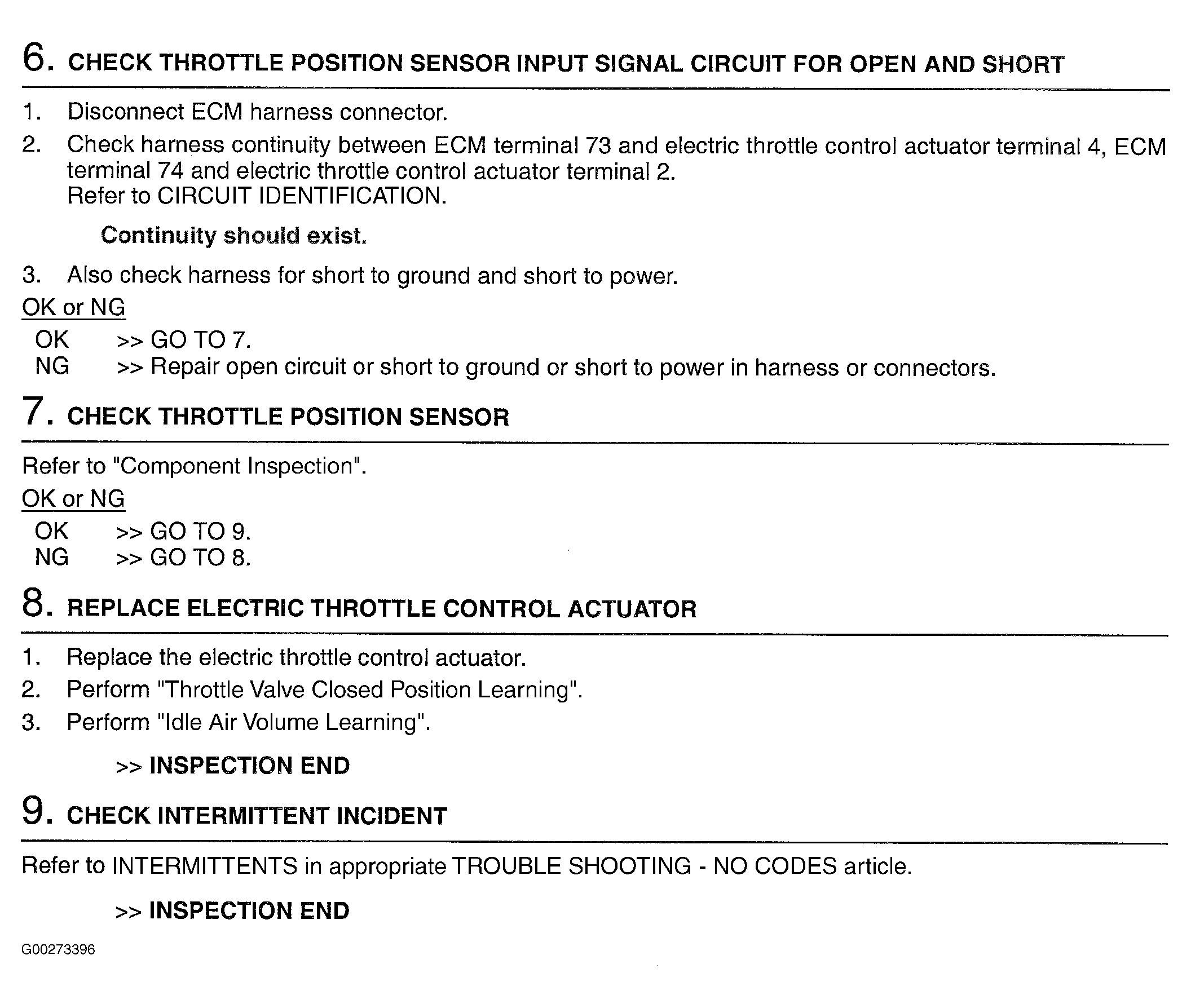

Fig 3: DTC P2135 Diagnostic Procedure (Steps 6-9)
G00273396Courtesy of NISSAN MOTOR CO., U.S.A.
