Overall Function Check

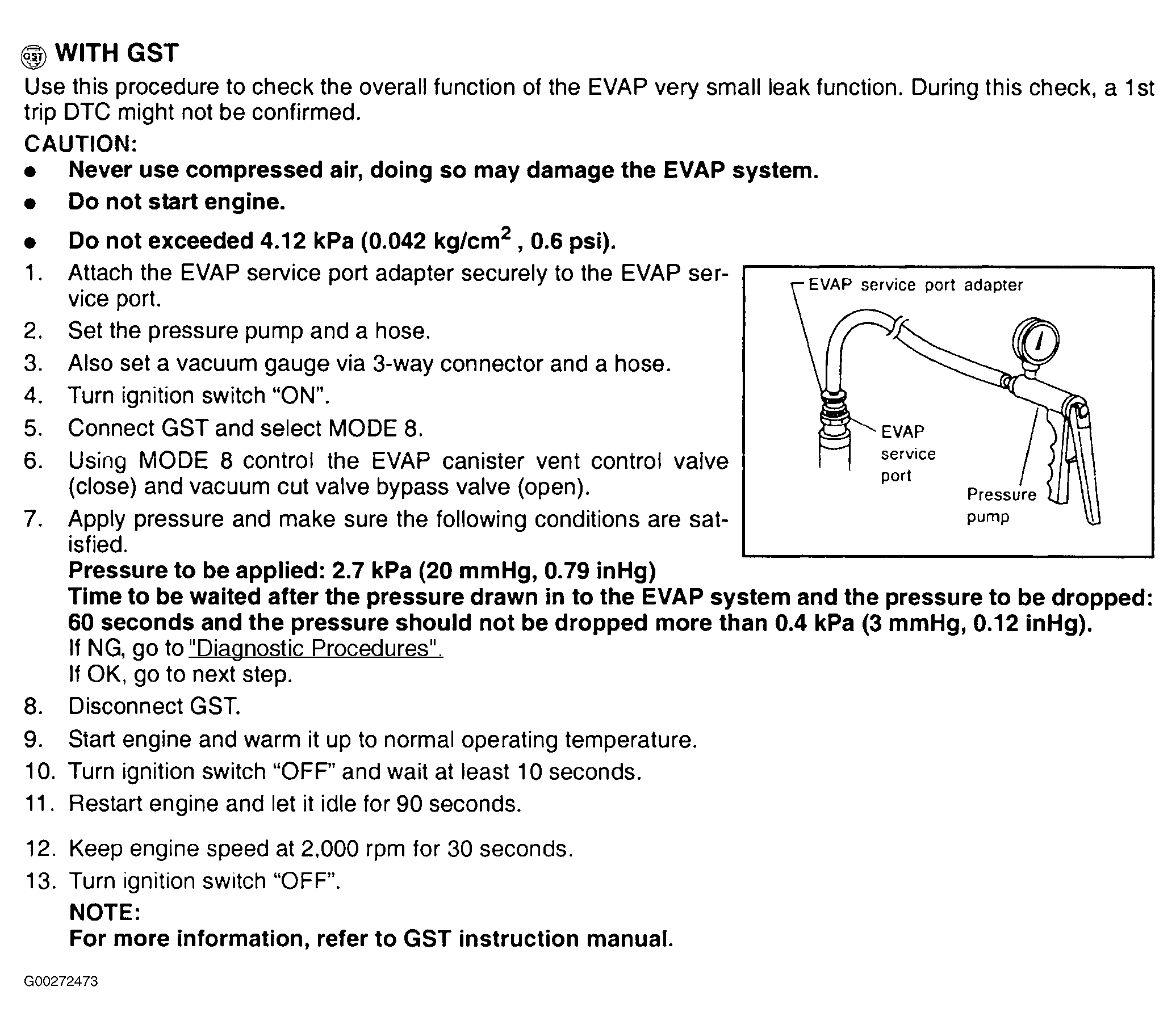

For an overall function check, see Fig 1 .

Fig 1: DTC P1456 Overall Function Check
G00272473Courtesy of NISSAN MOTOR CO., U.S.A.
