DTC Confirmation Procedure

NOTE: If DTC P0442 is displayed with P1448, perform trouble diagnosis for DTC P1448 first. See DTC P1448: EVAP CANISTER VENT CONTROL VALVE OPEN  .
NOTE: If DTC confirmation procedure has previously been conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

For DTC confirmation procedure, see Fig 1 .

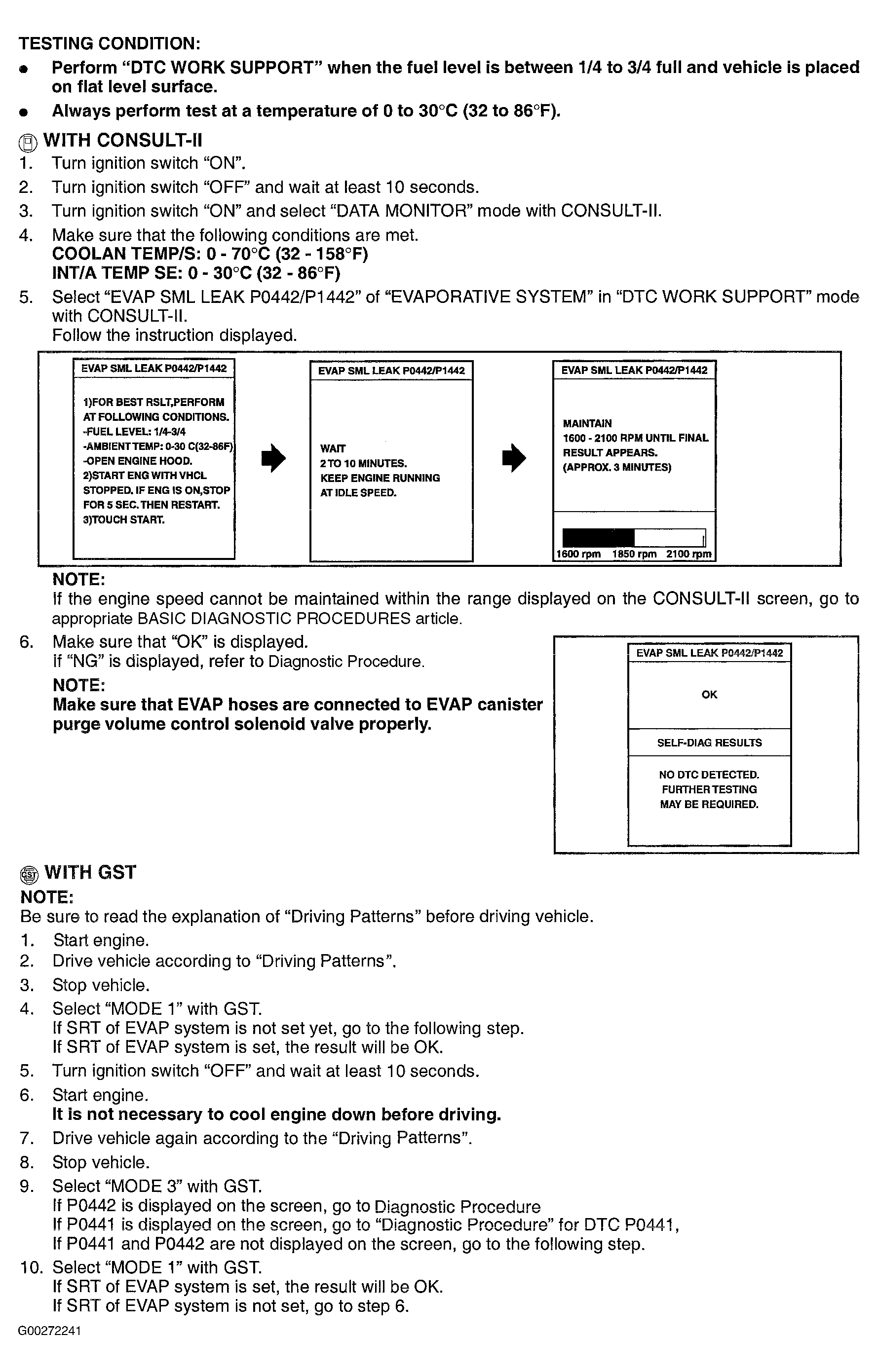

Fig 1: DTC P0442 Confirmation Procedure
G00272241Courtesy of NISSAN MOTOR CO., U.S.A.
