Home >> Nissan-Datsun >> 2003 >> Sentra SE-R, Standard >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Controls - Self-Diagnostics (Qr25DE) >> Diagnostic Tests >> DTC P0441: EVAP Control System Incorrect Purge Flow >> Overall Function Check

Overall Function Check

For overall function check, see Fig 1 .

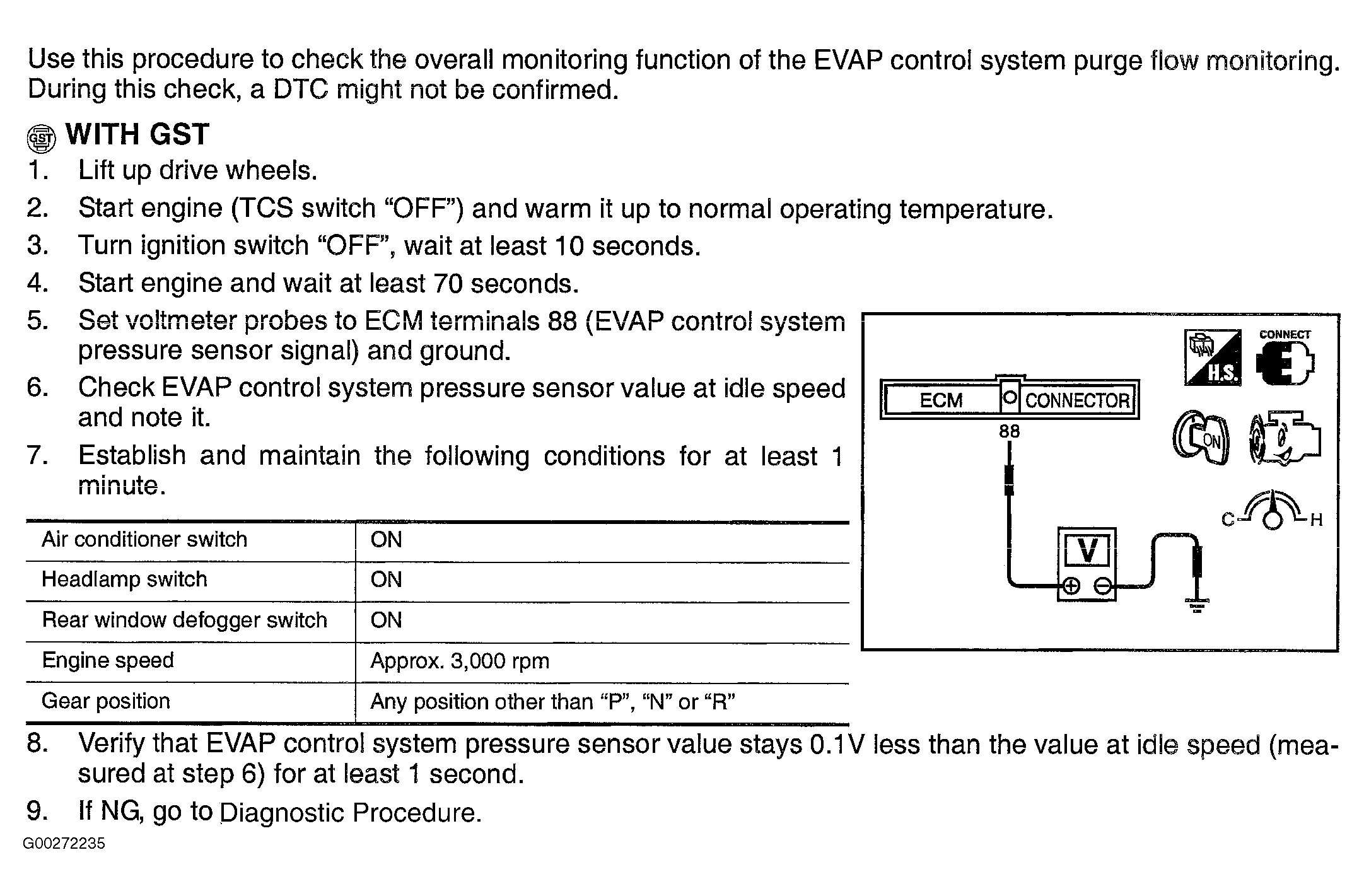

Fig 1: DTC P0441 Overall Function Check

G00272235

Courtesy of NISSAN MOTOR CO., U.S.A.
