Home >> Nissan-Datsun >> 2003 >> Sentra SE-R, Standard >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Controls - Self-Diagnostics (Qr25DE) >> Diagnostic Tests >> DTC P0182: Fuel Tank Temperature Sensor Circuit Low Input & DTC P0183: Fuel Tank Temperature Sensor Circuit High Input >> Diagnostic Procedure

Diagnostic Procedure

For diagnostic procedure, see Fig 1 .

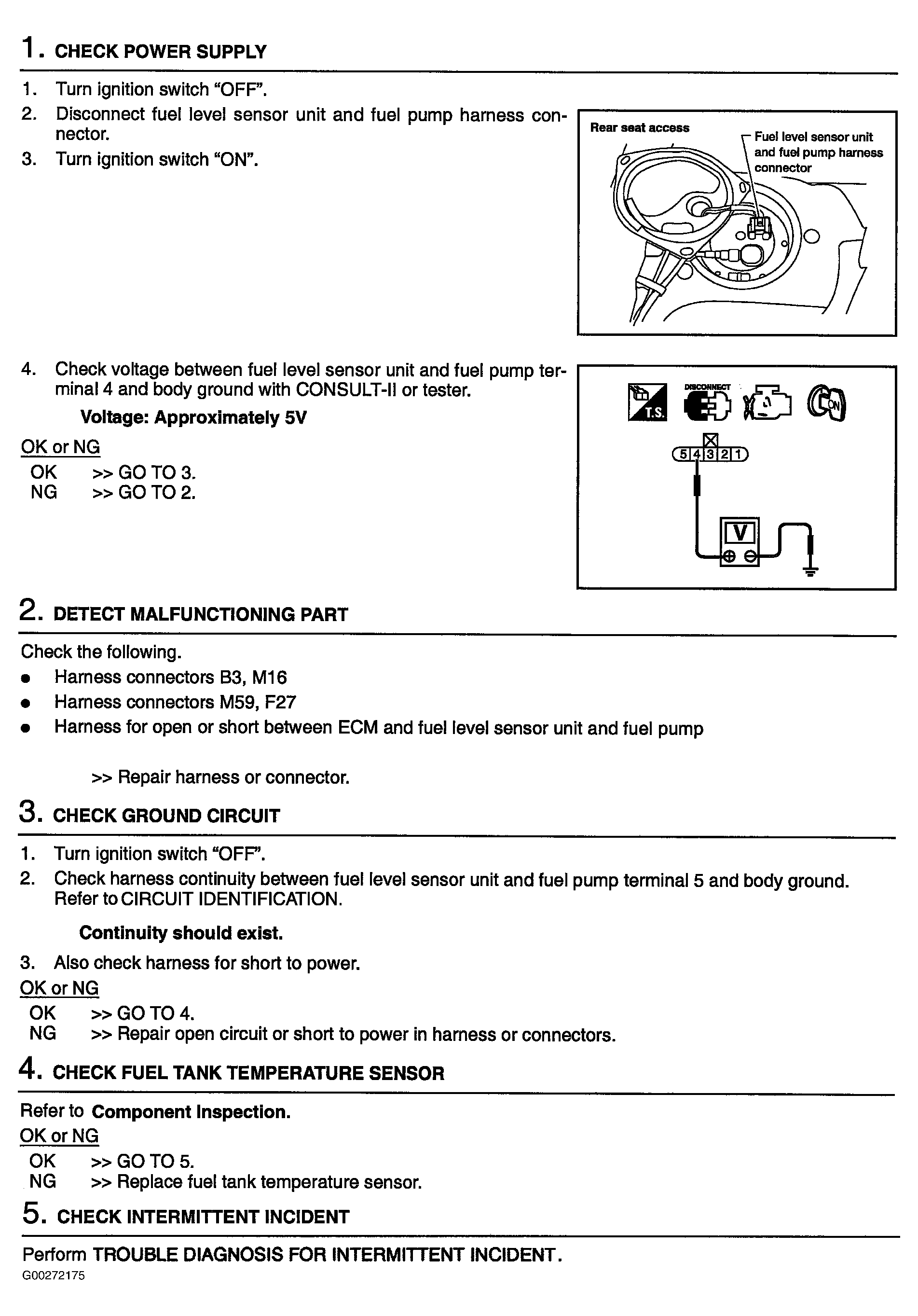

Fig 1: DTCs P0182 & P0183 Diagnostic Procedure
G00272175Courtesy of NISSAN MOTOR CO., U.S.A.
