Component Inspection

For component inspection, see Fig 1 .

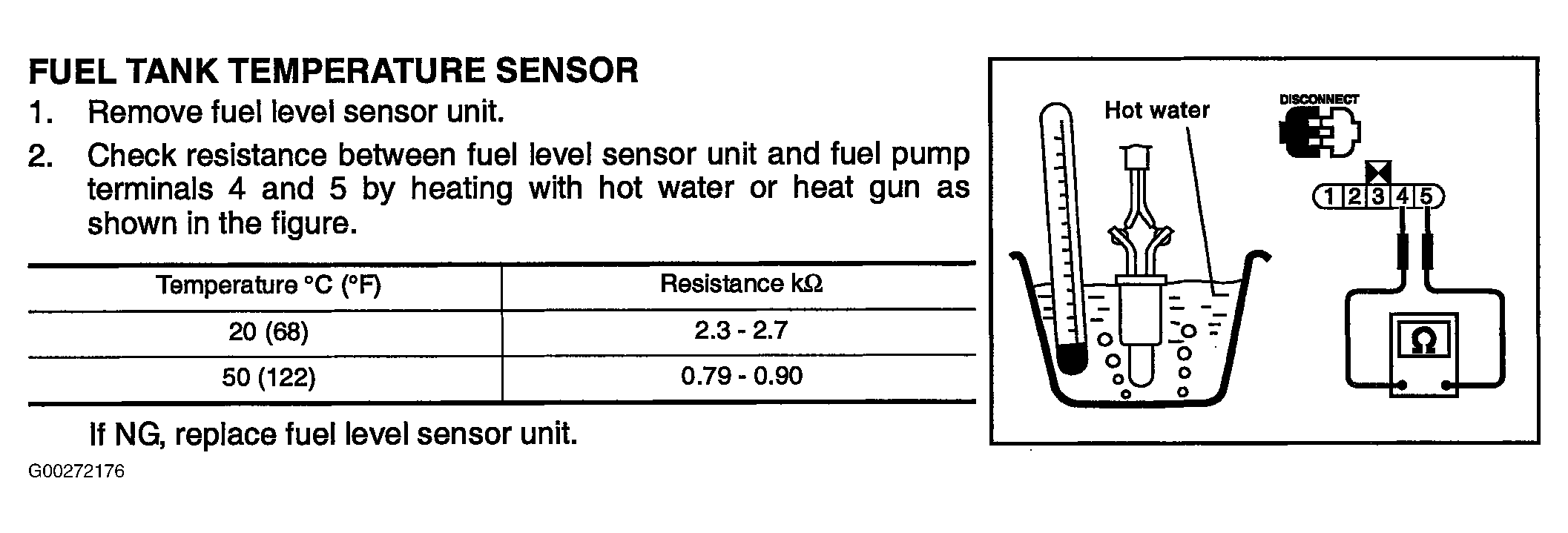

Fig 1: DTCs P0182 & P0183 Component Inspection
G00272176Courtesy of NISSAN MOTOR CO., U.S.A.
