Circuit Identification

For circuit identification, see Fig 1 .

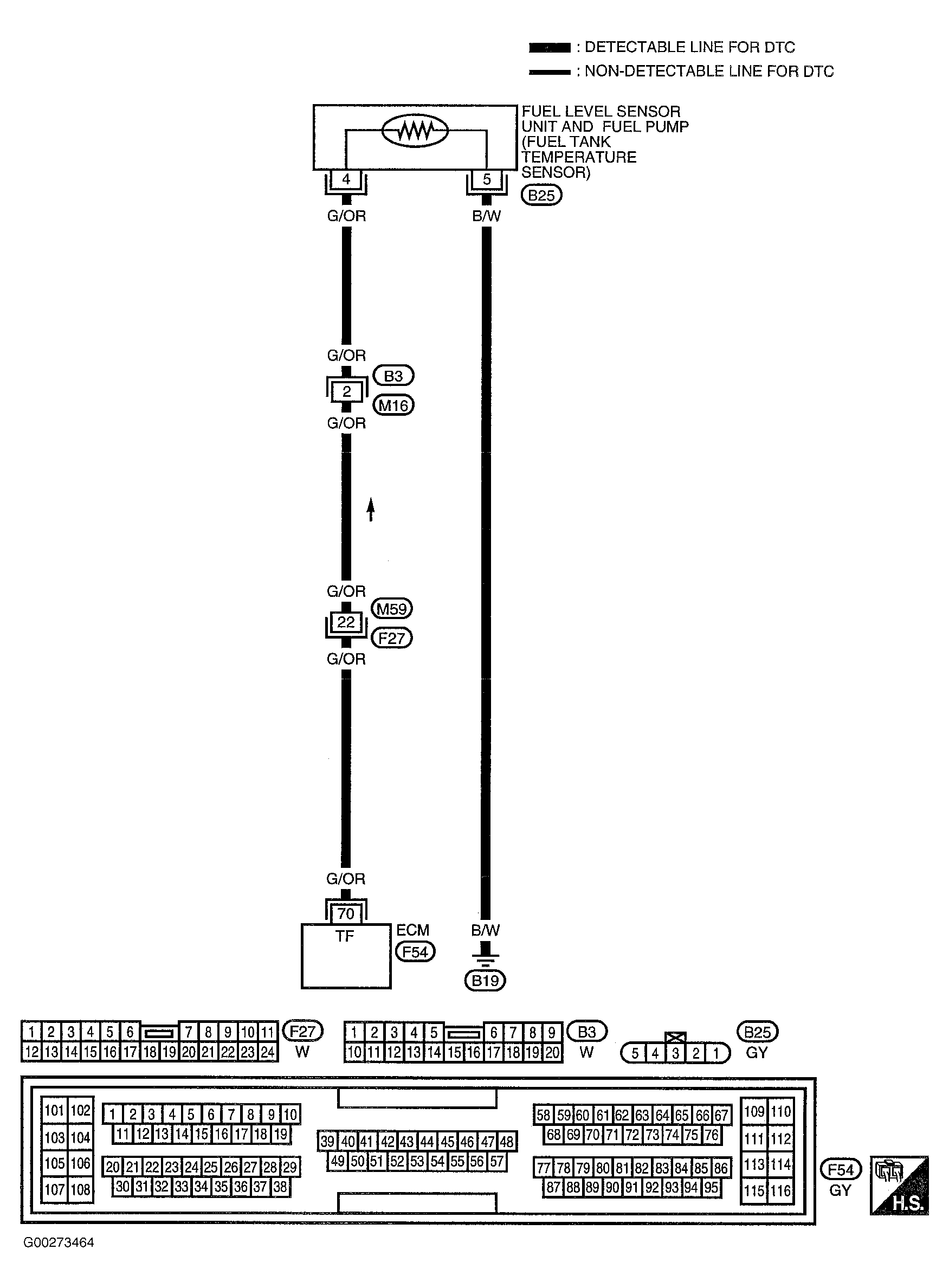

Fig 1: DTCs P0182 & P0183 Fuel Tank Temperature (FTT) Sensor Circuit Diagram

G00273464

Courtesy of NISSAN MOTOR CO., U.S.A.
