DTC P0122: Throttle Position Sensor 2 Circuit Low Input & DTC P0123: Throttle Position Sensor 2 Circuit High Input: Description

For system description, see Fig 1 .

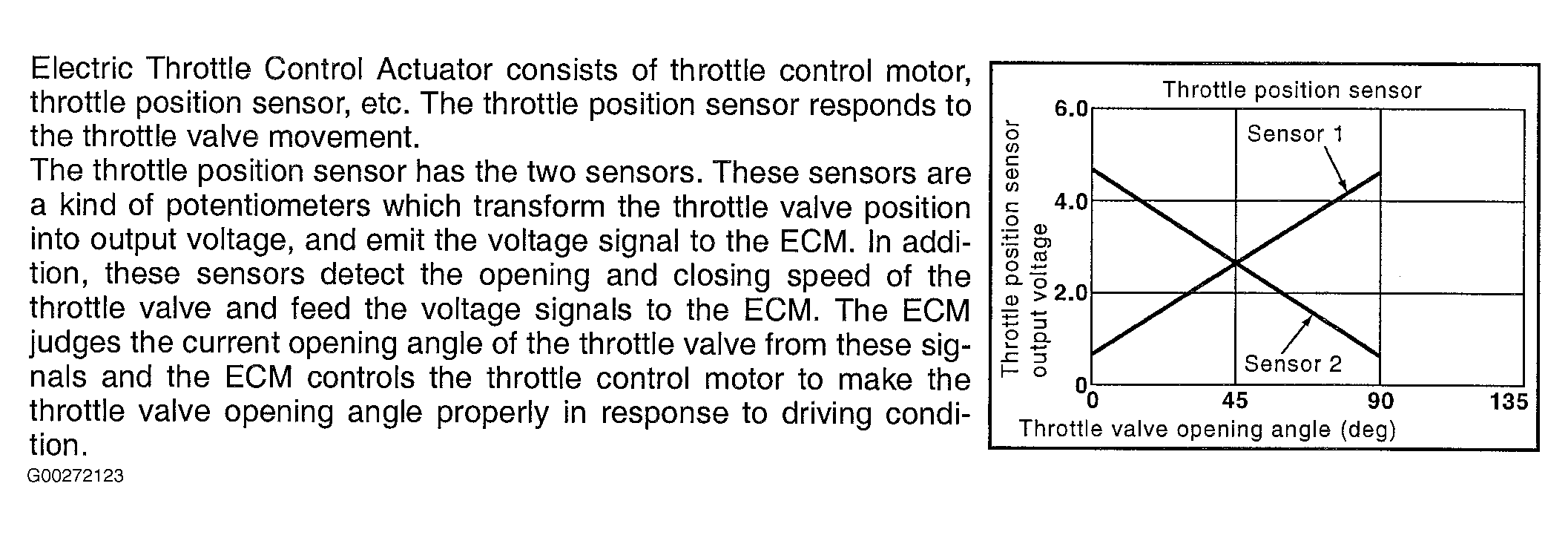

Fig 1: DTCs P0122 & P0123 System Description
G00272123Courtesy of NISSAN MOTOR CO., U.S.A.
